Running CPE Tests
54 AXS-200/630
Saving Results
ATM Loopback Test

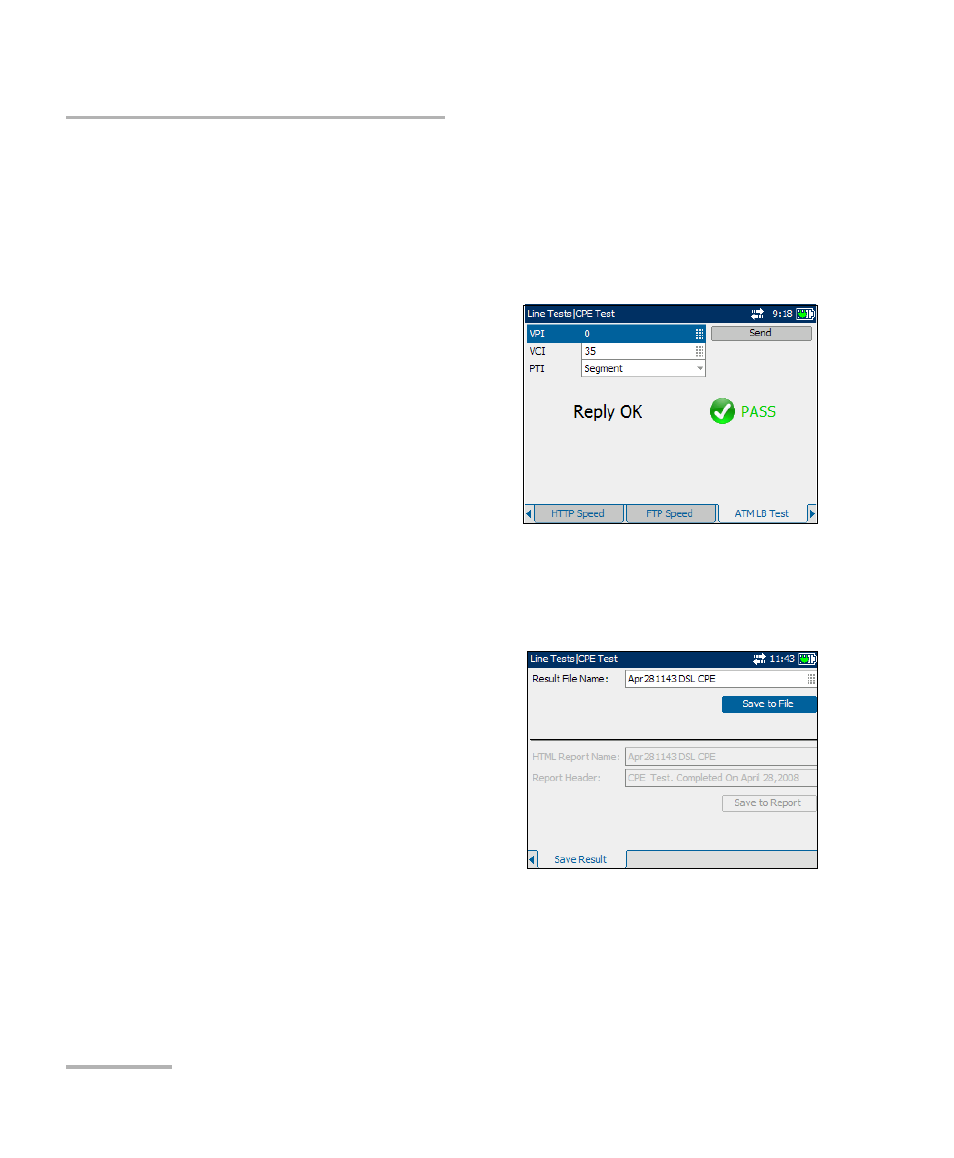

The ATMLB Test tab allows you to view the ATM loopback connection
value results of the VPI (virtual path identifier) and VCI (virtual circuit
identifier), and the PTI (payload type identifier) which is either
End-To-End or Segment.
If the unit is not connected to the
network or the time-out setup value is
low, you may see the Timeout
message continuously.
Send button starts the ATM loopback
test.
Saving Results
Save Result
The Save Result tab allows you to save your test results to a file or to an
HTML report.
Each entry on the pane is described
below:
³
Result File Name is the current
date and time stamp plus you can
enter any filename.
Save to File button saves the file in
memory.
³
HTML Report Name is the current
date and time stamp plus you can enter any name for the HTML file.
³
Report Header is where you can enter any comment. The initial value
is the current test followed by the date and time stamp.
Save to Report button saves the results to the HTML report.
