Install components to pc board start here – Elenco Deluxe Digital / Analog Trainer with Tools Kit Version User Manual
Page 6
-5-

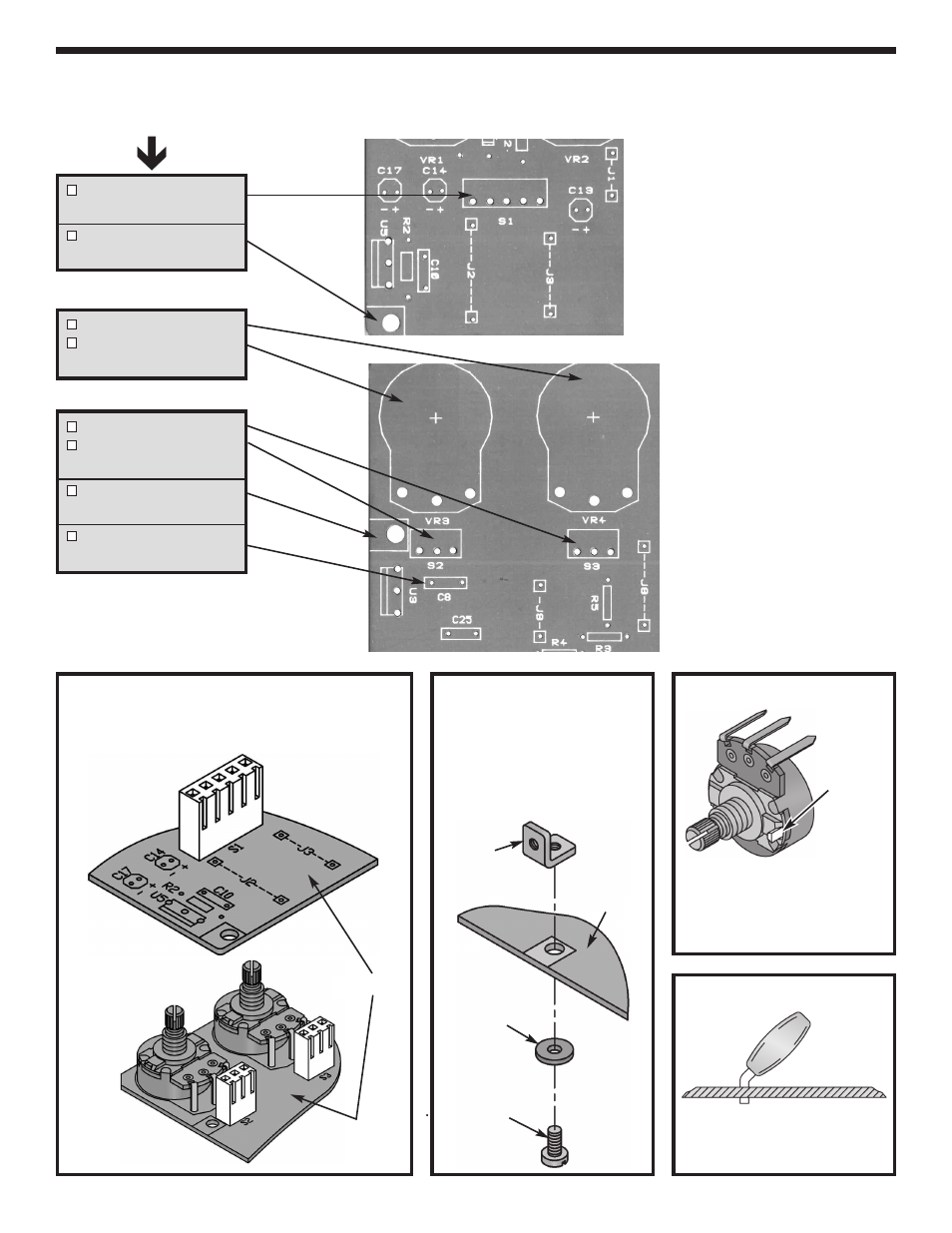

INSTALL COMPONENTS TO PC BOARD
Start Here
S1 - 5-pin connector
(see Figure A)
L-bracket
(see Figure B)
VR4 - 100k
W
pot
VR3 - 1k
W
pot
(see Figure C)
S3 - 3-pin connector
S2 - 3-pin connector
(see Figure A)
L-bracket
(see Figure B)
C8 - 0.1
m
F mylar (104)
(see Figure D)
Bottom left corner of PC board
Top left corner of PC board
Figure C
Mount down flush with PC board. The
value may be marked on the on the
back side of pot.
Cut off excess lead length after
soldering.
Figure B
Note: One side of the bracket
is longer. Mount this side to
the PC board. Mount the
bracket to the top legend side
of the PC board with a 4-40 x
1/4” screw and fiber washer.
Figure A
Mount the connector as shown and solder the
pins of the connector.
Figure D
Bend the capacitor at a 45
O
angle before soldering. Cut off
excess leads.
Cut off tab
4-40 x 1/4”
Screw
Top legend
side of
PC board
Fiber
washer
Bracket
PC board
