IP025-001 V3
IBL Lift Series Installation
07/05 Thor/Sales Info/Installation Materials/IBL Lift 5
CONTROL SETTINGS
Prior to the physical installation, you must perform the following steps:
1. Be sure that there is no power attached when setting the DIP switches.
2. Set the DIP switches on the control box before you install the lift in the ceiling.
Refer to the chart below for proper configurations.

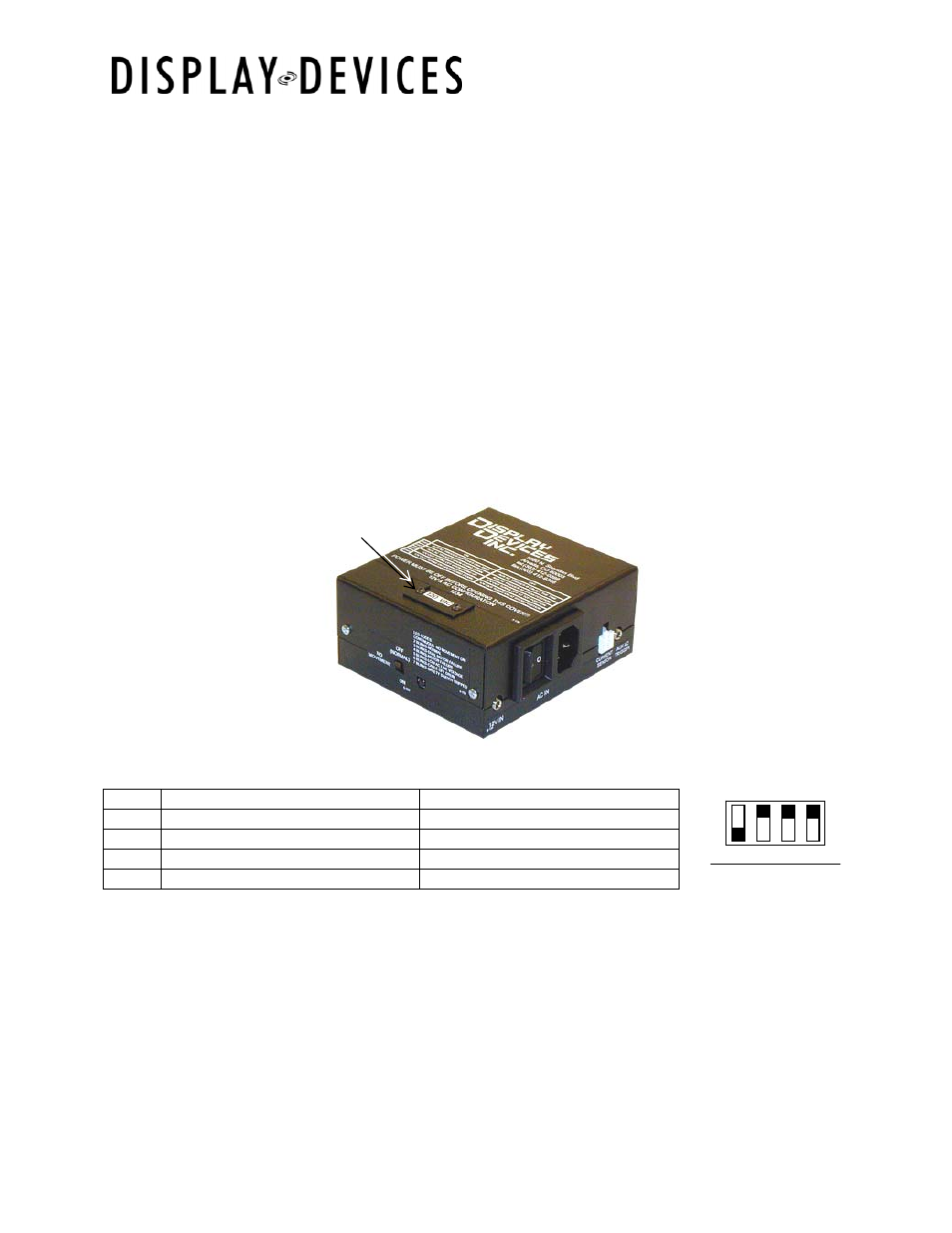

3. Dip switches are located under the small access panel on the Control Box
attached to the lift frame. Use a 1/16” hex drive to open.
4. Set the 12-volt trigger and AC Trigger based on your system design.
ON OFF
SW1 Aux AC Trigger (see SW2 below) Aux AC Trigger is on all the time
SW2 Aux AC Trigger upon going down Aux AC Trigger at show position
SW3 12V out turns off upon going up 12V out turns off at top position
SW4 12V out turns on upon going down 12V out turns on at show position
NOTE: Dip Switch SW1: configuration only works in automatic mode.
1 2 3 4
OFF
ON
Edge of Control Box
AC Configuration
DIP Switches
