Display Devices SE-B Series Projector Sound Enclosure User Manual
Display Devices Projectors

Sound Enclosure Lower Cavity Reversal
6/7/2005
1
In the following procedure, certain steps require two people.
Required tools:
7/16” box or socket wrench
11/32” nut driver or socket wrench
(2)
Needle-nose
vice
grips
1. Place a packing blanket or cardboard on the floor to prevent scratching the
exterior of the enclosure.
2. Tilt the enclosure over on its flat side. The intake and exhaust ports should not
be on the floor.

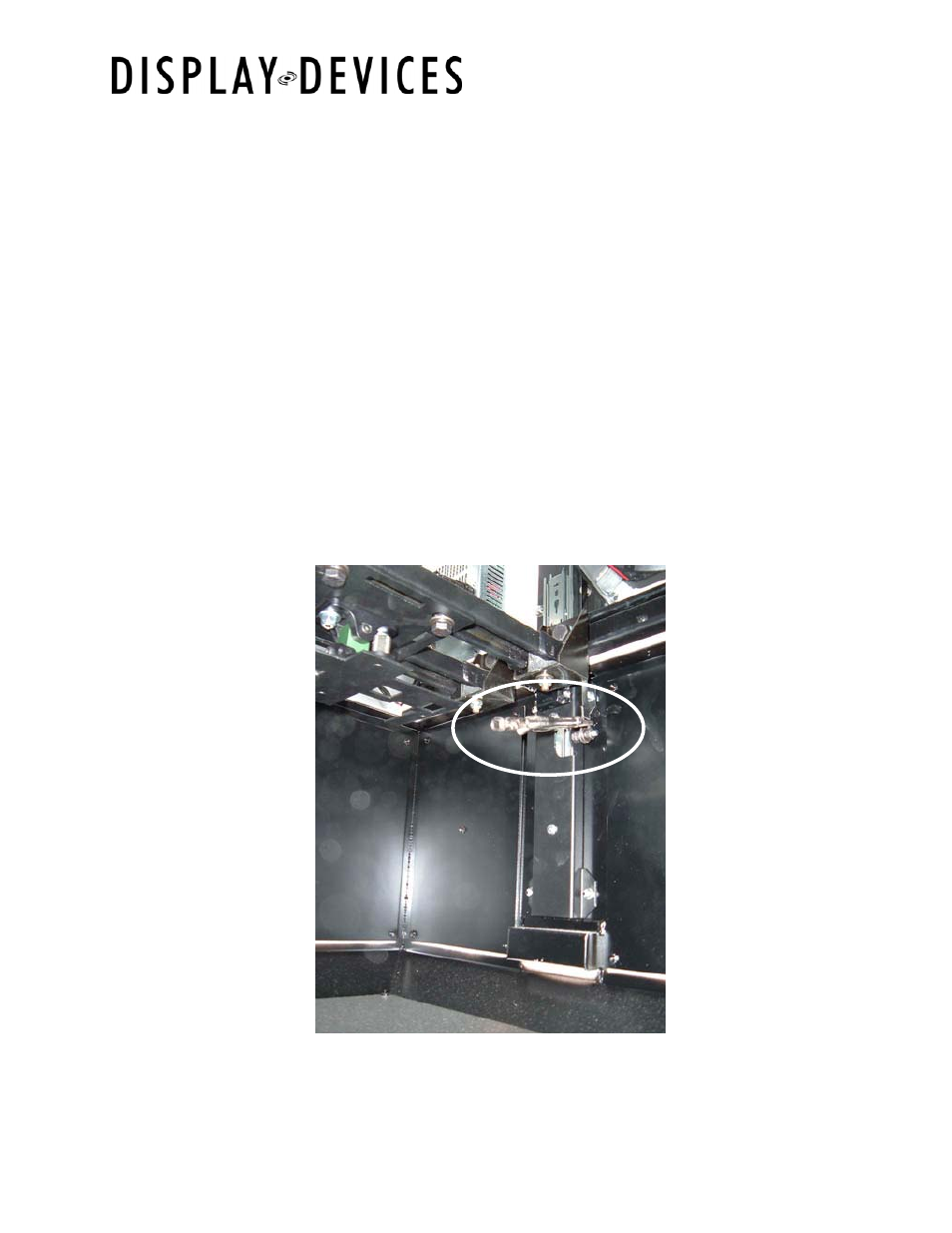

3. Reaching in through the projection port, attach and lock a needle nose vice grips
to the (2) spring ends. Remove the 7/16” nut and washer. Carefully lift the
spring hook off the bolt and let it slowly retract. Leave the vice grips on the
spring end to prevent it from retracting into the spring housing. Do this for both
left and right springs.
