Projector Mounting

1.)

The lift is shipped with the projector mounting adapter attached. Remove it from
the lower frame of the lift, if you have not already done so.

2.)

Invert your projector and attach the mounting adapter to the bottom of the

projector with the proper hardware.

3.)

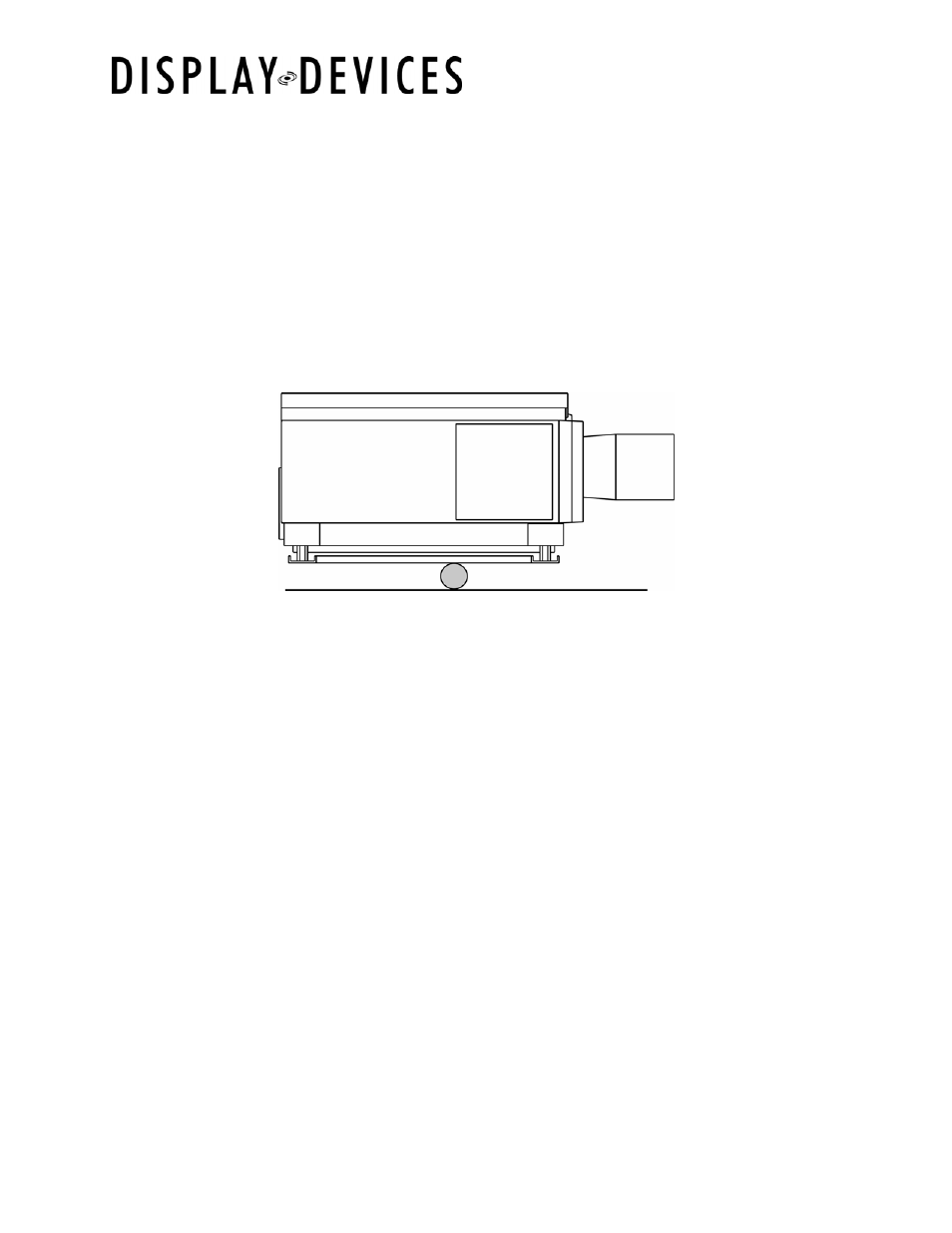

Find the projector’s center of gravity using a dowel.

4.) Attach

the

adapter to the lift with the projector’s center of gravity under the

vertical wire rope of the lift. Use the enclosed ¼”-20 hardware.

Cabling the Lift

The IBL Series lifts accommodates a limited number of cables. We recommend
Extron

Superflex Mini HR cable.

Caution

Using large diameter RGB and other

signal and / or control cable is not recommended on Display Devices lifts.

Large, bulky cables have too large of a bend radius to allow them to fit in the cable
management clips mounted on the scissor assembly.
