Display Devices Lifts up up 35 lbs User Manual
Page 11

IP025-001 V3
IBL Lift Series Installation
07/05
Thor/Sales Info/Installation Materials/IBL Lift
11
Lift Connections / Connecting Power
1.)
Verify voltage at the outlet/power source for the projector/lift. You can now
connect the lift’s power cord to a properly rated electrical circuit in the ceiling
near the lift.
2.)
Plug the remote control unit cable into either of the two 9 pin control remote
ports on the side of the control box.
3.)
Tighten the cable clamps / strain relief connectors, if required.
4.)

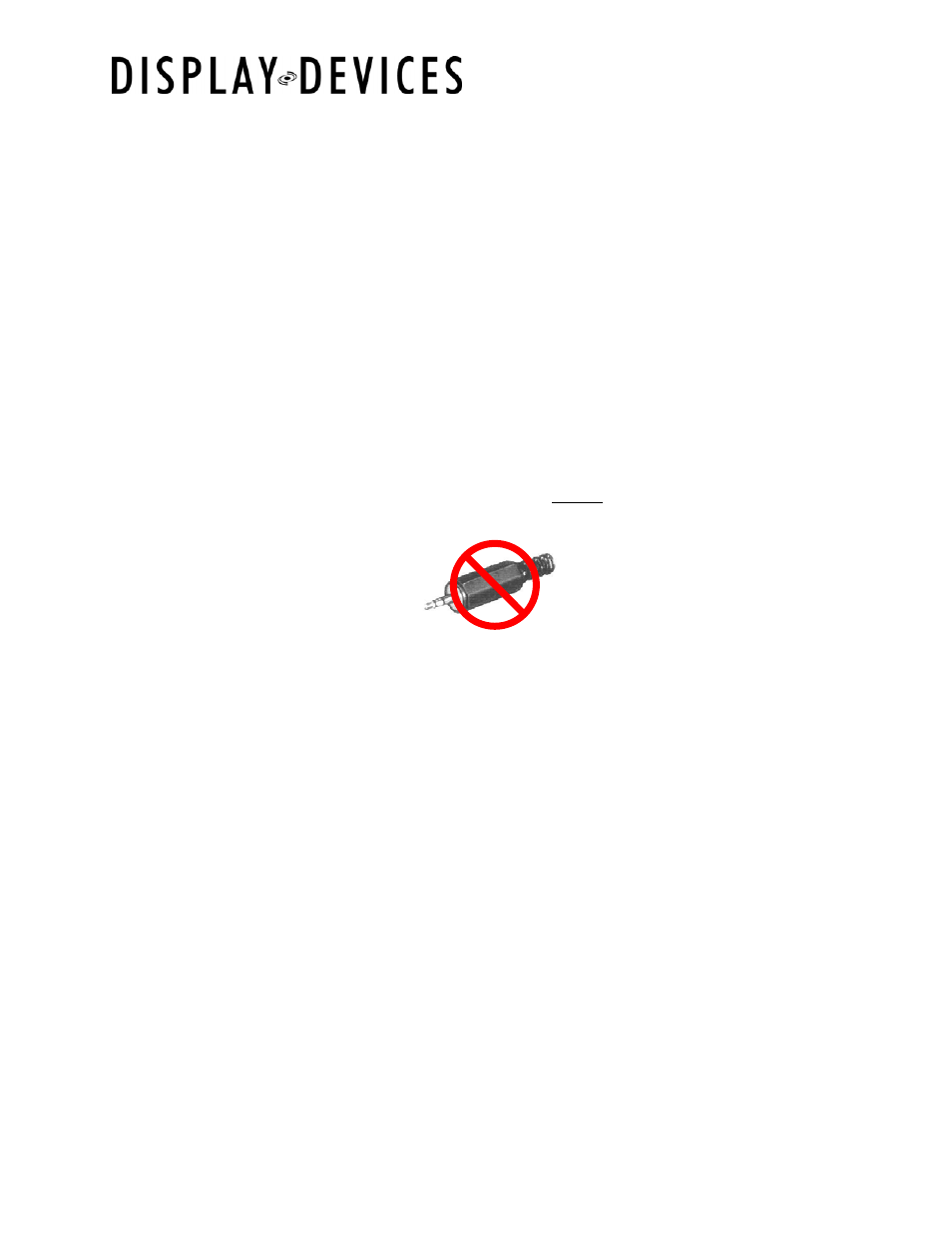

If using the 12V trigger and/or AC Trigger, plug in the provided 1/8” mono mini
plug on the sides of the control box at this time. Be sure the cable won’t
interfere with the lift mechanics. Do not use a stereo mini connector (Tip / Ring /
Sleeve).
Be sure the cables will not sag into the lift mechanism during its operation.
5.)
You are now ready to cut the tie. Be sure to remove all tie wraps on both sides
of the lift.
6.)
After following these precautions, you are now ready to turn on the power switch
on the lift control box.
7.)
On the side of the control box, you will find the small black switch labeled NO
MOVEMENT. The lift is shipped from the factory with the NO MOVEMENT switch
in the ON position.
8.)
Flip the NO MOVEMENT switch to the OFF position. The LED will then blink twice.
If the NO MOVEMENT switch is on, the STATUS LED on the control box and the
remote control will be on solid, not blinking.
9.)
Remove the two galvanized metal shipping brackets between the lower and
upper frames on the front and rear of the lift.
