DES-3226 NWay Standalone Fast Ethernet Switch User’s Guide
Dynamic Group Registration Table
To view the Dynamic Group Registration Table, highlight Dynamic Group Registration Table on the
Network Monitoring Menu and press Enter.

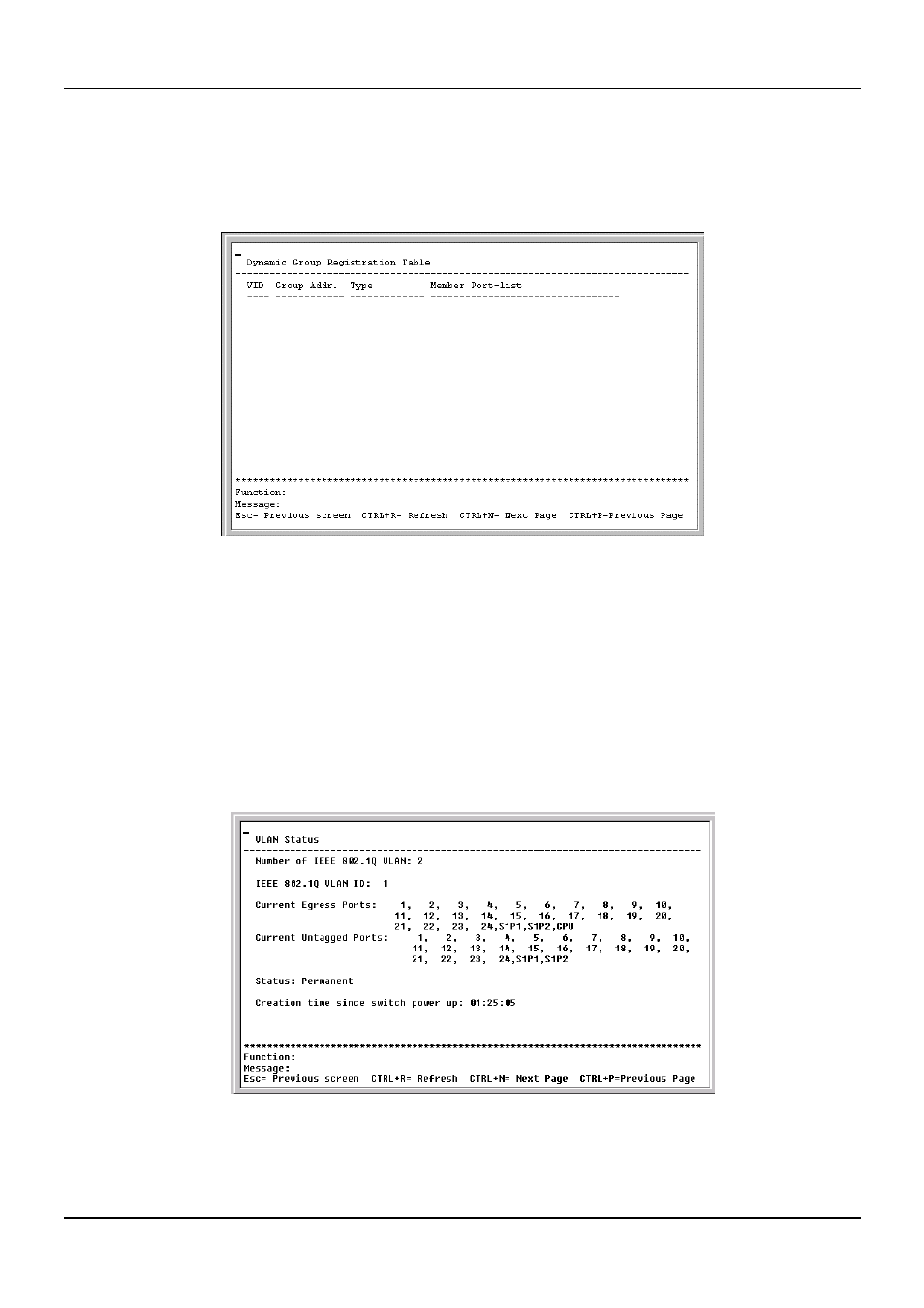

Figure 6-57. Dynamic Group Registration Table screen
This read-only table contains filtering information for VLANs configured into the bridge by (local or
network) management, or learned dynamically, specifying the set of ports to which frames received on a
VLAN for this FDB and containing a specific Group destination address are allowed to be forwarded.
VLAN Status
This allows the status for each of the switch’s VLANs to be viewed.
To view the VLAN Status table, highlight VLAN Status on the Network Monitoring Menu and press
Enter.
Figure 6-58. VLAN Status screen
78
