DES-3226 NWay Standalone Fast Ethernet Switch User’s Guide
Configure Authenticator

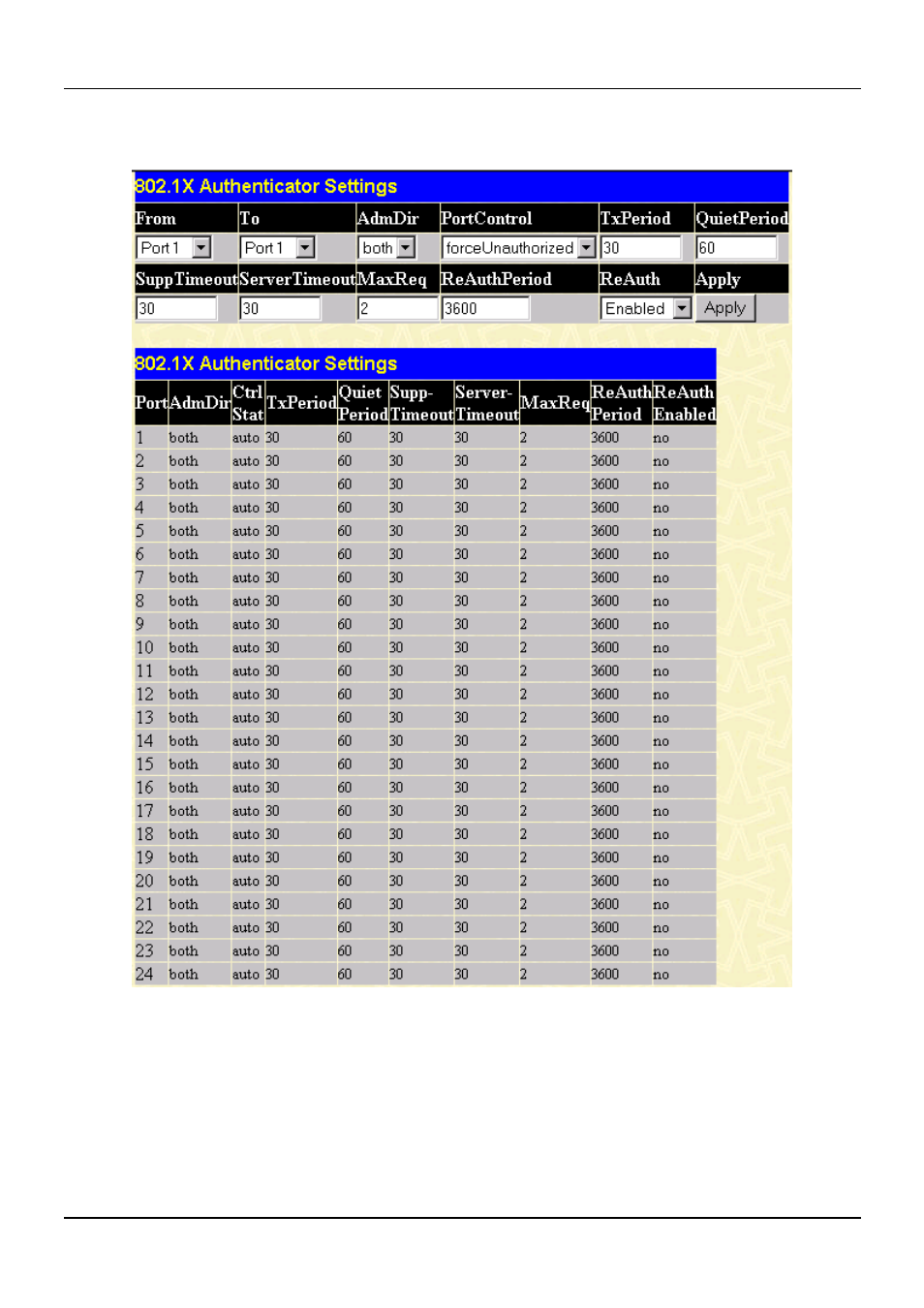

Figure 7-24. 802.1X Authenticator Settings window
This window allows you to set the following features:
• From [ ] To [ ] – Enter the port or ports to be set.
• AdmDir [both] – Sets the administrative-controlled direction to either in or both. If in is selected,
control is only exerted over incoming traffic through the port you selected in the first field. If both is
selected, control is exerted over both incoming and outgoing traffic through the controlled port
selected in the first field.
113
