www.austin-hughes.com UM-IGM-03-Q314V1 P.27

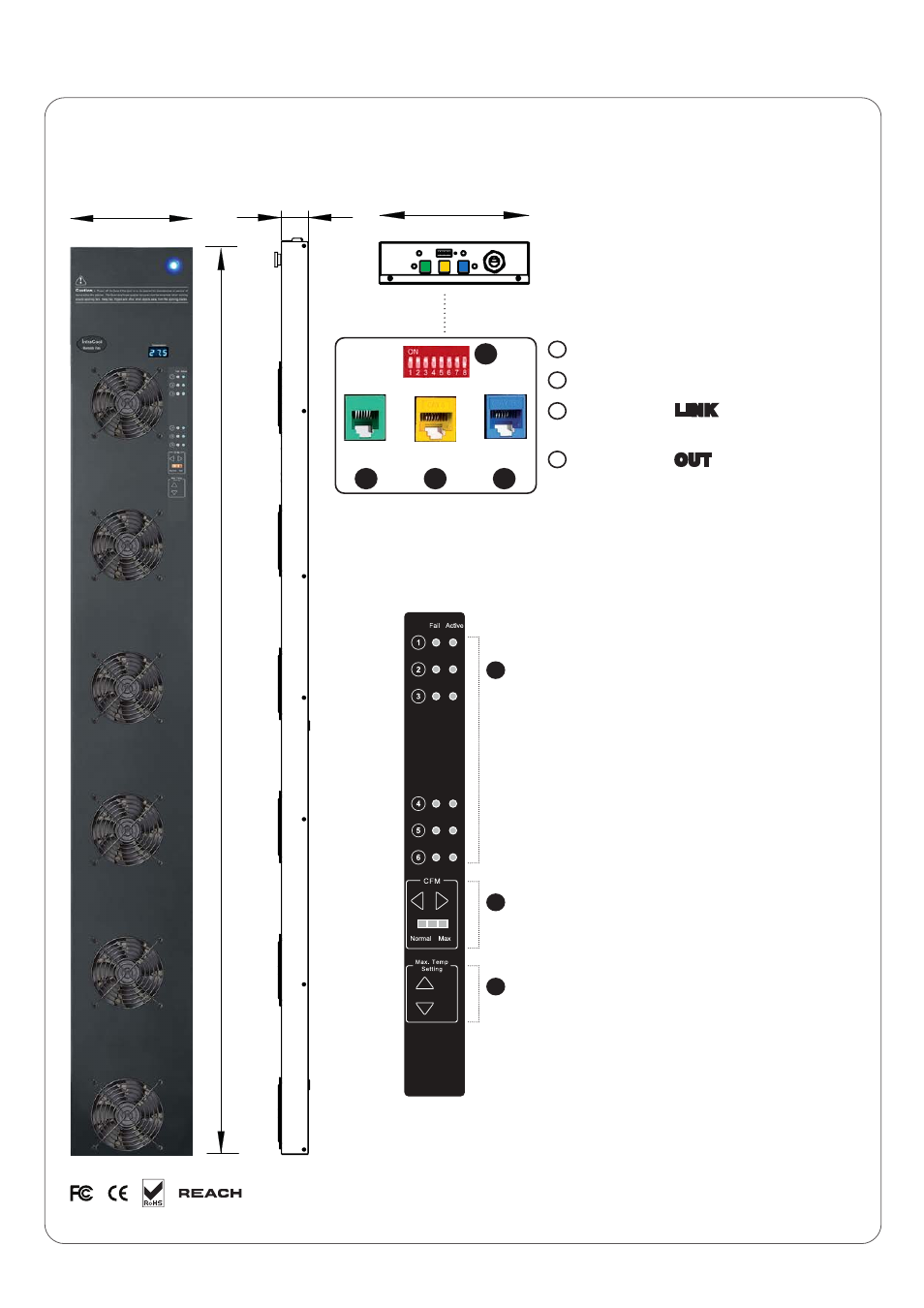

Model : RF-33.6 33U Door Mount Fan Panel with 6 fans
1
2
3
- Unit CFM Status LED
- Unit CFM ( fan speed ) Setting
-
Individual fan status
- Individual fan On / Off buttons
- Buttons for
Alarm Temp. Setting
4
5
6
- DIP switch for daisy chain level setting
- Temp. port bundled w/ a temp. sensor
- Daisy chain
L I N K
port for connecting
to the out port of the last level fan unit
- Daisy chain
O U T
port for connecting
to the link port of the next level fan unit
7
5 6 7
TEMP LINK OUT
4
Side View
42.9 mm 195 mm
Front View
195 mm
Top View
1466 mm
< 3.2 > Fan Unit
