Using the dip switch no. 1, 2, 3, & 4 to setup each EC box level level as below :
Cascaded EC boxes
Dip switch no.
1
2
3
4
5
6
7
8
1st level
Master
EC box
On
On
On
On
Off
Off
Off
Off
2nd level Slave EC box
Off
On
On
On
Off
Off
Off
Off
3rd level Slave EC box
On
Off
On
On
Off
Off
Off
Off
4th level Slave EC box
Off
Off
On
On
Off
Off
Off
Off
5th level Slave EC box
On
On
Off
On
Off
Off
Off
Off
6th level Slave EC box
Off
On
Off
On
Off
Off
Off
Off
7th level Slave EC box
On
Off
Off
On
Off
Off
Off
Off
8th level Slave EC box
Off
Off
Off
On
Off
Off
Off
Off
9th level Slave EC box
On
On
On
Off
Off
Off
Off
Off
10th level Slave EC box
Off
On
On
Off
Off
Off
Off
Off
11th level Slave EC box
On
Off
On
Off
Off
Off
Off
Off
12th level Slave EC box
Off
Off
On
Off
Off
Off
Off
Off
13th level Slave EC box
On
On
Off
Off
Off
Off
Off
Off
14th level Slave EC box
Off
On
Off
Off
Off
Off
Off
Off
15th level Slave EC box
On
Off
Off
Off
Off
Off
Off
Off
16th level Slave EC box
Off
Off
Off
Off
Off
Off
Off
Off

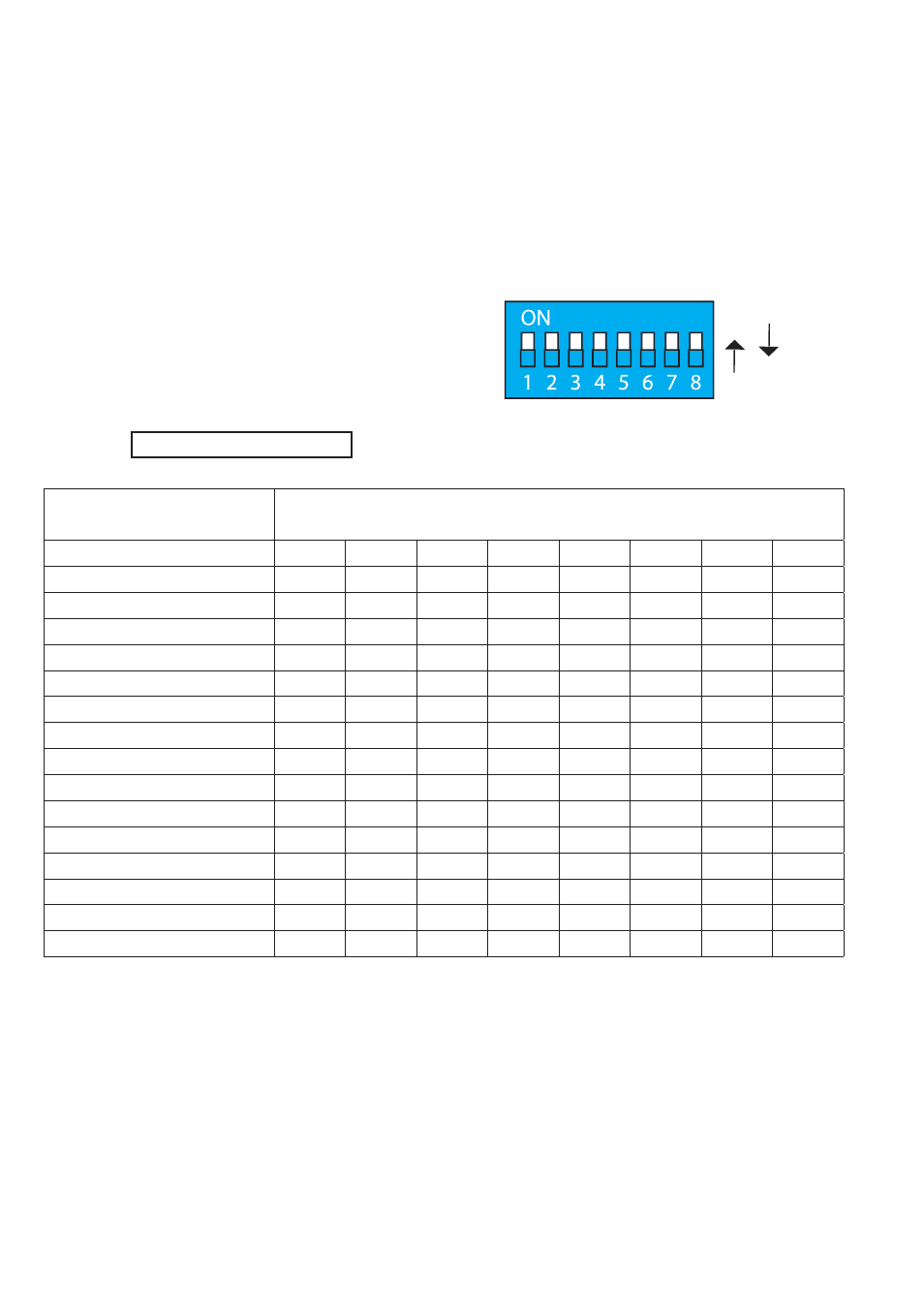

Daisy chain level setting
ON
OFF
** No. 5, 6, 7 & 8 dip switch reserved
Steps :
■
Only
Master EC Box
built-in IP remote access module.
■
Master EC Box
MUST be set on the 1st daisy chain level according to the table below.
■
For the 2nd - 16th levels ( slave EC box ), please make the level setting according to the table below.
■
For the cabling connection, please refer to the next page.
< 1.5 > EC Box Level Setting
