www.austin-hughes.com UM-IGM-03-Q314V1 P.7
Remarks :
■
Each Master IP group supports 16 daisy chain levels.
■
The 1st level EC box must be
Master EC box.
■
1 x Master EC box allows access to 16 levels.
■
For remote access of EC boxes, simply connect 1 x Master EC box.
■
The 2nd - 16th level EC boxes must be slave EC box.
LAN OUT
Cat5 / 6 cable
max. 20 meters
Cat5 / 6 cable
max. 20 meters
To LINK port of next
level slave EC box
(max level: 16)
LINK OUT LINK OUT
To Network Device
for IP Access via WAN
1st level
Master EC box
3rd level
Slave EC box
2nd level
Slave EC box

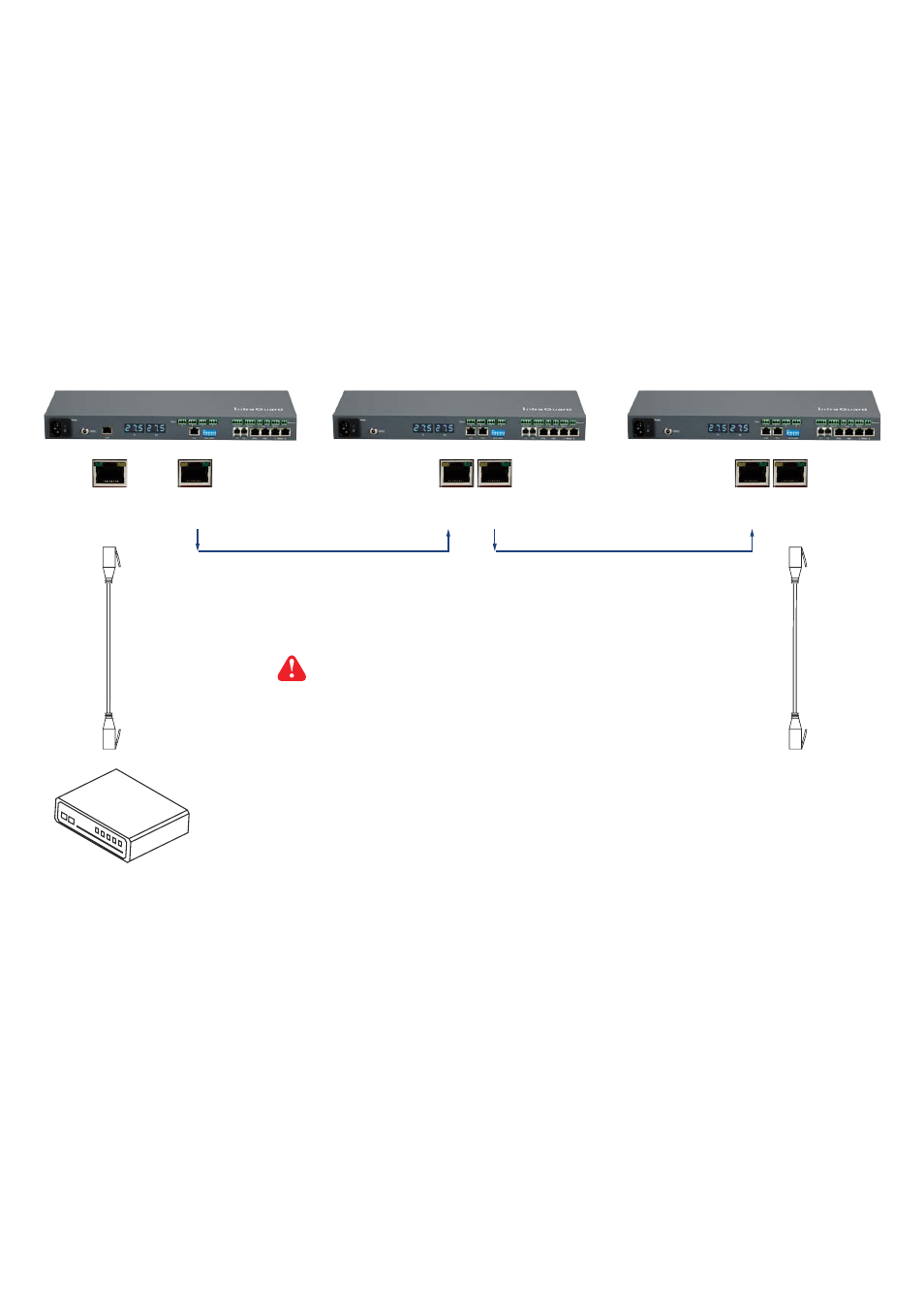

< 1.6 > EC Box Daisy Chain
Max. distance in a daisy chain group up to 300M
