www.austin-hughes.com UM-IGM-03-Q314V1 P.11
Side View
Front View

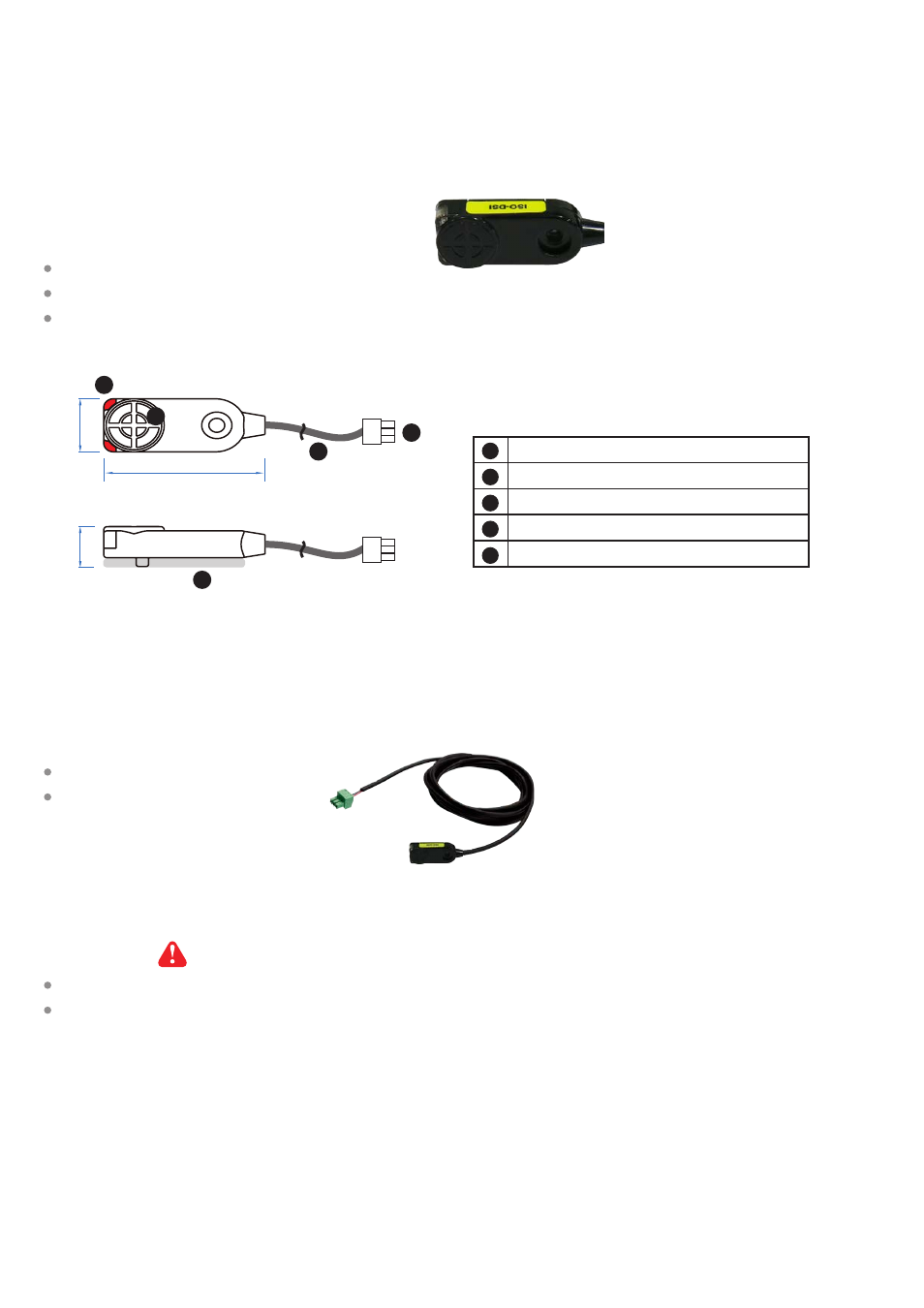

Inductive Door Sensor, pair ( IG-DSI-2M )
Features
Requirements
Package content
light weight / adhesive
mini size ( 32.5 x 12.2 x 9.2 mm )
no custom cutting required on door
cabinet frame made of ferrous metal ( iron )
sensing distance 3mm
Inductive sensor w/ 2m cable x 2
2mm adhesive tape x 6
Optional door sensor is an essential accessories as users can be alerted by visual and audio alarm for
unauthorized access.
< 2.2 > Door Sensor
9.2 mm
32.5 mm
12.2 mm
1
2
3
5
4
Sensor area
Red LED ( light up while door opening )
2m cable
Cable jack ( connect to EC box )
2mm adhesive tape
2
3
4
5
1
