< 3.2 > Fan Unit

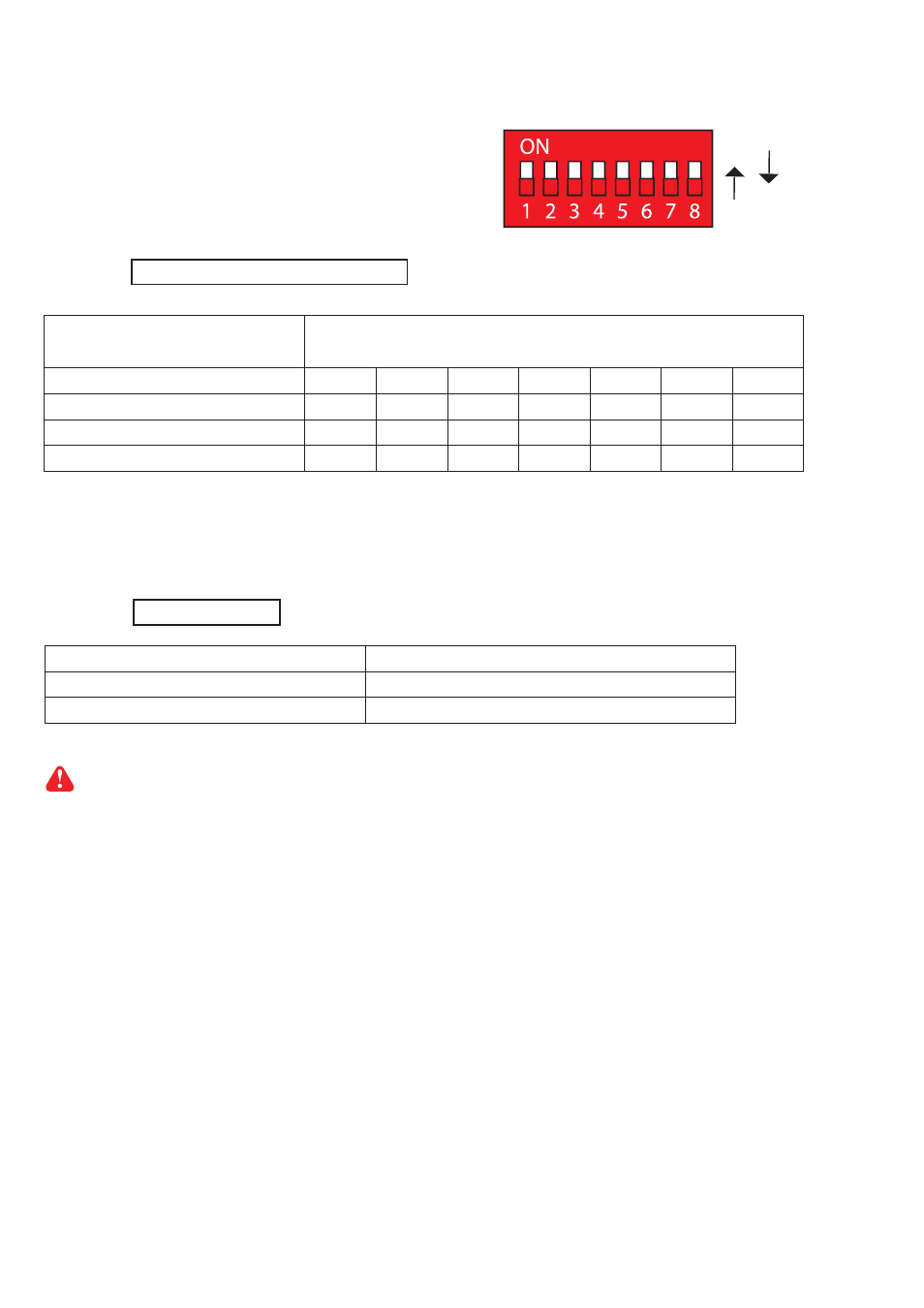

Using the dip switch no. 1, 2, 3, 4, 5, 6 & 8 to setup each FAN unit level as below :
Cascaded FAN units
Dip switch no.
1
2
3
4
5
6
8
1st level Fan Unit Model
On
On
On
On
On
On
Off
2nd level Fan Unit Model
Off
On
On
On
On
On
Off
3rd level Fan Unit Model
On
Off
On
On
On
On
Off
4th level Fan Unit Model
Off
Off
On
On
On
On
Off
Fan unit level setting :
ON
OFF
** No. 7 dip switch only for audio alarm setting
Dip switch 7
Enable
On
Disable
Off
Using the dip switch no. 7 to setup each FAN unit audio alarm as below :
If enable the audio alarm, the buzzer will sound when the outside temperature is over the preset alarm
temperature.
