P.10

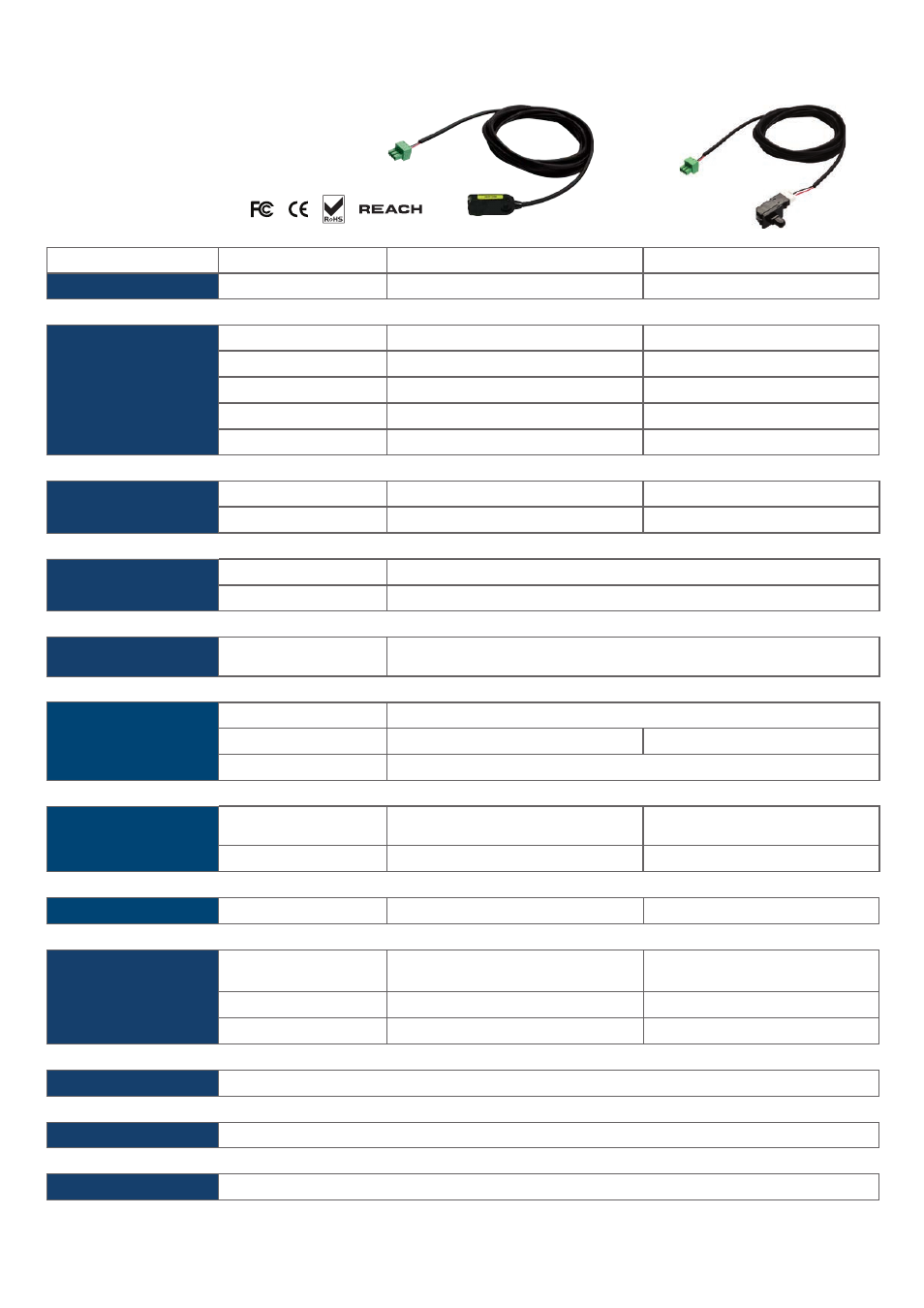

Inductive Door Sensor
Mechanical Door Sensor
Part no.
IG-DSI-2M
IG-DSW-2M
Sensitivity
Actuation
/
3.00 mm
Travelling Distance
/
9.25 mm
Operating Force
/
3.5±1 N
Sensing distance
Max. 3mm
/
Sensing object
Ferrous metal
/
Power Requirement
Voltage
12VDC, powered by sensor port
/
Current Consumption
100mA
/
Housing
Material
Plastic
Color
Black
Connection
Cable Length
sensor w/ 2m cable ( standard )
sensor w/ 4m cable ( option )
Environmental
Operating
-20 to 60°C Degree
Storage
-20 to 60°C Degree
-30 to 70°C Degree
Relative Humidity
5~90%, non-condensing
Dimensions
Product
32.5L x 12.2W x 9.2H mm
52W x 22.5L mm
( with metal plate )
Packing
/
/
Weight
Net / Gross
6g
14g ( with metal plate )
Supply includes
1
Inductive door sensor
with 2m cable
Mechanical door sensor
2
2mm Adhesive tape
Metal plate
3
/
2m cable
Compatibility
InfraGuard only
Safety Regulatory
FCC & CE certified
Environmental
RoHS2 & REACH compliant
< 2.2 > Door Sensor
