Austin Hughes IGM-03 - Manual (Page 19)

www.austin-hughes.com UM-IGM-03-Q314V1
P.14

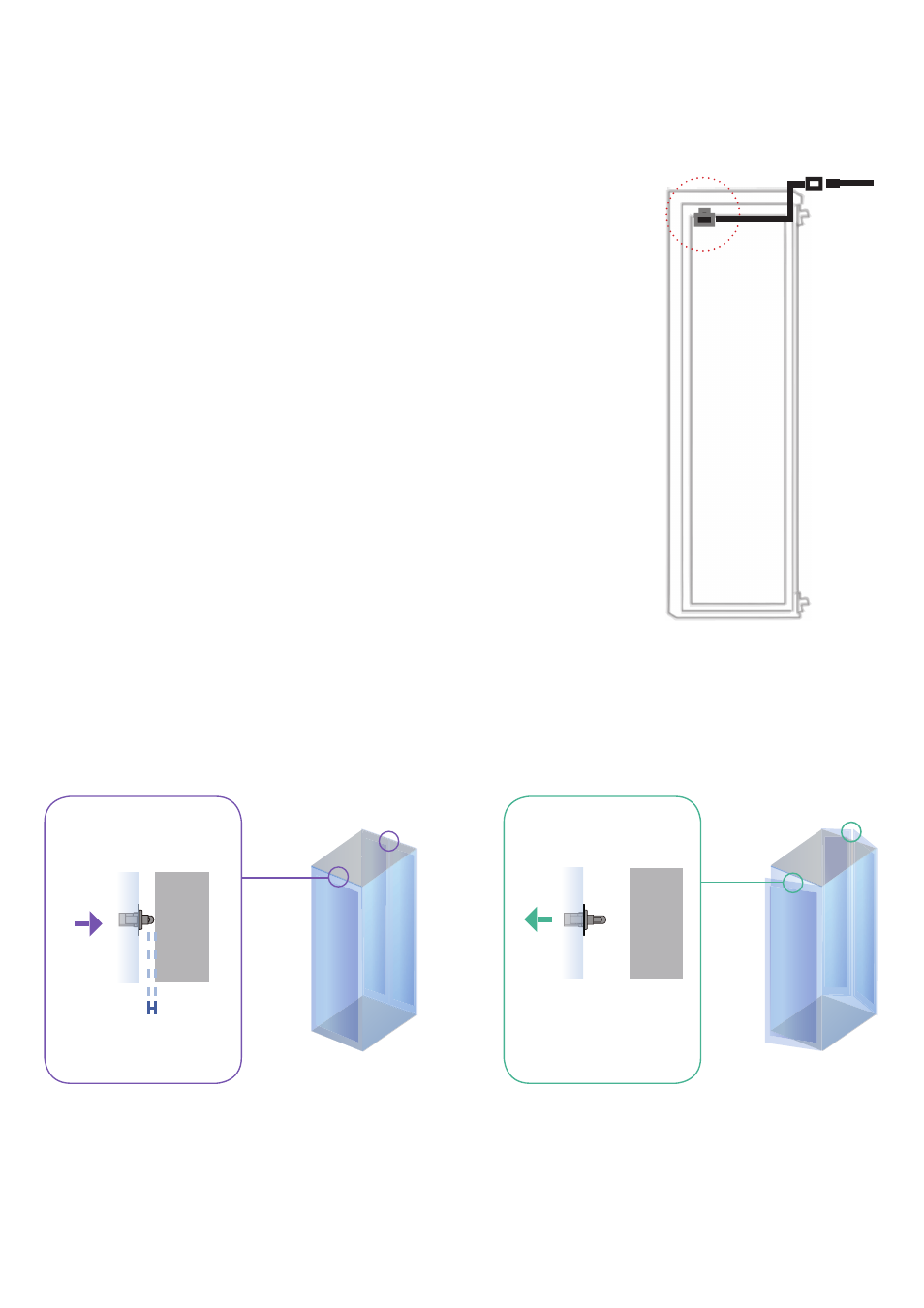

Sensor Operation
DOOR CLOSE
- close door
- Sensor button is pressed on
- DOOR CLOSE SIGNAL sends out
DOOR OPEN
- open door
- Sensor button is released
- DOOR OPEN SIGNAL sends out
CLOSED
Cabinet
frame
Door
frame
Physical touch required
OPENED
Button released
Cabinet
frame
Door
frame
Installation steps
- connect to the EC box
- place the sensor at the top middle of the door
- install the sensor in the custom hole
- secure it with bundled mounting screws 6#32x4.5mm x 2
Actuation distance > 3mm
Suggested
sensor position to EC box
< 2.2 > Door Sensor
