Chapter 2 Product Overview
16 Reference Manual CoreModule 435
Mechanical Specifications

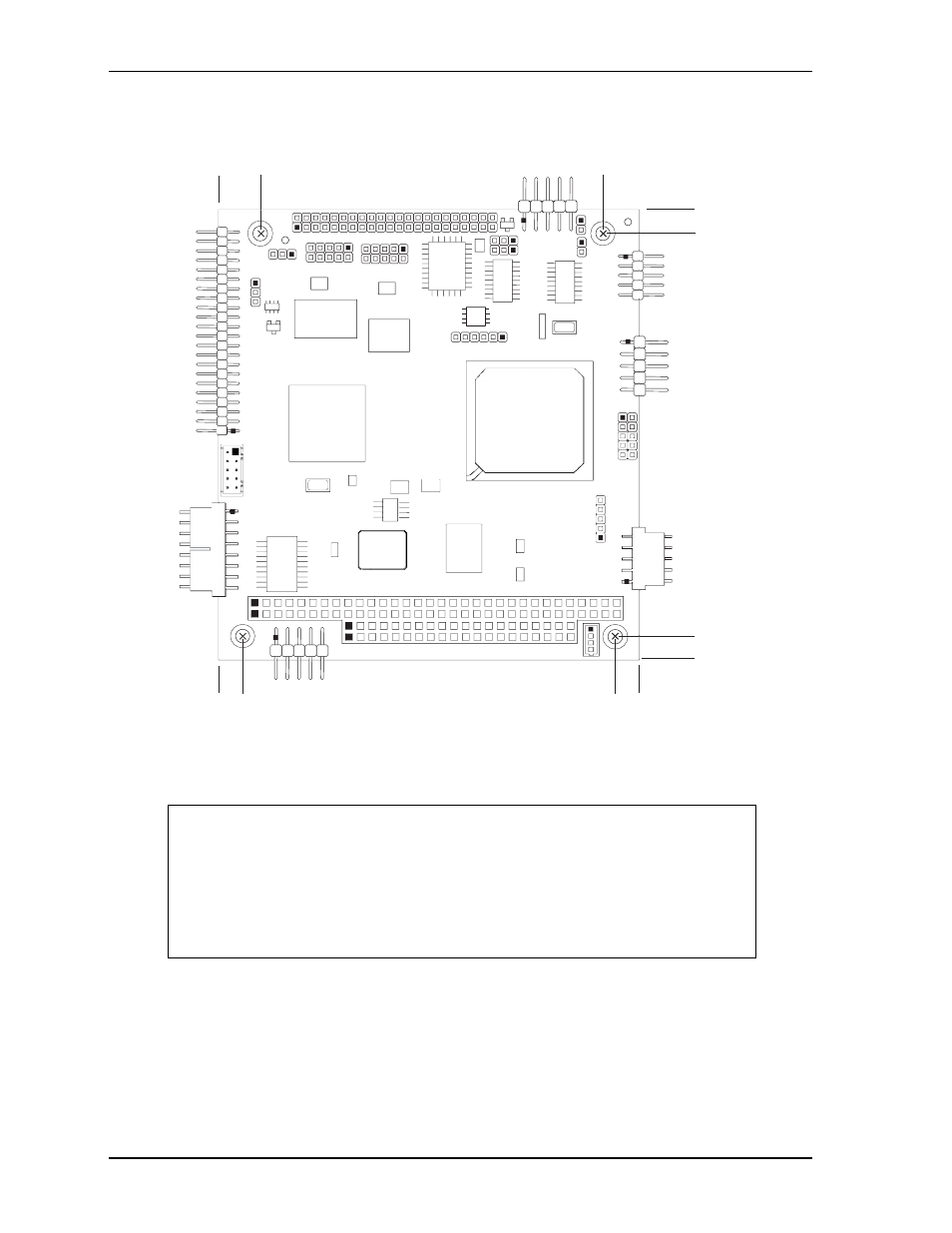

Figure 2-9. Mechanical Dimensions (Top View)
NOTE All dimensions are given in inches. Black dots on vertical headers or connectors
indicate pin 1 in all illustrations. Black dots on right-angle headers or connectors
indicate pin 1 in top-side views and pin 2 in bottom-side views (except for on the
J7 Power header, which indicates pin 2 in top-side views and pin 1 in bottom-
side views).
The Compact Flash socket (J12) exceeds the PC/104 height limitation on the
bottom side of the board by 0.2 inches.
0
0.200
3.575
3.775
0
0
0.200 3.350 3.550
0.350 3.250
CM435_mech_dwg_top_a
