Chapter 2 Product Overview
12 Reference Manual CoreModule 435

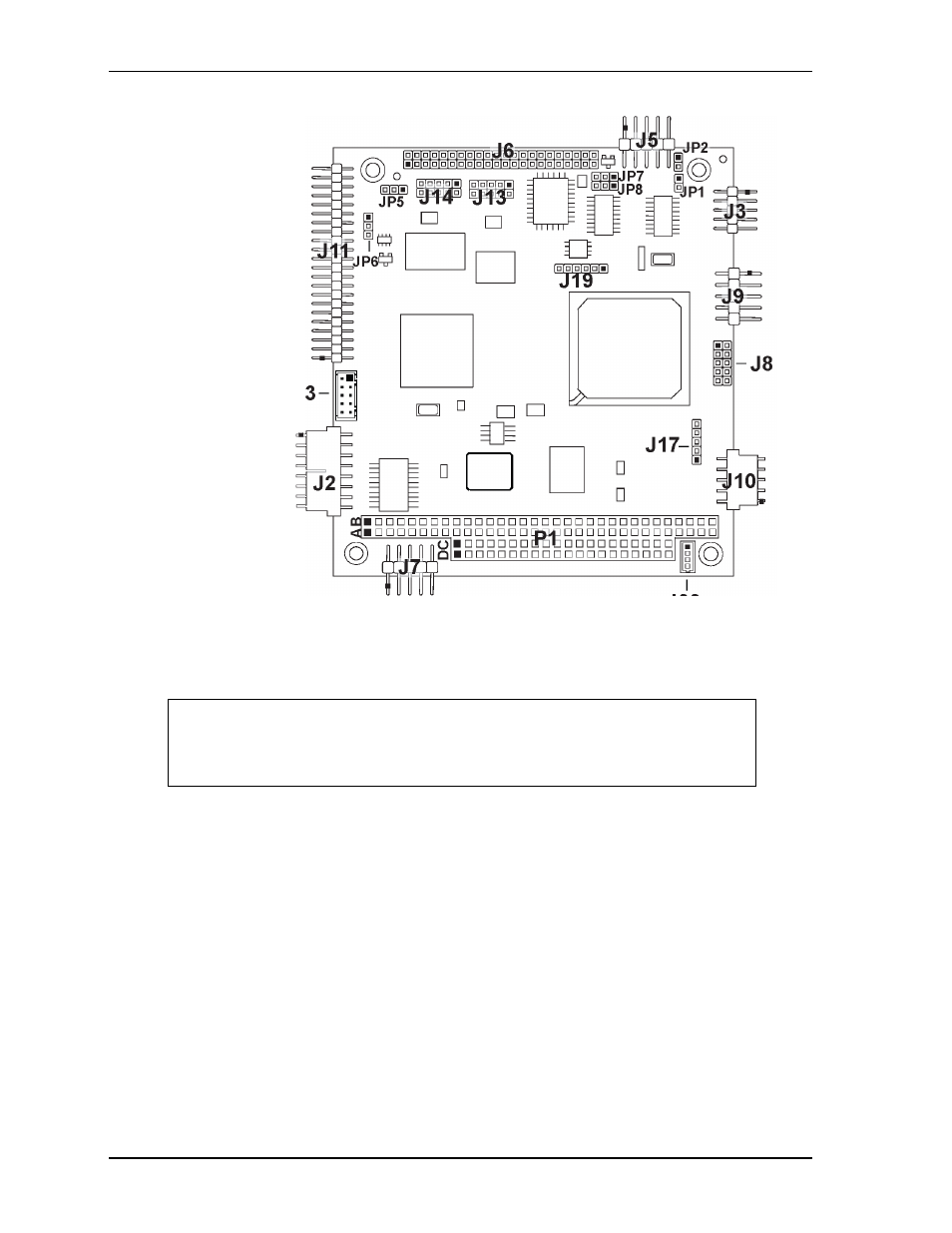

Figure 2-6. Header and Connector Locations (Top Side)
NOTE Black dots on vertical headers or connectors indicate pin 1 in all illustrations.
Black dots on right-angle headers or connectors indicate pin 1 in top-side views
and pin 2 in bottom-side views (except for on the J7 Power header, which
indicates pin 2 in top-side views and pin 1 in bottom-side views.)
CM435_conn_top_a
J6
J17
J22
J13 J14
J9
J23
J11
J10
P1
J7
J2
J8
J19
J3
J5
JP2
AB
DC
JP1 JP8
JP5
JP6
JP7
Key:
J2 - Fast Ethernet
J3 - COM1
J5 - Utility
J6 - IDE
J7 - Power
J8 - GPIO
J9 - COM2
J10 - USB0
J11 - TTL and VGA Video
J13 - COM4
J14 - COM3
J17 - USB1
J19 - SPI 16 Mbit Data Storage
J22 - Gigabit Ethernet LED
J23 - Gigabit Ethernet
JP1 - See jumper table
JP2 - See jumper table
JP5 - See jumper table
JP6 - See jumper table
JP7 - See jumper table
JP8 - See jumper table
P1 - PC/104
