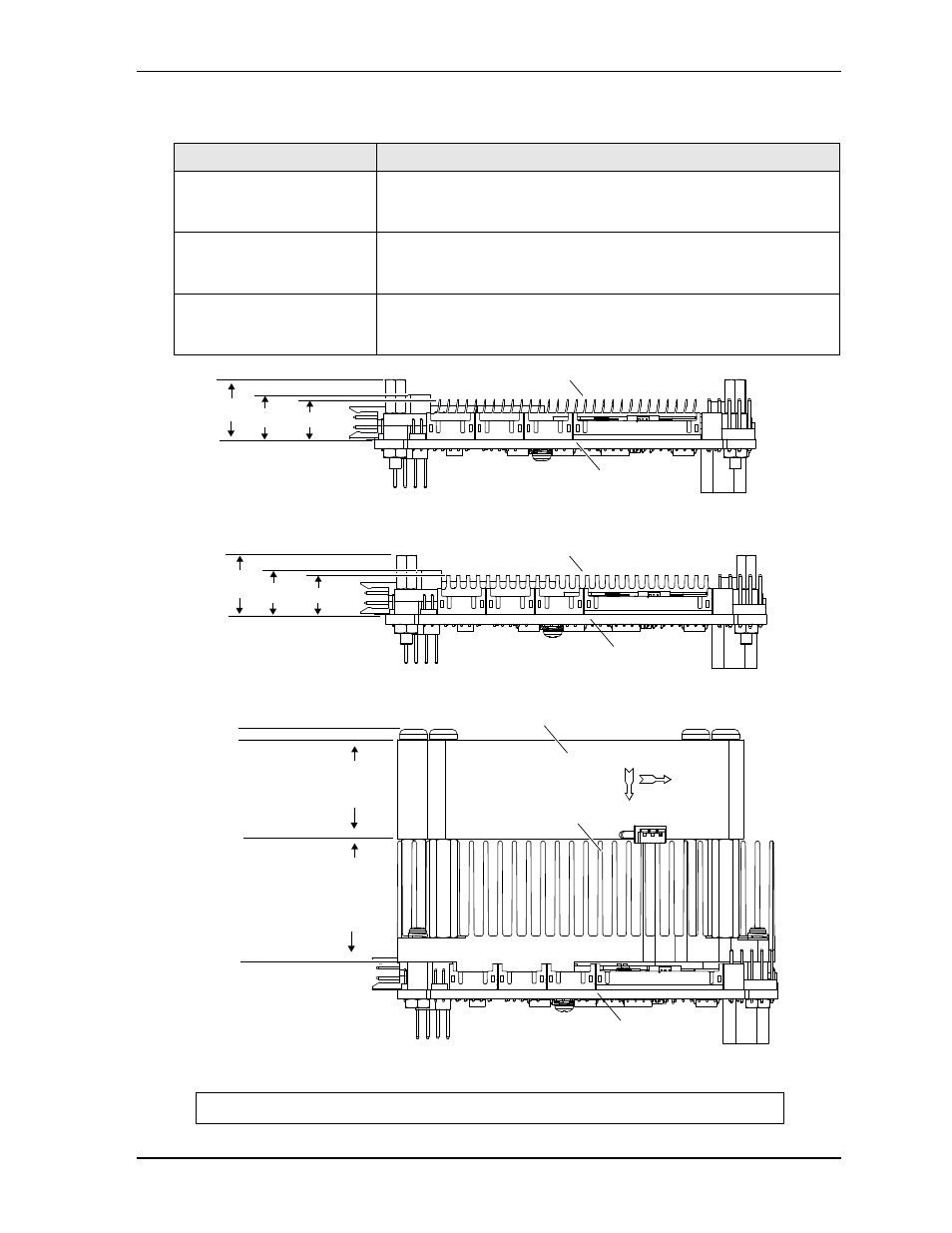

Figure 2-9. Stack Height of Cooling Assembly
Table 2-7. ADLINK Optional Cooling Solutions
Cooling Solution Description
Passive Heatsink - Copper
(without fan) Qualified to maintain optimal performance between -40°C and +85°C.
CPU throttles to 1000MHz. (Note: The D525 CPU is qualified only for
-20°C to +70°C with a copper heatsink.)
Passive Heatsink - Aluminum
(without fan) Qualified to maintain optimal performance between -20°C and +70°C.
Airflow requirement: 2 m/s. (Note: The D525 CPU is not qualified to
use an aluminum heatsink.)
Active Heatsink
(with fan) Qualified to maintain optimal performance between -40°C and +85°C.
(Note: The D525 CPU requires an active heatsink for temperatures
between +70°C and +85°C.)
NOTE All heights are given in inches.
0.39 0.44
0.60
Copper Passive Heatsink
Fan
CoreModule 745
CoreModule 745
CoreModule 745
0.11
1.50
0.98
Active Heatsink
0.39 0.44
0.60
Aluminum Passive Heatsink
