Chapter 2 Product Overview
CoreModule 745 Reference Manual 9

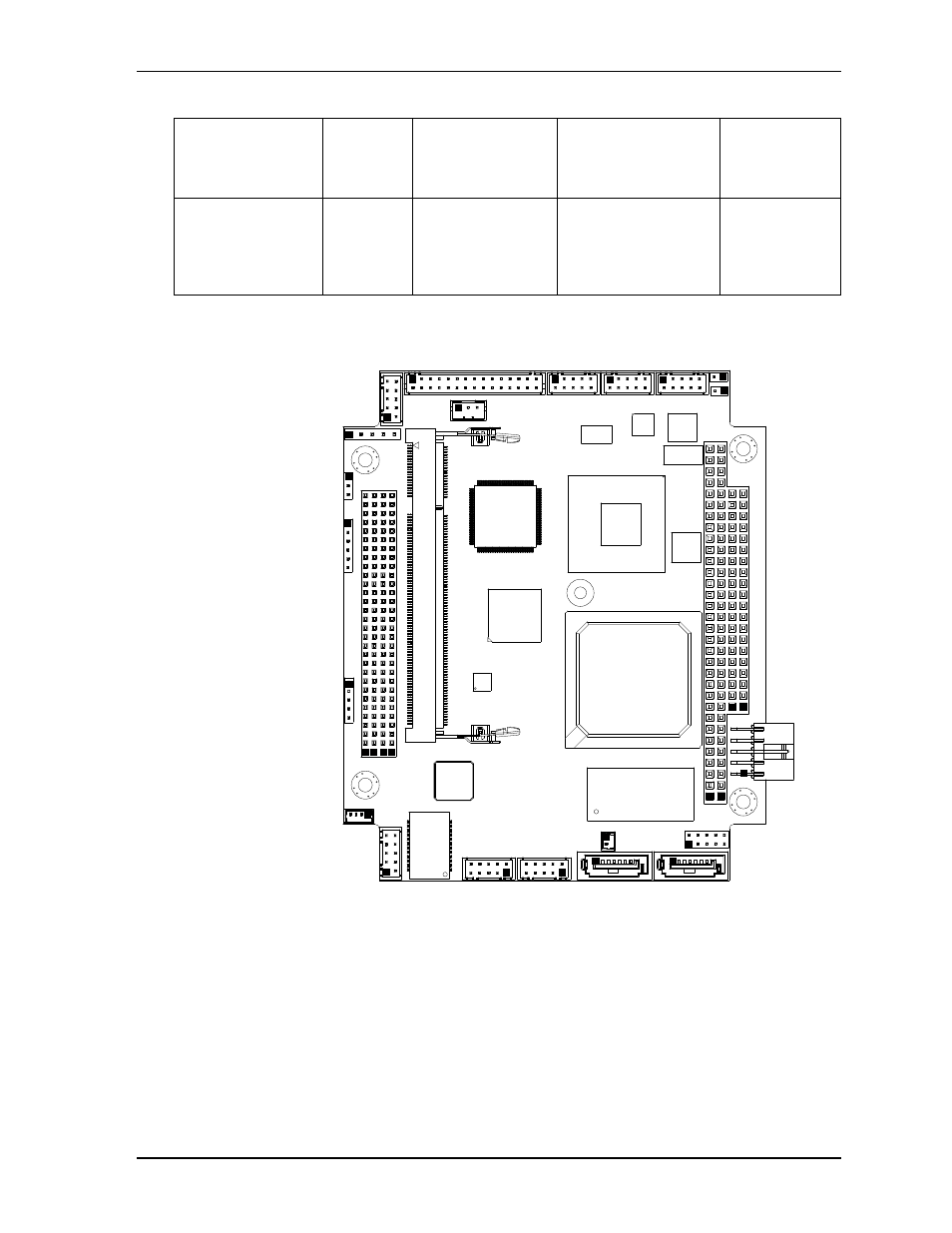

Figure 2-3. Component Locations (Top Side)
RS-232 Transceiver
(U38 - on bottom
side) [see
Figure 2-4 ]
Analog
Devices ADM213EARSZ Transceiver for Serial 3
RS-232 signals Transmits and
receives RS-232
signals for
COM3
Ethernet Transformer
(T1) Wurth
Elektronik 7490200110 Gigabit Ethernet
Magnetics Provides
electrical
isolation for
Gigabit Ethernet
controller
Table 2-1. Major Component Descriptions and Functions (Continued)
CM745_T
op_Comp_b
Key:
U1 - CPU
U2 - ICH8-M (Southbridge)
U4 - Gigabit Ethernet Controller
U8 - PCI-to-ISA Bridge
U9 - Super I/O
U33 - SSD (Solid State Drive)
T1 - Gigabit Ethernet Transformer
U1
U2
U4
T1
U8
U9
U33
