Chapter 2 Product Overview
4 Reference Manual CoreModule 745

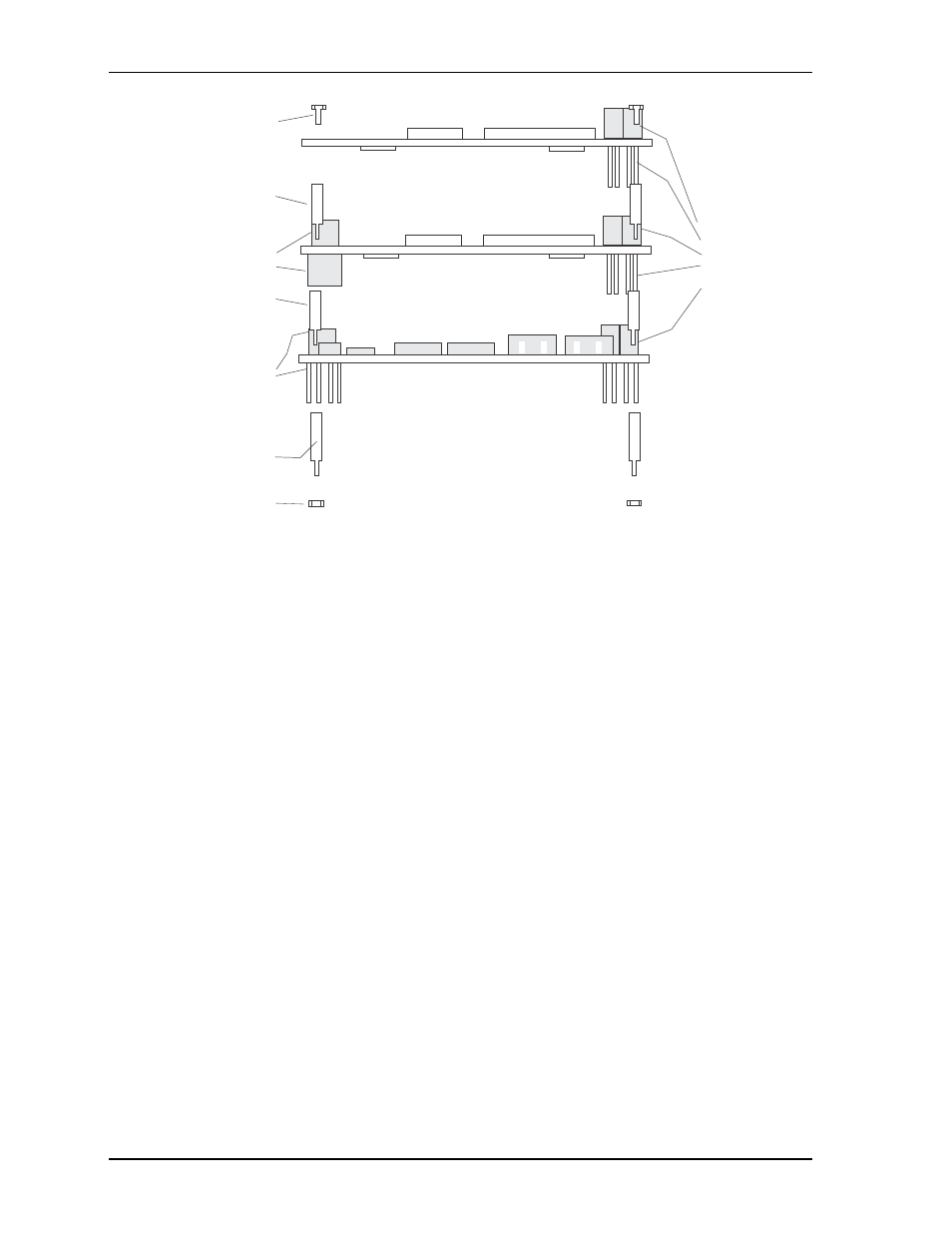

Figure 2-1. Stacking PC/104-Plus Modules with the CoreModule 745
Product Description
The CoreModule 745 SBC is an exceptionally high integration, high performance, Intel  Atom™ N455 or
D525 processor based system, compatible with the PC/104 standard. This rugged and high quality single-
board system contains all the component subsystems of an ATX motherboard plus the equivalent of several
PCI expansion boards.
The Intel Atom N400 and D500 series CPUs integrate processor cores with Graphics and Memory Hubs
(GMHs), providing low-power, high-performance processors, memory controllers for up to 2GB DDR3
memory, and graphics controllers which provide LVDS and VGA signals for most LCD video panels and
CRT monitors.
The ICH8-M chipset provides controllers for the I/O Hub (Southbridge) featuring four USB ports, two
SATA ports, one Ultra DMA 33/66/100 IDE port supporting two IDE devices, one SMBus port, one SPI
port, one GPIO port, one PCIe bus for Gigabit Ethernet, and one PCI bus for PC/104 and PC/104-plus
devices. The CoreModule 745 provides legacy interfaces through the SMSC SCH3112I-NU Super I/O
featuring three serial ports and a PS/2 keyboard and mouse port.
The CoreModule 745 can be expanded through the PCI expansion bus using the PC/104 and PC/104-Plus
connectors for additional system functions. This bus offers compact, self-stacking, modular expandability.
The PC/104 bus is an embedded system version of the signal set provided on a desktop PC’s ISA bus. The
PC/104-Plus bus includes this signal set plus additional signals implementing a PCI bus, available on a
120-pin (4 rows of 30 pins) PCI expansion bus connector. This PCI bus operates at a clock speed of 33MHz.
The CoreModule 745 is particularly well suited to either embedded or portable applications and meets the
size, power consumption, temperature range, quality, and reliability demands of embedded system
applications. It can be stacked with ADLINK MiniModules™ or other PC/104-compliant expansion
modules, or it can be used as a powerful computing engine. The CoreModule 745 requires a single +5V AT
power source.
CM745stackthru
Nuts (4)
or Chassis Standoffs
ISA Bus
Stackthrough
Connectors
Expansion
0.6 inch Spacers (4)
PCI Stack
Connectors
through
Screws (4)
0.6 inch Spacers (4)
PC/104 Module
0.6 inch Spacers (4)
PCI Stack
Connectors
through
PC/104-Plus Module
CoreModule 745
