Chapter 2

Product Overview

CoreModule 745

Reference Manual

Mechanical Specifications

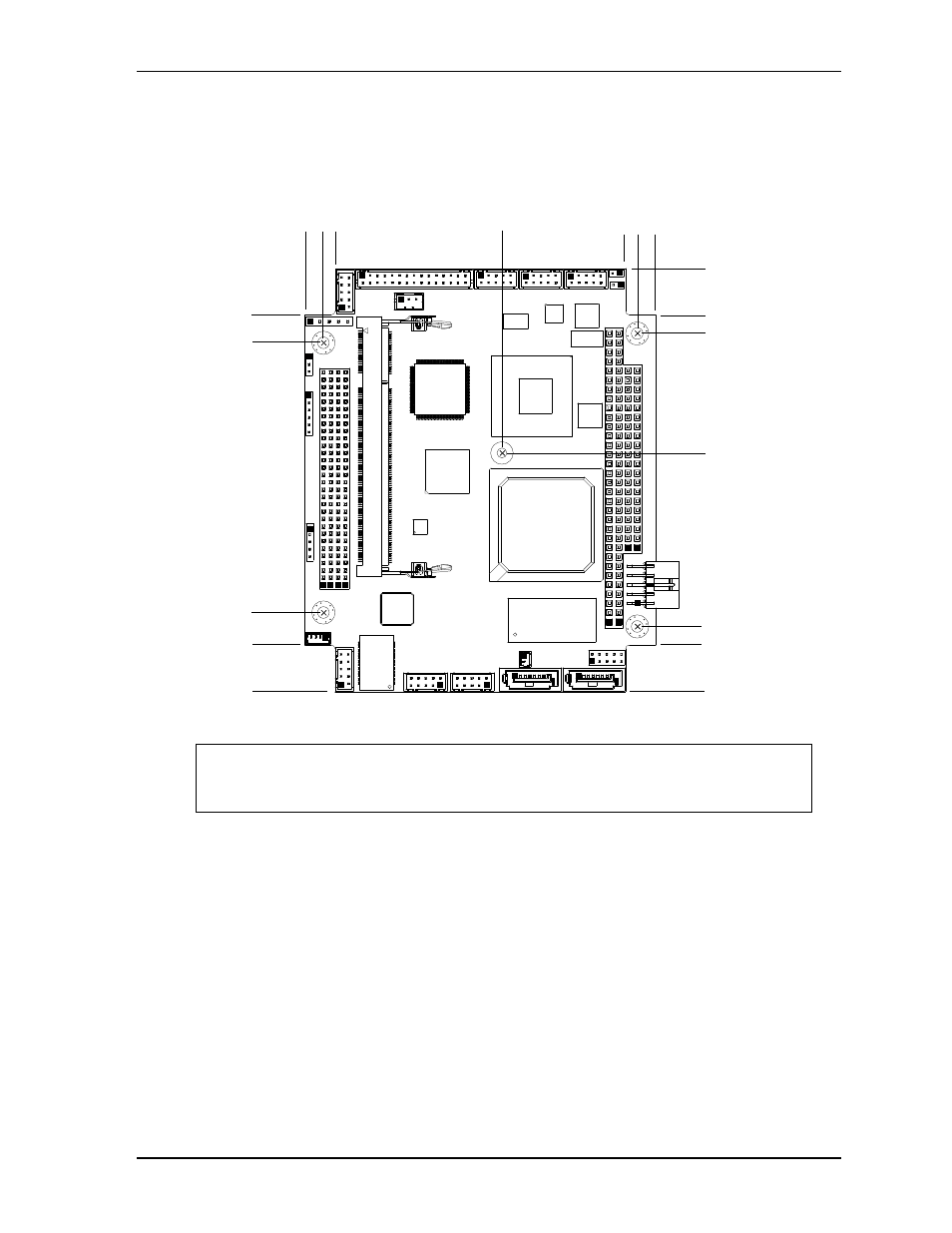

Figure 2-8. Mechanical Overview (Top Side)

NOTE

All dimensions are given in inches. Pin 1 is shown as a black square on headers and
connectors. Black squares on right-angle headers indicate pin 2 in top-side views and
pin 1 in bottom-side views.

CM745_T

op_Dmn_b

0.00

0.20 (5.08mm)

0.50 (12.7mm)

2.06 (52.45mm)

3.35 (85.09mm)

3.55 (90.17mm)

4.05 (102.87mm)

3.55 (90.17mm)

3.25 (82.55mm)

0.35 (8.89mm)

0.50 (12.70mm)

0.20 (5.09mm)

0.33 (8.26mm)

1.66 (42.04mm)

3.45 (87.63mm)

3.58 (90.81mm)

3.78 (95.89mm)

0.00
