Table 3-17, Battery ethernet external led miscellaneous, Ssd (solid state drive) real time clock (rtc) – ADLINK CoreModule 745 User Manual

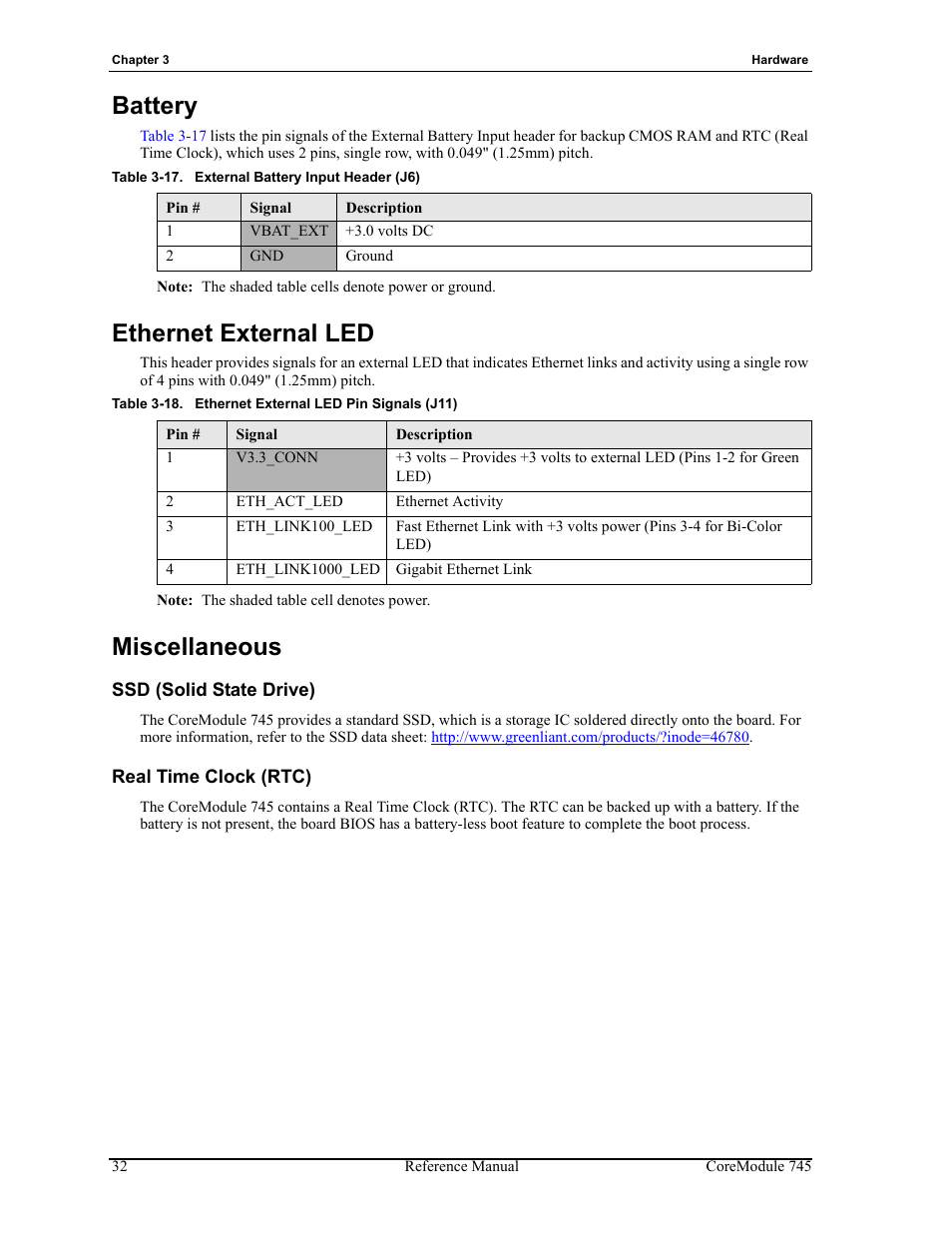

Page 38: External battery input header (j6), Table 3-18, Ethernet external led pin signals (j11), Battery, Ethernet external led, Miscellaneous
