Chapter 2 Product Overview
ETX-PVR Reference Manual 11

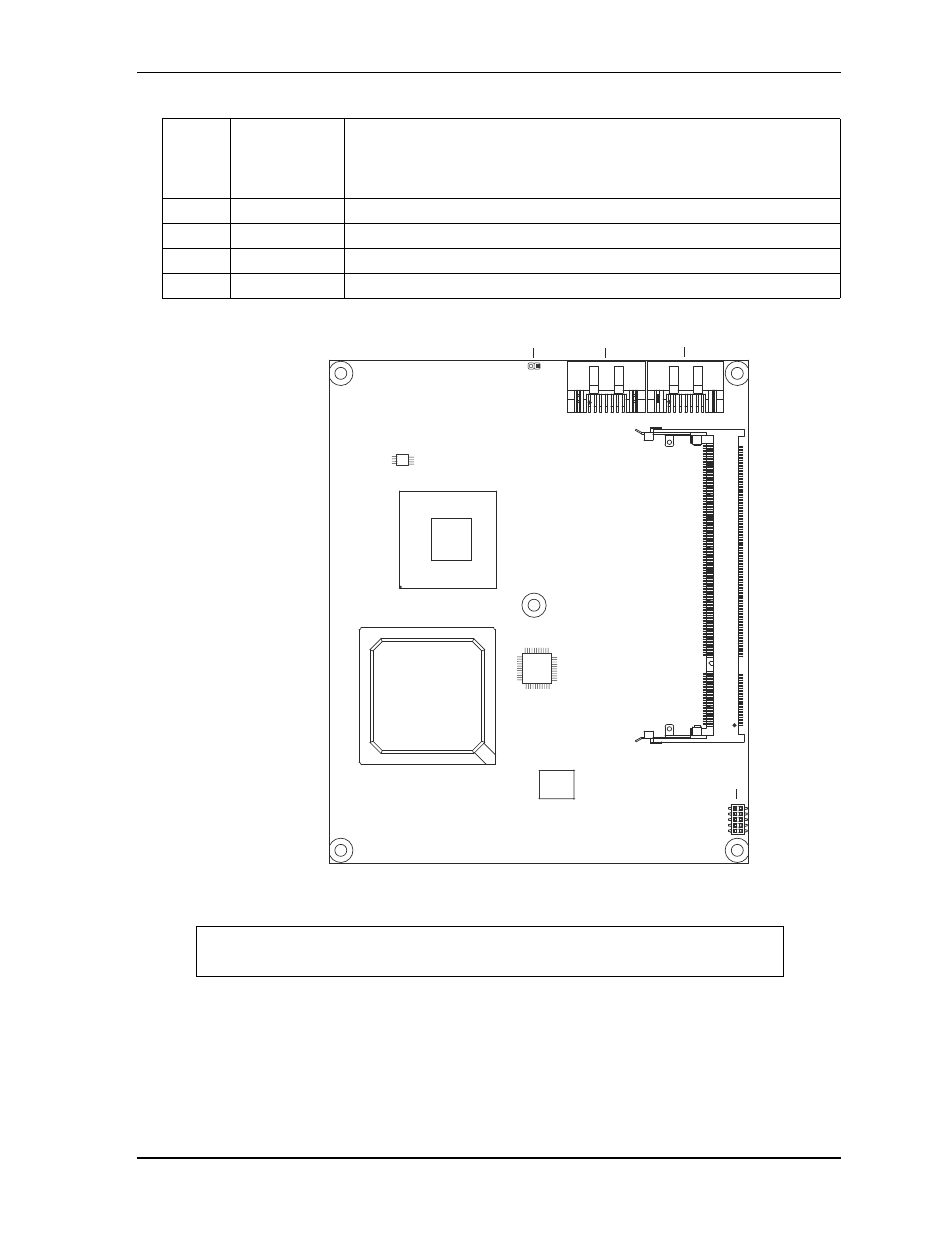

Figure 2-6. Connector and Socket Locations (Top Side)
J4 ETX X4 (on
back of the
board; see
Figure 2-7 .)
Standard 100-pin, 0.6 mm Hirose connector for IDE, Ethernet, SMBus, I2C,
speaker, VBat, and power management signals
J6 SODIMM Standard un-buffered 204-pin socket for DDR3 memory
J7 LPC Not Supported
J8 SATA1 Standard 7-pin, 1.27mm right-angle connector for serial ATA signals
J9 SATA2 Standard 7-pin, 1.27mm right-angle connector for serial ATA signals
NOTE Pin-1 is shown as a black pin (square or round) in all connectors and jumpers in
all illustrations.
Table 2-2. Connector and Socket Descriptions (Continued)
Key:
J6 - DDR3 SODIMM socket
J7 - Not supported
J8 - SATA1
J9 - SATA2
JP1 - See jumper table
ETX-PVR_T
op_Conn_b
JP1
J6
J7
J8 J9
