Chapter 2 Product Overview
Express-CBR Reference Manual 7
Block Diagram

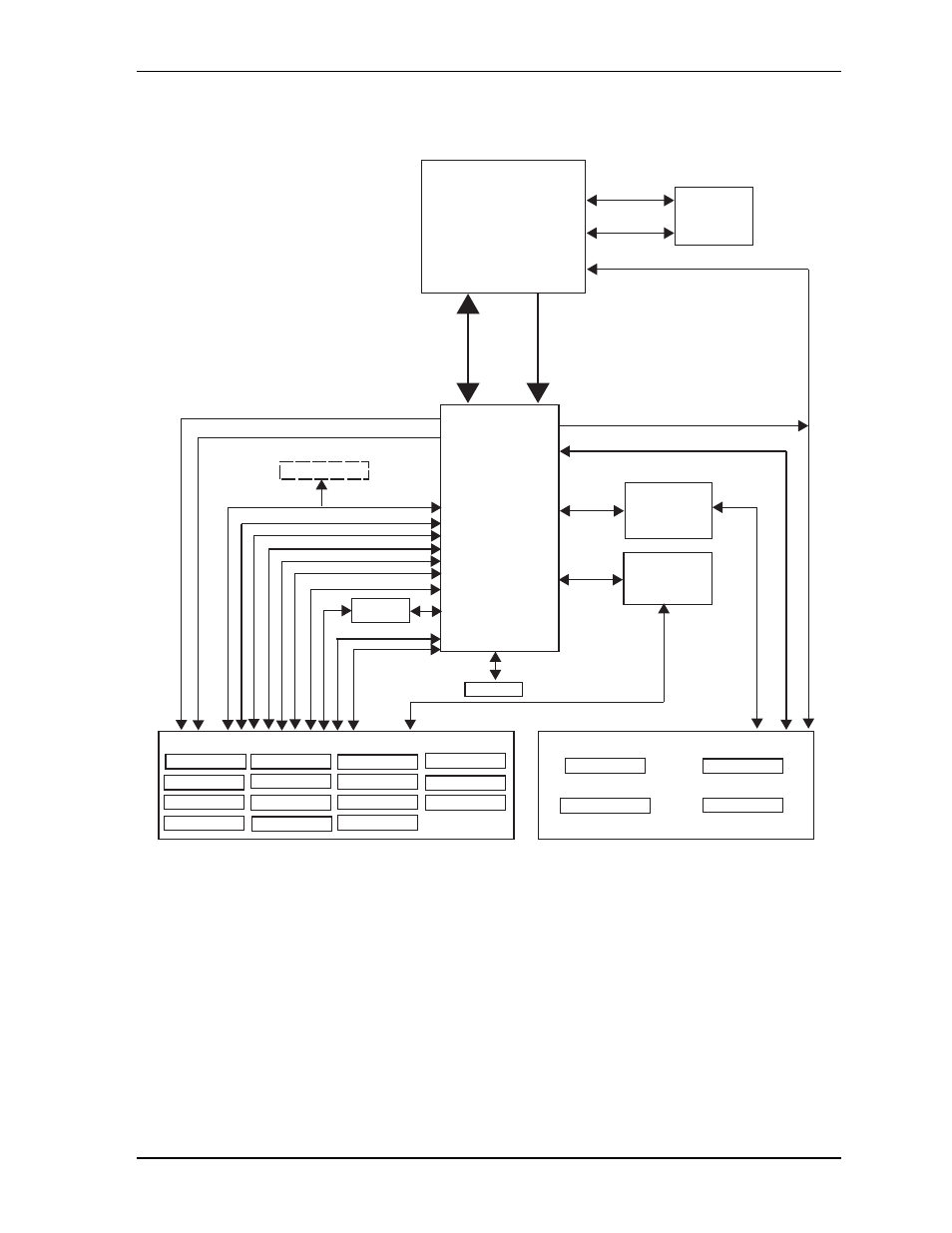

Figure 2-2 shows the functional components of the module.
Figure 2-2. Functional Block Diagram
Express-CBR_BlkDiag_b
COM Express Connector - Rows A and B COM Express Connector - Rows C and D
CPU
Intel Core i7
1.06 and 2.0 GHz
(with integrated Processor Core
and Graphics Memory Hub)
DDR3
SODIMM
Sockets (2)
FDI DMI (4)
800/1066MHz,
1.5V, 8GB Max.
PCH
Intel
BD82QM57
Gigabit Ethernet
Intel
82574IT
VBattery (RTC) X1 PCIe (6) SMBus
LVDS
VBATT (RTC)
Intel - HDA Link
SATA (4)
X1 PCIe (1)
X1 PCIe (6)
USB
LPC
SMBus
I2C Board
Controller
SPI Flash
TPM - [Optional]
SATA to PATA
Controller
JMicron
JMD330
SDVO B
PCI (32bit/33MHz)
GPIO
PWR
Management
Gigabit Ethernet - MDI
PCIe Graphics, X8/eDP - PEG
VGA
Channel - A
Channel - B
PCI
12V Input
12V Input
5V Standby
IDE
IDE SATA (1)
PEG
Gb Ethernet
PWR Mgmt
I2C
GPIO (8)
USB 2.0 (8)
LPC
VGA
HDA Link
SATA (4)
LVDS (2)
