80

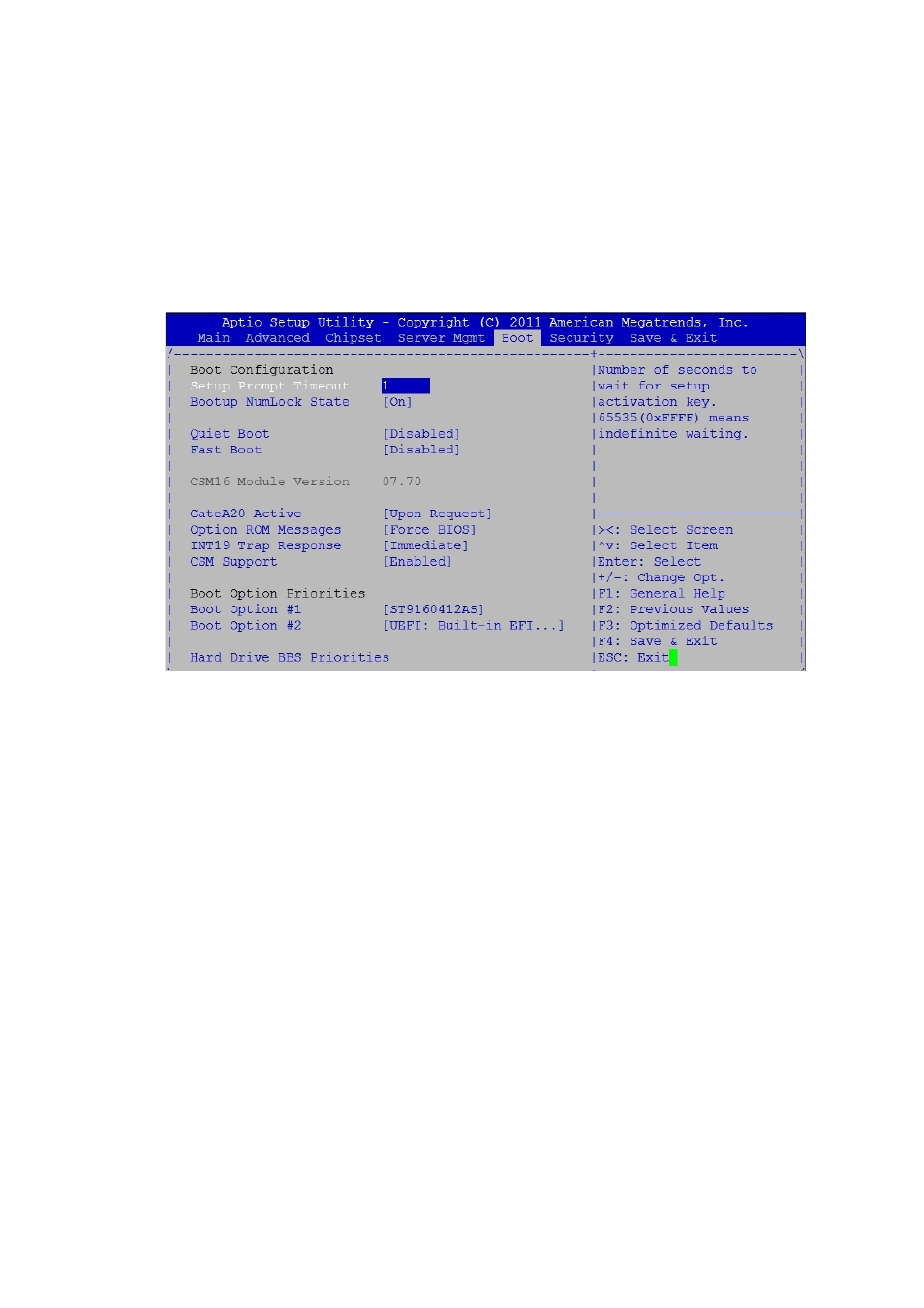

6.6 Boot Setup Screen
You can use this screen to specify options for the Boot configuration settings. Use the up
and down
the selected option. The settings are described in the following pages. The screen is shown
as the below.
Setup Prompt Timeout
It’s the number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite
waiting. Use the <+> and <-> keys to change the value of this item.
Bootup NumLock State
The item let users to select the keyboard numLock state.
Quiet Boot
This item allows system BIOS to show the boot up splash logo. When it is set to “Enabled”,
the logo that in system BIOS will be shown during display outputs.
Fast Boot
This item allows system BIOS to boot with initialization of a minimal set of devices required
to launch active boot option. Has no effect for BBS boot options.
GateA20 Active
