2.3.2.3 Media LED
Media LED (Green)
State Remark
Blink Accessing Disk I/O
Off Disk I/O idle
2.3.2.4 User LED
User LED (Amber)
State Remark
On Default On This LED is reserved for customer
applications and can be controlled via
GPIO.

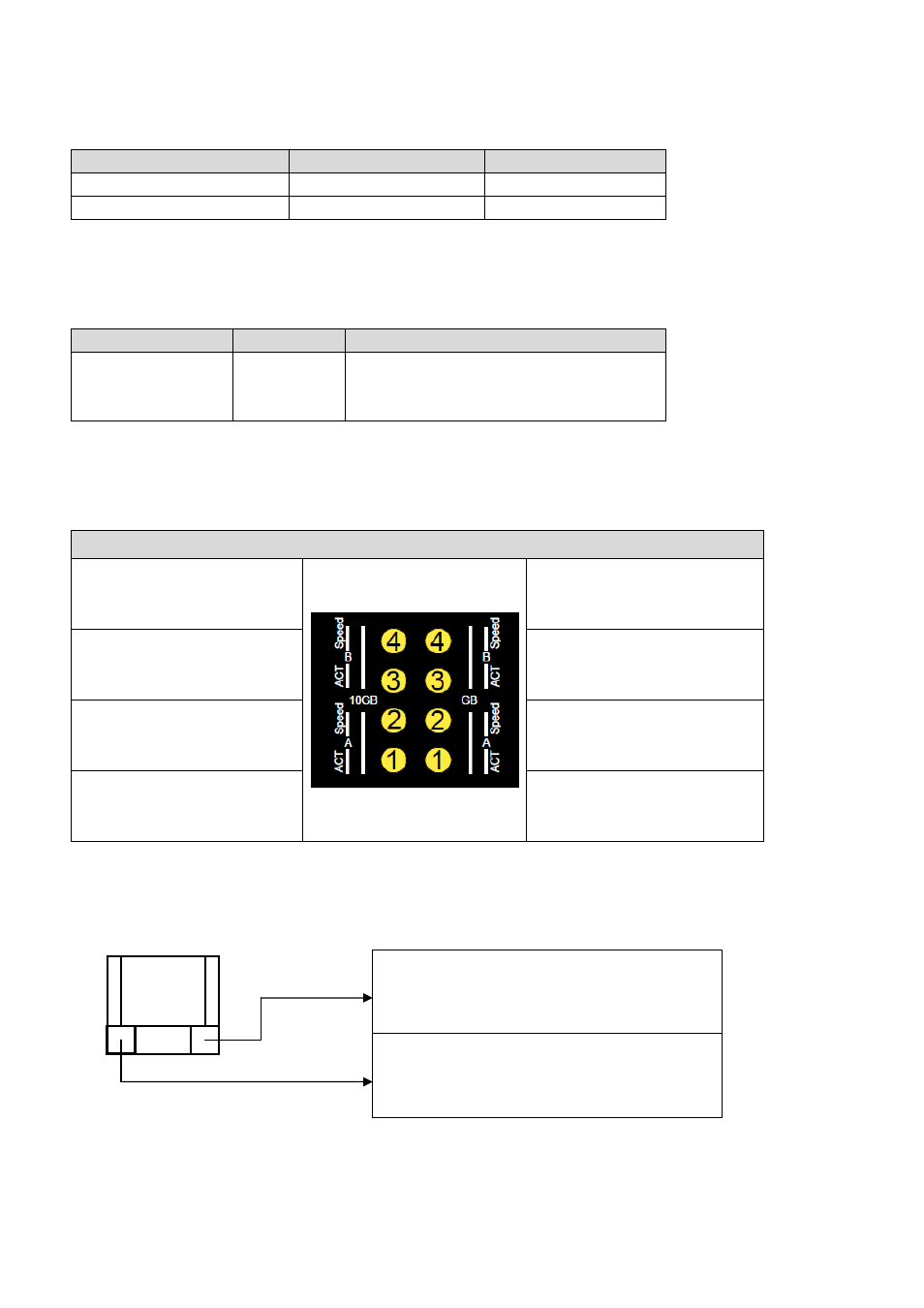

2.3.2.5 Base and Fabric Channel LED
BASE Channel and Fabric Channel LED
Fabric 2 Speed and Link
1Gbps – OFF
10Gbps – ON (Amber) BCH2 Speed and Link
100 Mbps: Green
1Gbps: Amber
Fabric 2 ACT (Amber)
Blink when accessing
Ethernet I/O BCH2 ACT (Amber)
Blink when accessing
Ethernet I/O
Fabric 1 Speed and Link
1Gbps - OFF
10Gbps – ON (Amber) BCH1 Speed and Link
100 Mbps: Green
1Gbps: Amber
Fabric 1 ACT (Amber)
Blink when accessing
Ethernet I/O BCH1 ACT (Amber)
Blink when accessing
Ethernet I/O
2.3.2.6 GbE LED
RJ-45
LED2: Speed and Link
1Gbps:
Amber ,
100Mbps: Green
LED1: ACT
Blinking when accessing I/O
Color:
Amber
