3.3.2 VGA Analog Interface

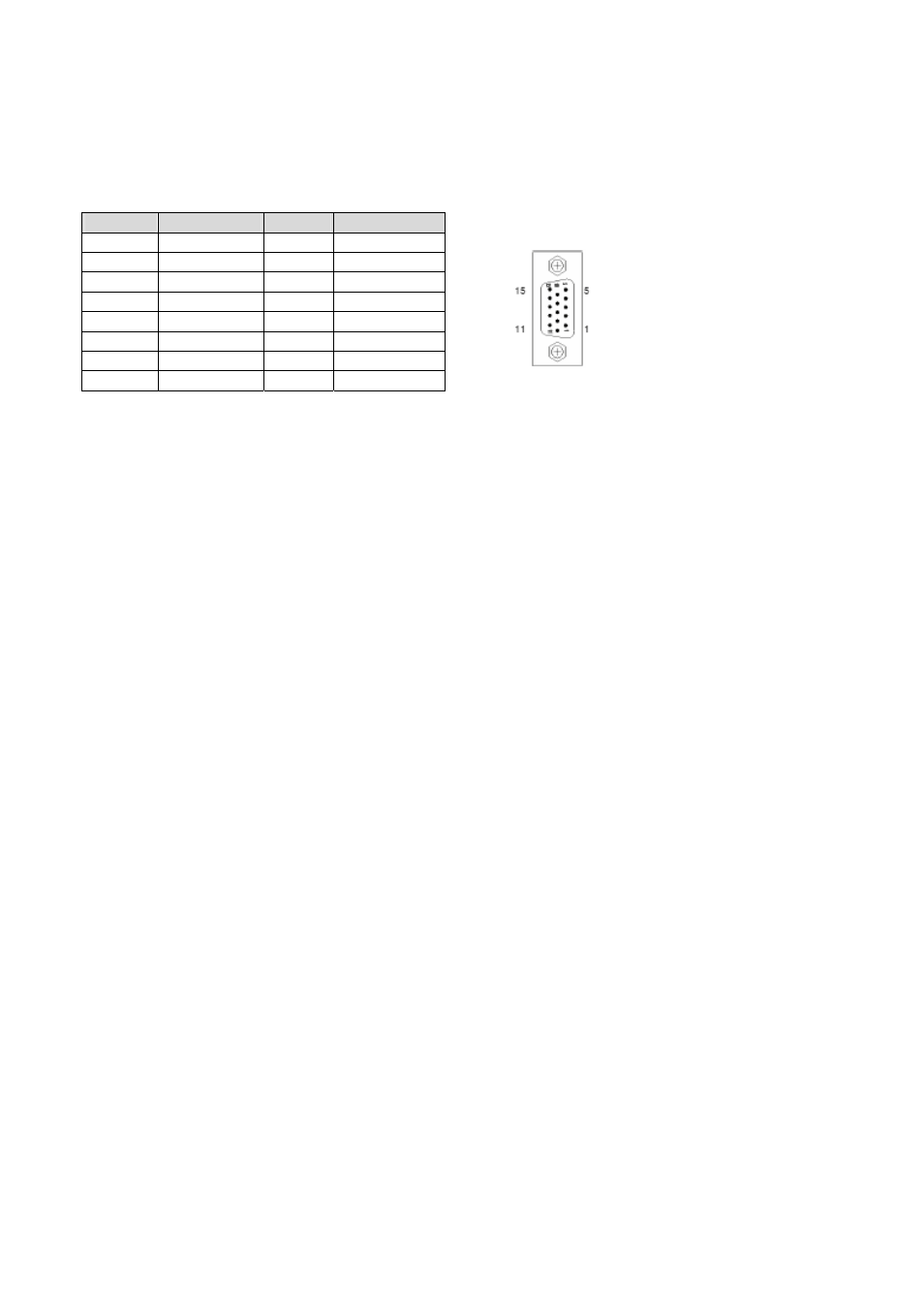

The DB-15 female connector CN10 is for analog display output.
3.3.3 Ethernet Connection
The aTCA-6200 is equipped with one quad-port Intel® 82580EB Gigabit Ethernet Controller and one
dual-port Intel® 82576EB Gigabit Ethernet Controller which provide six GbE ports in total. In default
configuration, two ports (LAN 1/2) from Intel® 82580EB Gigabit Ethernet Controller are connected to
the front panel RJ-45 ports. The other two ports (LAN3/4) are routed as GbE SerDes signals to Zone 3
RTM connectors or to the AMC port for AMC.2 E2 Support. Users can select the routing by changing
the setting of switch SW11. Two GbE ports from Intel® 82576EB Gigabit Ethernet Controller are
connected to Zone 2 Base Interface channel 1 and 2 (BCH1/BCH2).
The aDB-6100-A Fabric riser card provides the capability to support different configurations for
Fabric Channels 1 and 2. An aDB-6100-A will be installed on the aTCA-6200 by default. An Intel
82599EB Ethernet controller on the riser card connects provides 10GbE links to Fabric Channels 1
and 2 (FCH1/FCH2).
Pin Name Pin Name
1 RED 9 +5v
2 GREEN 10 GND
3 BLUE 11 NC
4 NC 12
DDC_DATA
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 DDC_CLK
8 GND
