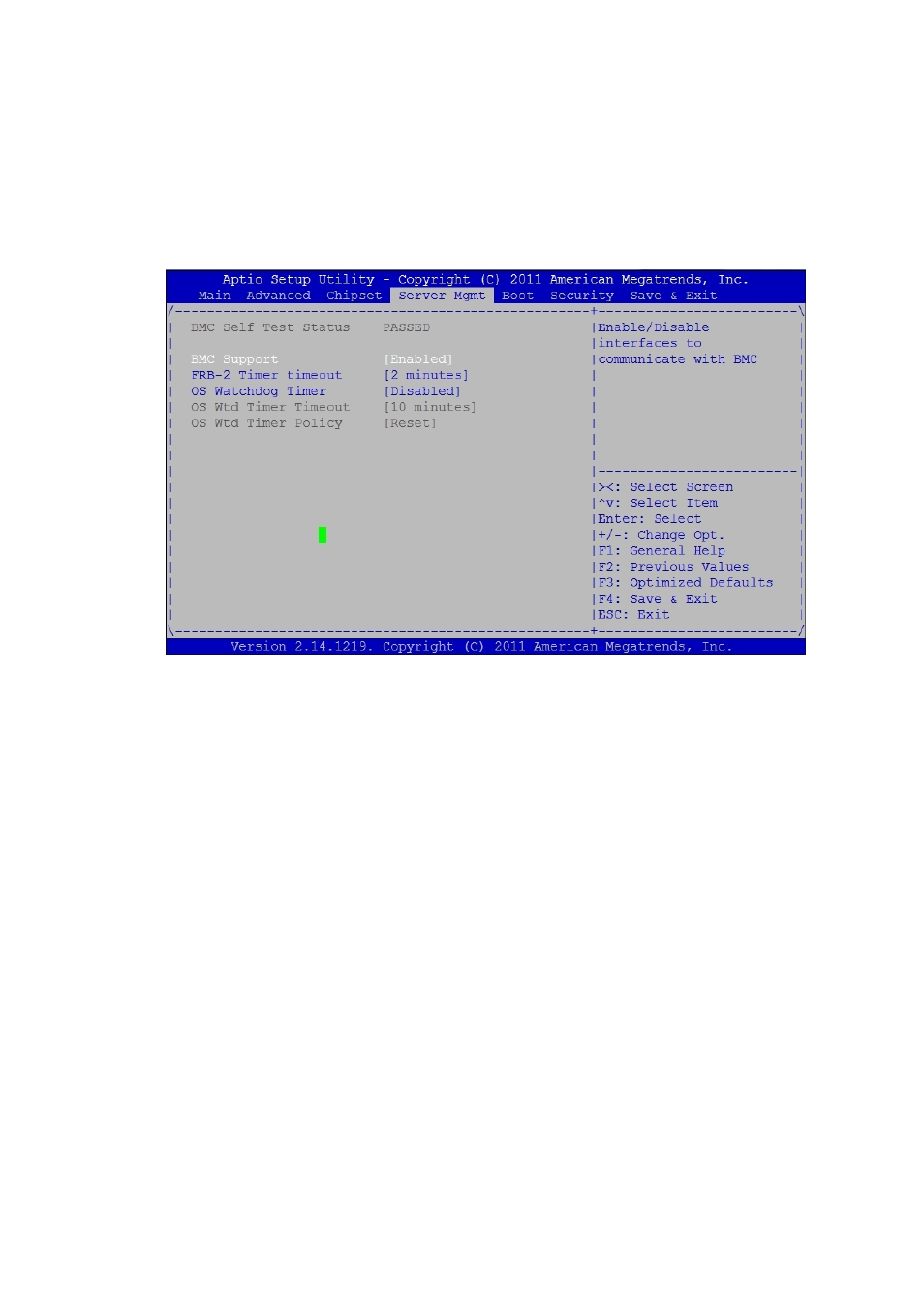

6.5 Server Mgmt Setup Screen
You can use this screen to specify options for the Server Management settings. Use the up
and down keys to select an item. Use <+> and <-> keys to change the value of the
selected option. The settings are described in the following pages. The screen is shown as
below.
BMC Support
It is for enabling or disabling the interface to communicate with BMC.
FRB-2 Timer timeout
It can select the value between 1 to 4 min for FRB-2 timer expiration value.
OS Watchdog Timer
If enabled, starts a BIOS timer which can only be shut off by Intel Management software
after the OS loads.
OS WD Timer Timeout
If is for configuring the length of the OS boot watchdog timer. Not available if OS boot
watchdog timer is disabled.
OS WD Timer Policy
If is for configuring how the system should respond if the OS boot Watchdog Timer expires.
Not available if OS boot watchdog timer is disabled.
