Page 61: 9 serial port console redirection, Serial port, Change settings, Console redirection

Text mode
Original mode

Serial Port

This item is designed for enabling/disabling the serial ports.

Change Settings

This item is designed for setting I/O and IRQ for the serial ports.

If you change settings and want to use Windows Emergency Management Services

(EMS), the parameters of EMS should be set to [Use BIOS Settings] in OS, and the EMS
configuration in BIOS menu should be set properly"

6.3.9

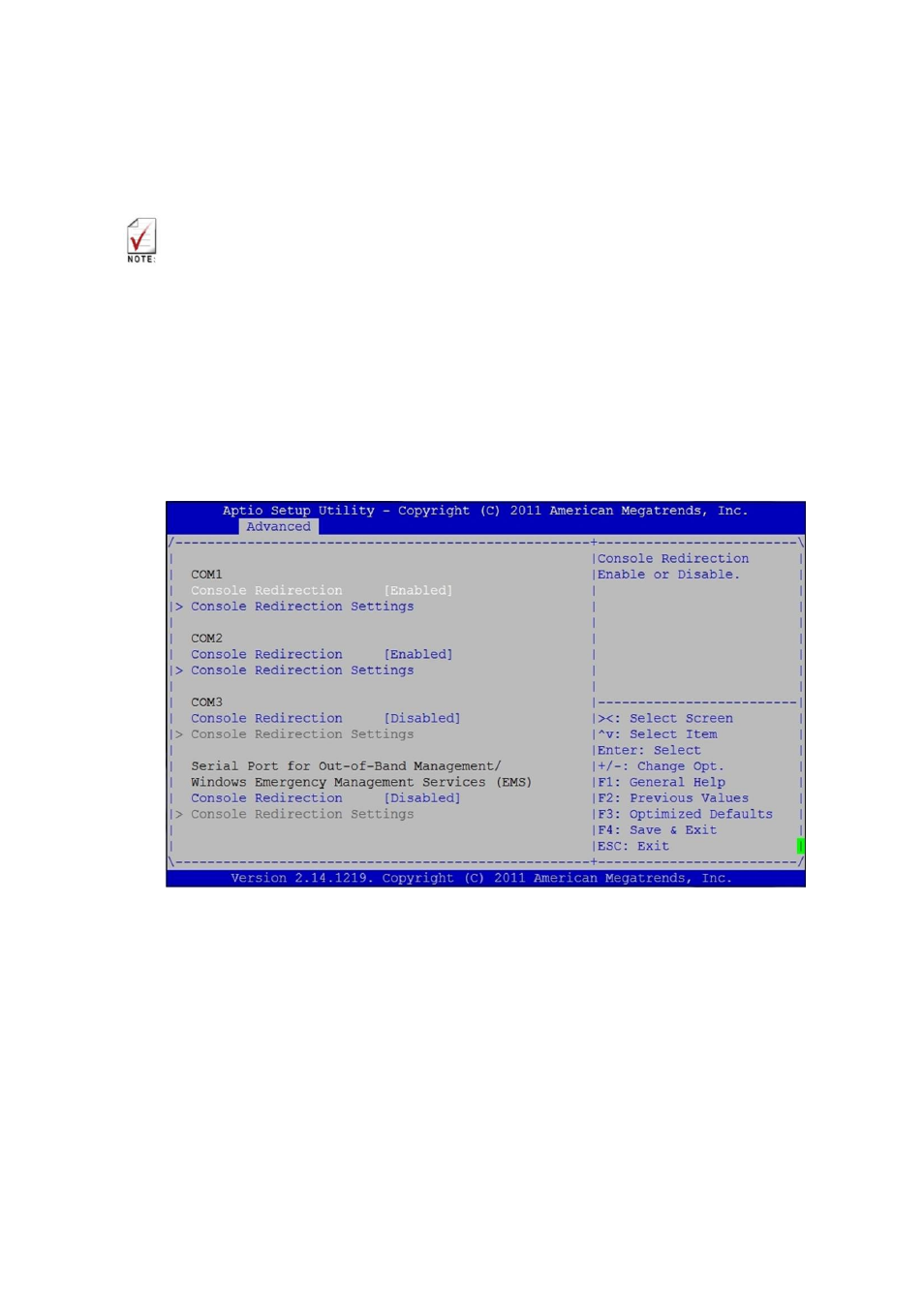

Serial Port Console Redirection

The settings on this setup screen specify how the host computer and the remote computer
(which the user is using) exchange data. Both computers should have the same or
compatible settings, like baud rate, terminal type, and so on.

Console Redirection

This item is designed for enabling/disabling the serial ports redirection.
