71

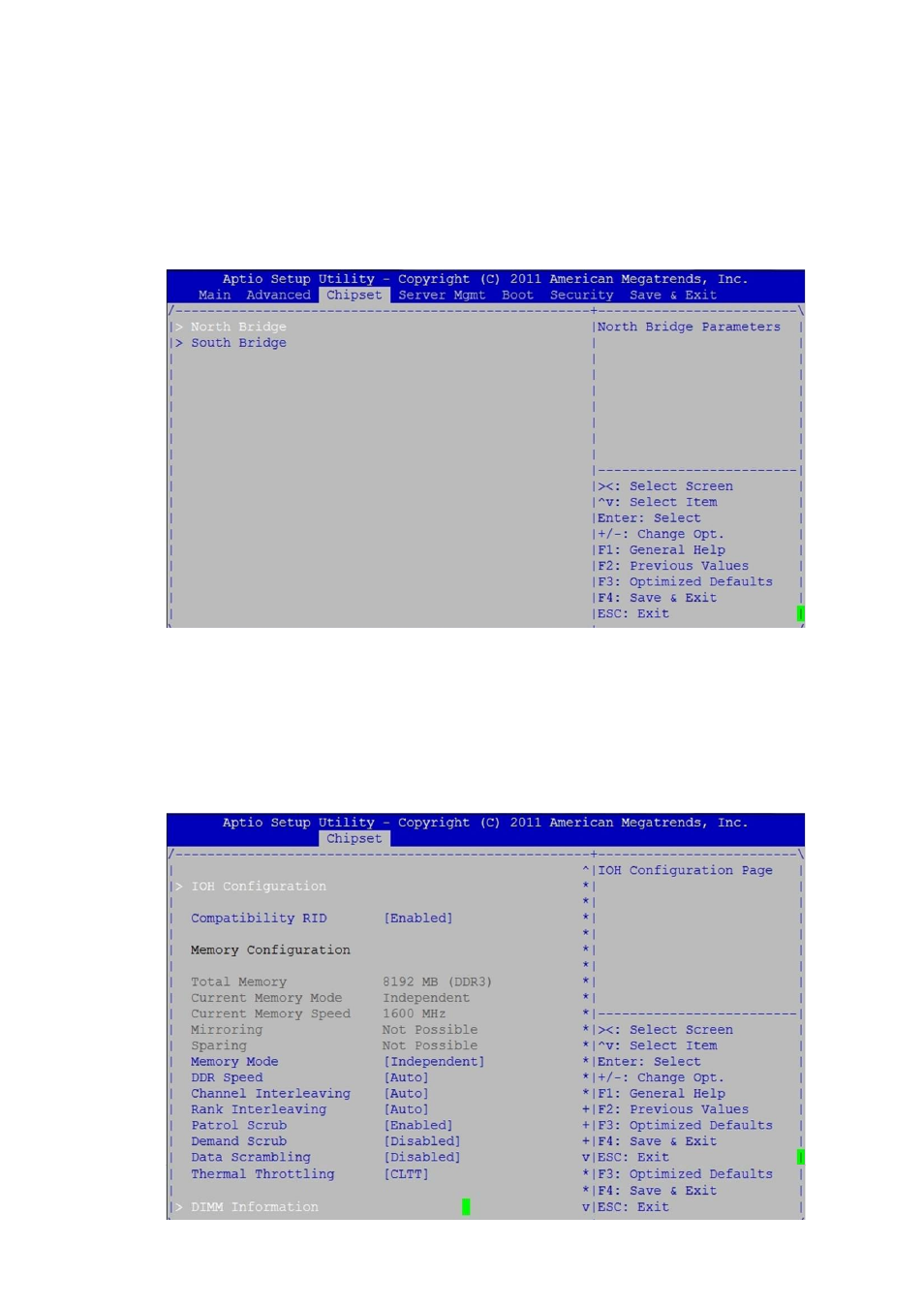

6.4 Chipset Setup Screen
Select Chipset tab from the setup screen to enter Chipset BIOS setup screen. You can select
any of the items in the left frame of the screen to go to sub menu for that item. An example
of Chipset BIOS setup screen is shown below.
6.4.1 North Bridge
You can use this screen to specify options for the North Bridge settings. Use the up and
down keys to select an item. Use <+> and <-> keys to change the value of the
selected option. The settings are described in the following pages. The screen is shown as
below.
