6.3.4

SATA Configuration

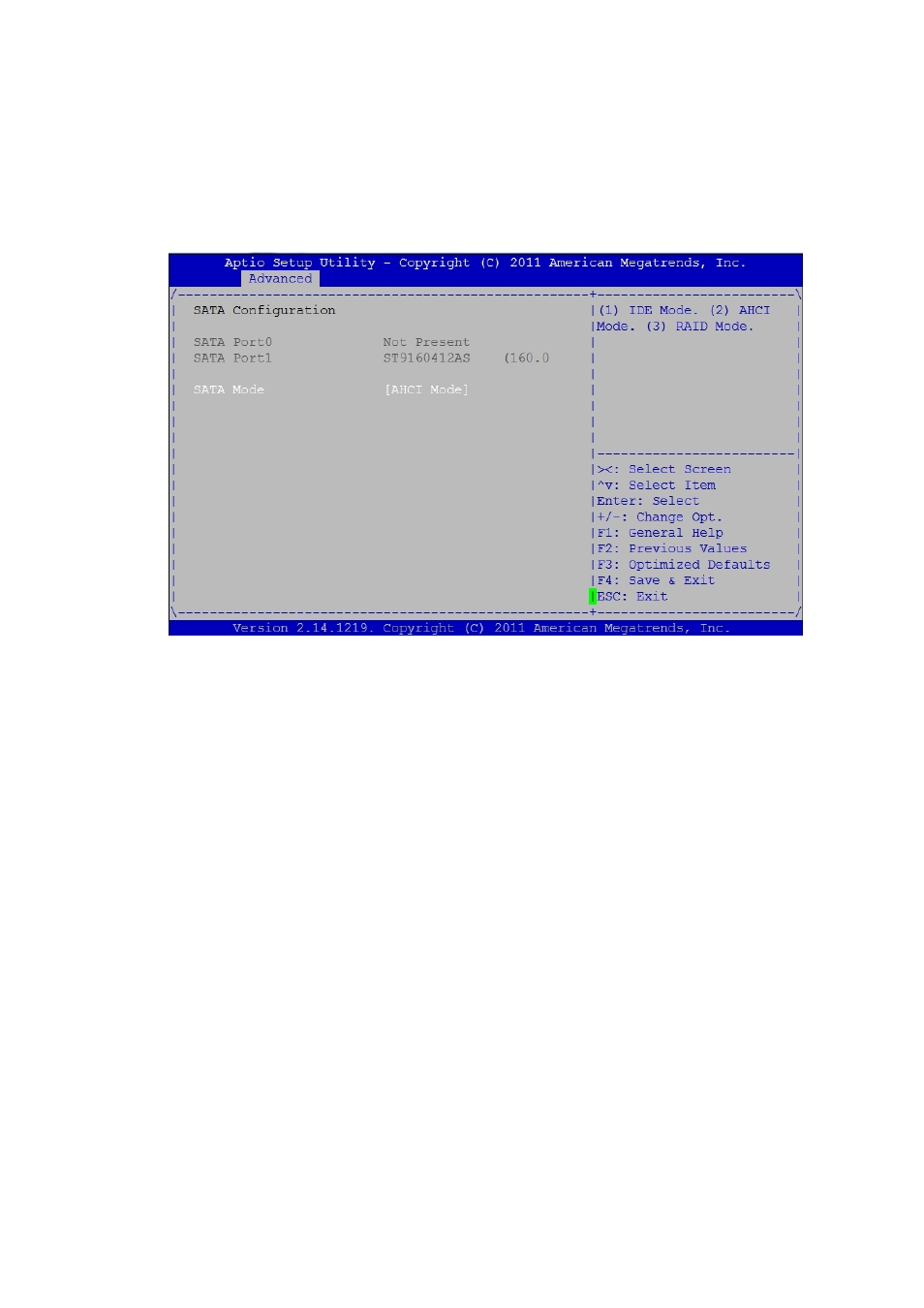

You can use this screen to specify options for the SATA configuration settings. Use the up
and down keys to select an item. Use <+> and <-> keys to change the value of the
selected option. The settings are described in the following pages. The screen is shown as
below.

SATA Mode

This option is designed for configuring SATA mode. It can be Disabled, IDE Mode and AHCI
Mode.

Aggressive Link Power

It allows enabling or disabling Aggressive Link Power for SATA.
