Attach the Camera Table 1-­‐20
3) View
the
camera
over
the
network.
4) Loosen
the
screws
on
the
bracket
slightly.
NOTE:
Please
loosen
the
screws
slightly
until
you
can
adjust
the
camera
and
do
not
remove
the
screws
from
the
bracket.
5) Adjust
the
camera
to
the
desired
surveillance
angle
and
then
tighten
the
screws
on
bracket
to
secure
the
camera.

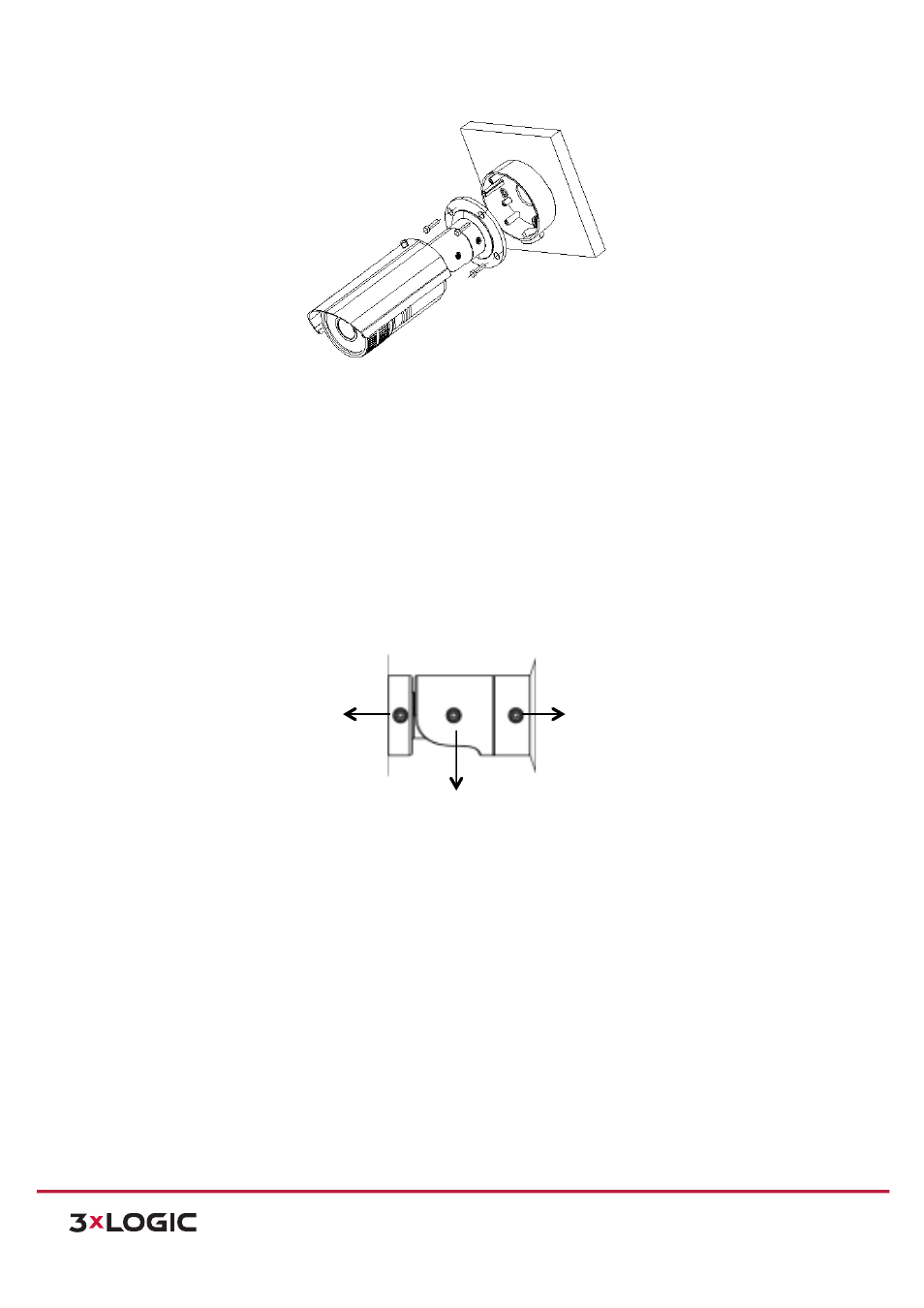

Figure 7-­‐4
Adjust
Monitoring
Angle
6) Loosen
the
lock
screw
on
the
sun
shield
and
slide
the
sun
shield
until
you
can
remove
it.
Remove
the
sun
shield.
Rotation
Screw
Panning
Screw
Tilting
Screw
