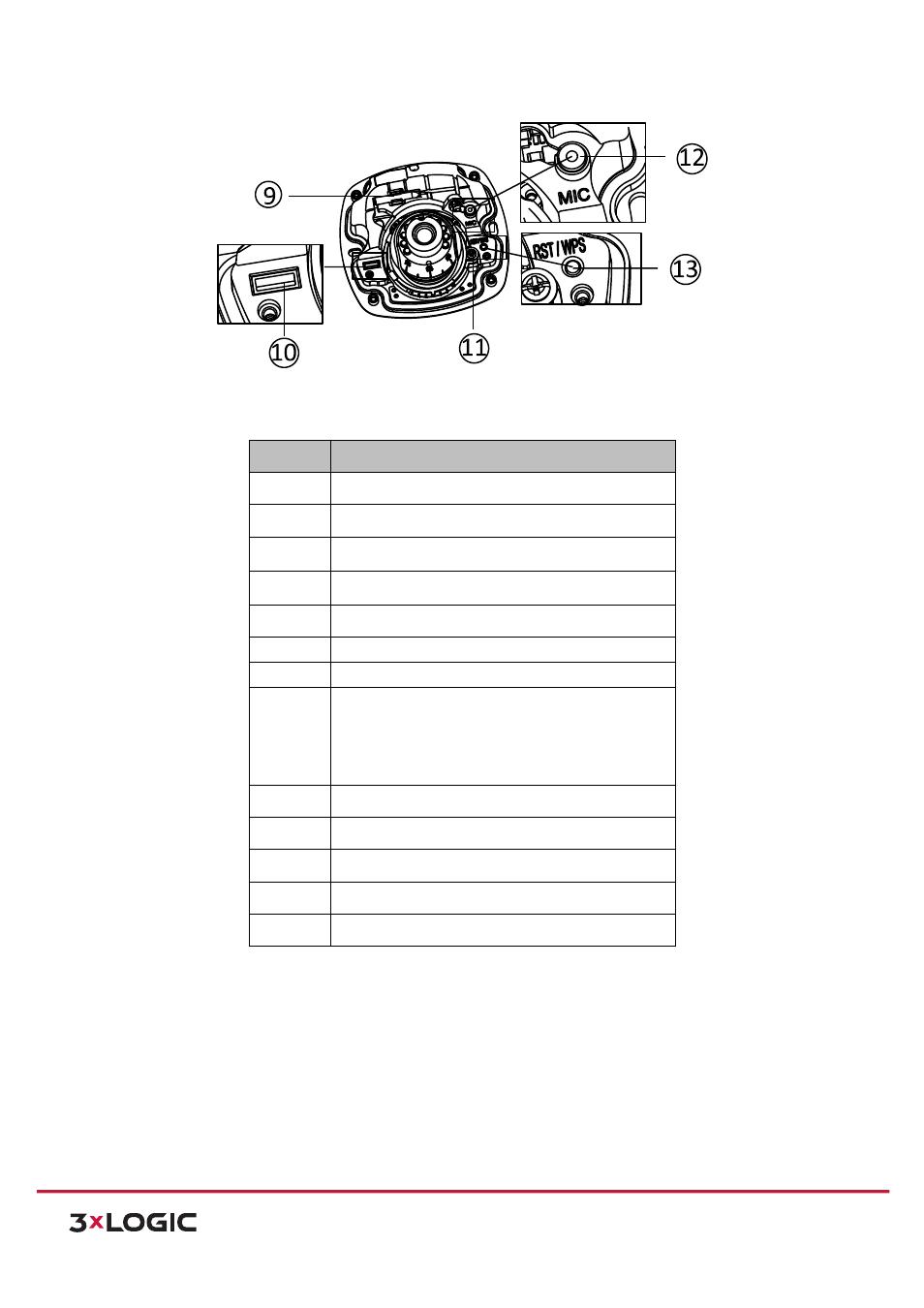

Figure 5-­‐10
Overview
(2)
Physical Description Table 1-­‐9
No. Description
1 Front
Cover
2 Dome
Drive
3 Micro
SD
Card
Slot
4 Network
Cable
5 Lens
6 IR
LED
7 Power
Cable
8
Audio/Alarm
Cable
I,
O:
Alarm
In
/
Out
A:
Audio
Out
GND
9
Wi-­‐Fi
Antenna
10 Serial
Port
Interface
11 Hex
Screw
12 MIC
13 RESET/WPS
Button
NOTE:
Press
and
hold
RESET
for
10s
when
the
camera
is
powering
on
or
rebooting
to
restore
the
default
settings,
including
the
user
name,
password,
IP
address,
port
No.,
etc.
WPS
Setup
WPS
(Wi-­‐Fi
Protected
Setup,
also
known
as
AOSS
or
QSS)
is
a
computing
standard
that
attempts
to
allow
easy
establishment
of
a
secure
wireless
network.
Refer
to
user
manual
for
details.
! A
wireless
router
with
the
WPS
function
is
required
to
enable
the
WPS
function
of
the
camera.
Refer
to
the
steps
below.
