6) Insert
the
hex
key
into
the
hole
marked
in
the
and
rotate
the
hex
key
to
adjust
the
panning
position
and
tilting
position
until
the
desired
surveillance
angle
is
achieved.
Tighten
the
set
screws
to
lock
the
angle.

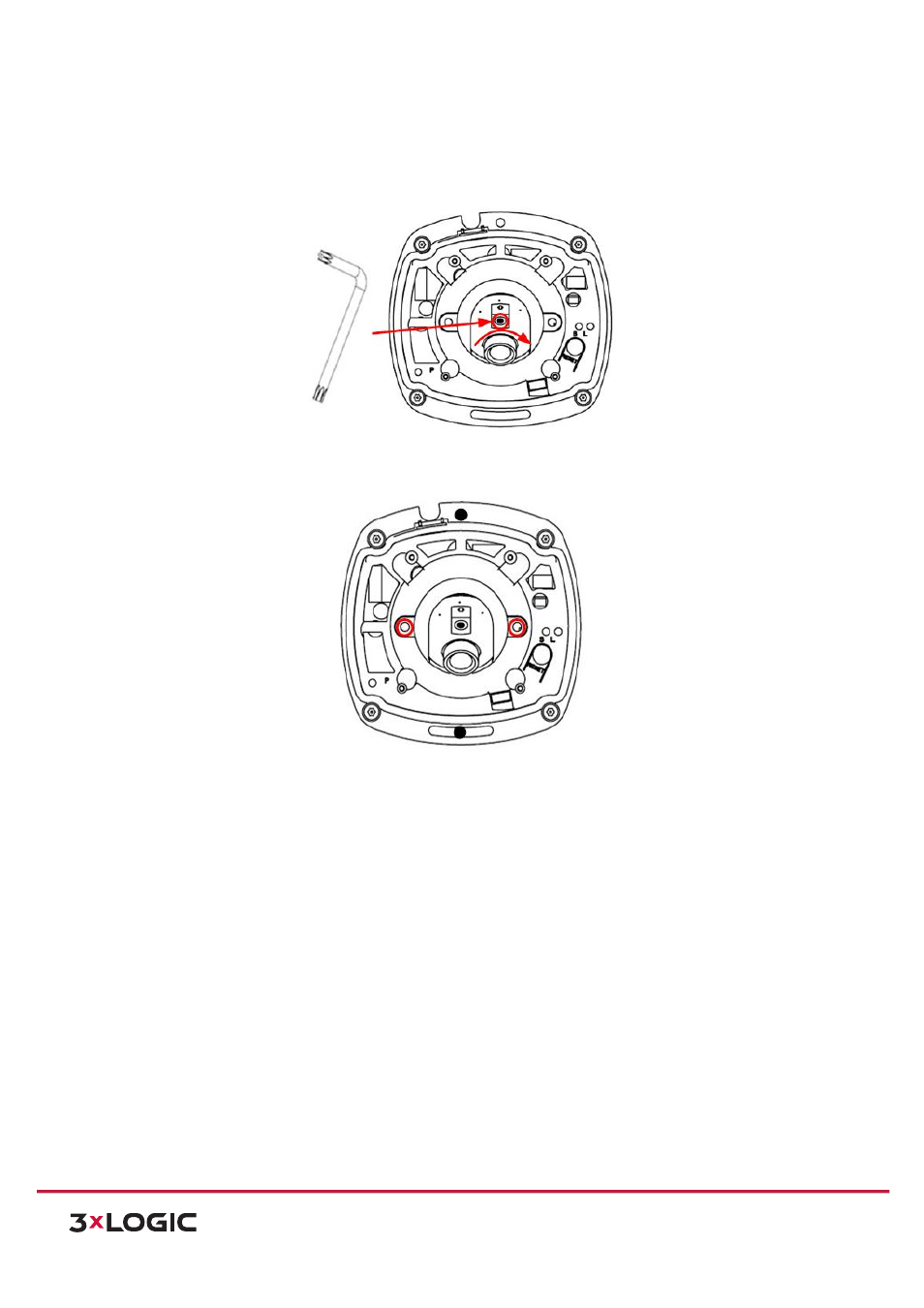

Figure 5-­‐34
Adjust
Panning
Position
Figure 5-­‐35
Adjust
Tilting
Position
NOTE:
As
the
lens
of
camera
has
already
been
factory
adjusted
to
the
best
image,
you
just
need
to
adjust
the
panning
position
and
tilting
position
to
get
the
desired
surveillance
angle.
7) Reinstall
the
cover
before
viewing
the
so
that
the
you
receive
will
appear
the
same
as
it
would
after
final
installation.
8) Install
the
cover,
and
tighten
the
set
screws.
