Steps:
1) Press
the
WPS
button
on
the
router.
2) Press
the
WPS
button
(about
2s)
on
the
camera
within
120s
of
enabling
the
WPS
on
the
router
to
join
the
wireless
network.
NOTE:
! The
WPS
button
works
as
a
reset
button
only
when
you
press
it
when
the
camera
is
powering
on.
! Press
the
WPS
button
on
the
camera,
and
then
press
the
WPS
button
on
the
router
will
establish
a
connection
as
well,
and
the
expire
time
of
WPS
connection
on
the
camera
is
120s.
! The
link
indicator
blinks
if
the
wireless
connection
is
succeeded.
AVAILABLE
MOUNTS
! MD
Wall
Mount
(3xLOGIC
Product
#:
VX-­‐WM-­‐MD )
! MD
Pendant
Mount
(3xLOGIC
Prodcut
#:
VX-­‐PM-­‐MD )
! Universal
Corner
Mount
(3xLOGIC
Product
#:
VX-­‐CM )
! Universal
Pole
Mount
(
3xLOGIC
Product
#:
VX-­‐POLE )
INSTALLATION
OF
TYPE
II
MINI-­‐DOME
CAMERA
(TYPE
A)
Steps:
1) Drill
the
screw
holes
and
the
cable
hole
in
the
ceiling
according
to
the
supplied
drill
template.

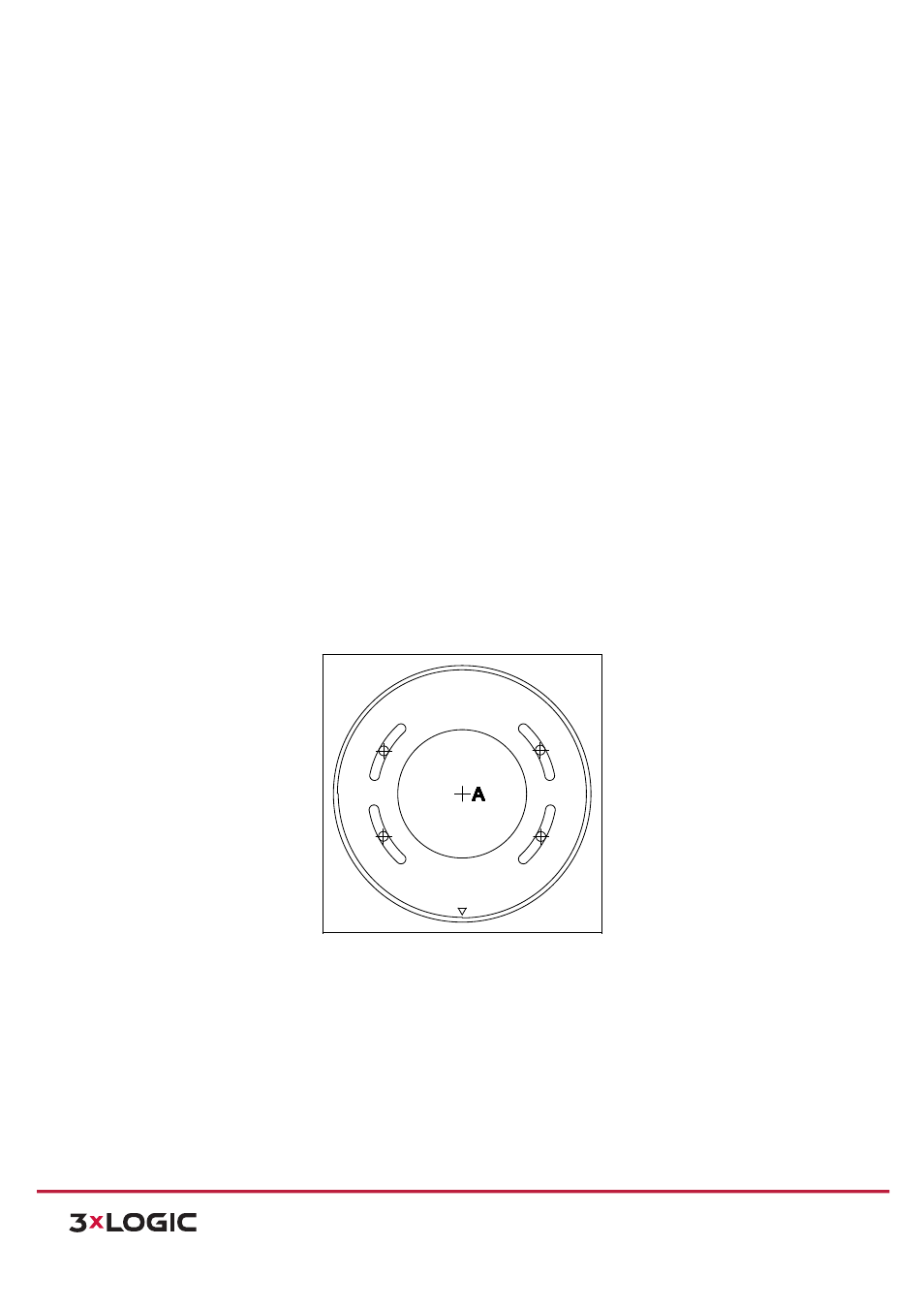

Figure 5-­‐11
Type
I
Drill
Template
NOTE:
A
different
drill
template
might
be
provided
due
to
slight
variations
in
product
batch
manufacturing.
In
this
case,
the
adapter
plate
may
also
vary.
See
figure
below.
Drill
Template
1 1
1 1
Hole
A:for
cables
routed
through
the
ceiling
Screw
hole
1:for
Mounting
Base
FRONT
