3xLOGIC VISIX Camera - Manual (Page 13)

Installation Manual
|
VISIX
Network
Camera
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC 12

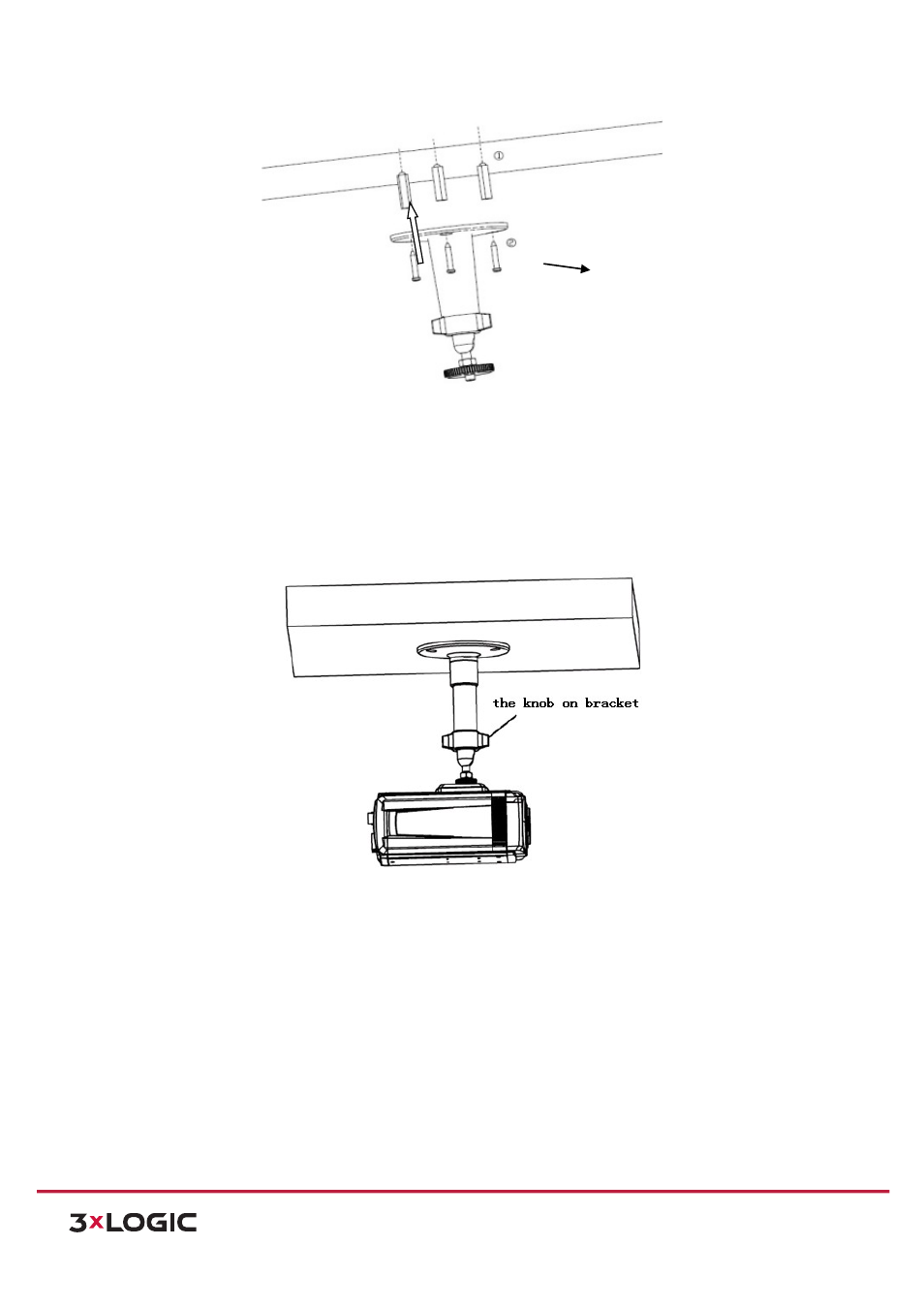

Figure 3-­‐3
Attach
Camera
Mounting
Bracket
to
Ceiling
2). Align
the
screw
threading
on
the
top
of
the
camera
with
the
hole
on
the
bracket
arm
and
use
the
tightening
screw
to
affix
the
camera
to
the
bracket.
3). Adjust
the
camera
to
the
desired
surveillance
angle
and
tighten
the
knob
on
the
bracket
to
secure
the
camera.
Figure 3-­‐4
Attach
the
Camera
Installing
the
Lens
1) Connect
the
VIDEO
OUT
interface
of
the
camera
to
a
debugging
monitor.
2) Adjust
the
lens
focus
to
obtain
the
desired
on
the
monitor.
Expansion
Screw
