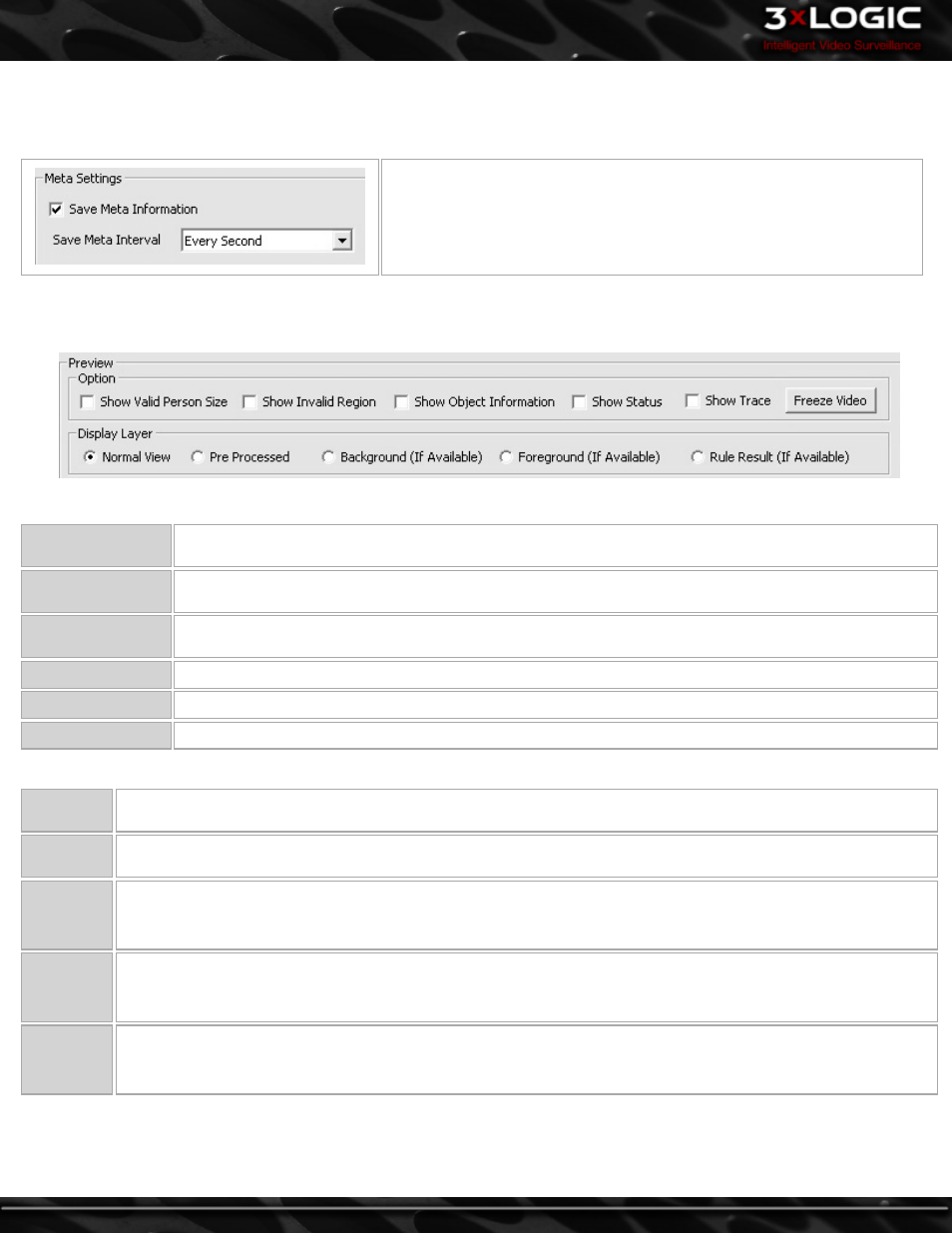

9.1.7 Meta Settings
Meta Information is analytics data that is displayed on the image. Enable Save Meta Information to view this data in other windows
such as the playback window, in exported video and in VIGIL Client.
Select how frequent the meta information will be saved.
9.1.8 Preview
Preview the calibration settings to verify they are correct.
Options
Show Valid Person
Size
When a person is in the image, shows the valid person size.
Show Invalid
Region
When an object that does not meet person size criteria is moving through the image, this option displays the
analyzed size of the object.
Show Object Infor-
mation
Show information about the object when it appears in the image.
Show Status Show information about the current settings in the bottom left corner of the image.
Show Trace Shows the tracking of a moving object through the image.
Freeze Video Freezes the Video, click again to return to live video.
Display Layer
Normal
View
The view normally used in the Vigil Server live window.
Pre Proc-
essed
The view used by the analytics engine.
Background
(If Avail-
able)
The calculated background image.
Foreground
(If Avail-
able)
Objects moving over the background image. This view is extremely useful when configuring Analytics as you will be
able to see exactly what the Analytics Engine is seeing in regards to motion.
Rule Result
(If Avail-
able)
The analytics rule result used within the analytics engine.
Example featured on the following page.
