D-Link DES-3326S - Manual (Page 218)

DES-3326S Layer 3 Fast Ethernet Switch User’s Guide
218 Web-Based Switch Management

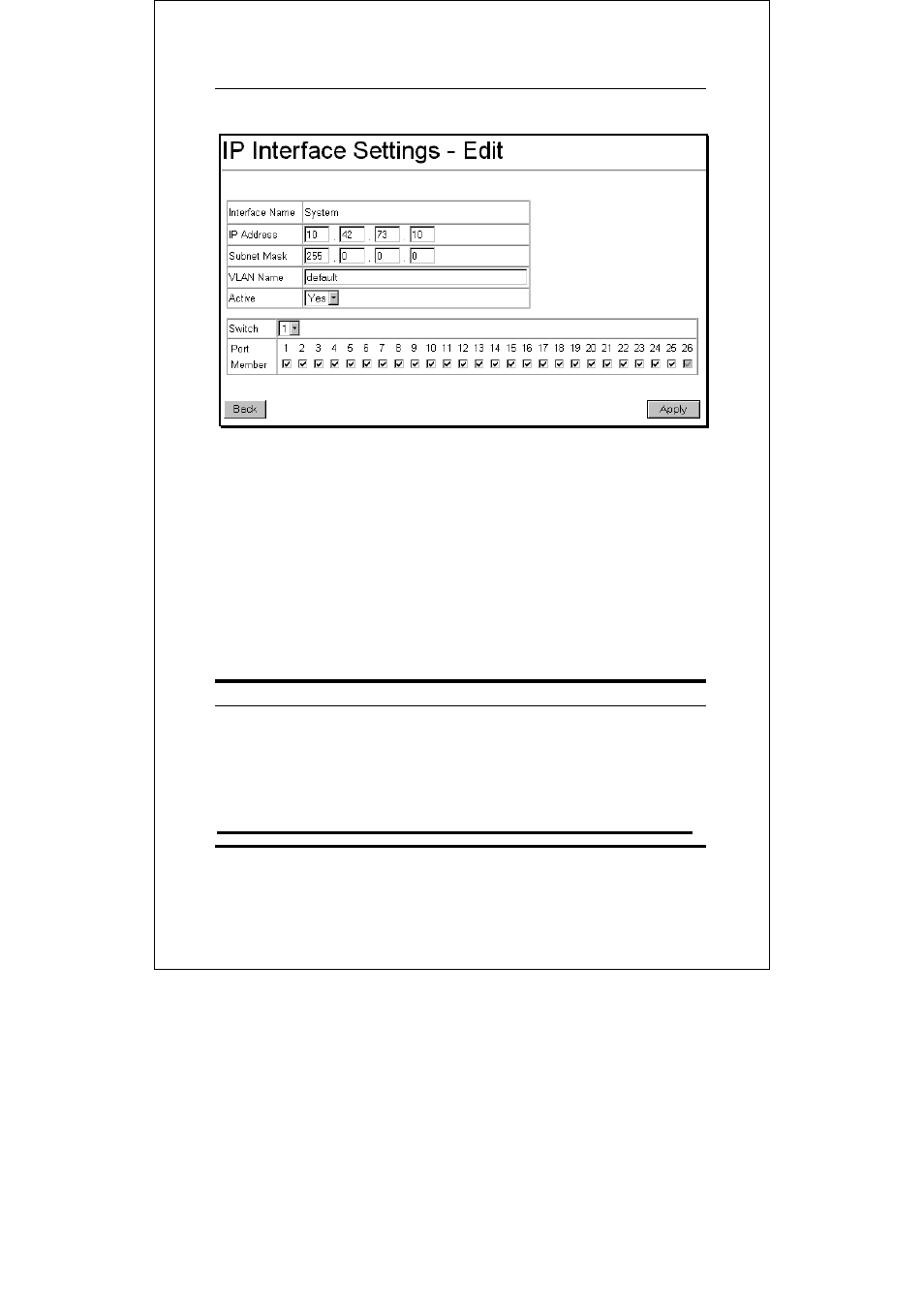

Figure 6-31. Setup IP Interface – Edit
Choose a name for the interface to be added and enter it in the
Interface Name field (if you are editing an IP Interface, the
Interface Name will already be in the top field as seen in the
window above). Enter the interface’s IP address and subnet
mask in the corresponding fields. Pull the Active pull-down
menu to Yes and click Apply to enter to make the IP interface
effective. Use the Save Changes dialog box from the Basic
Setup folder to enter the changes into NV-RAM.
The following fields can be set:
Parameter Description
Interface Name This field displays the name for the
IP interface. The default IP interface
is named “System”.
IP Address This field allows the entry of an IP
address to be assigned to this IP
