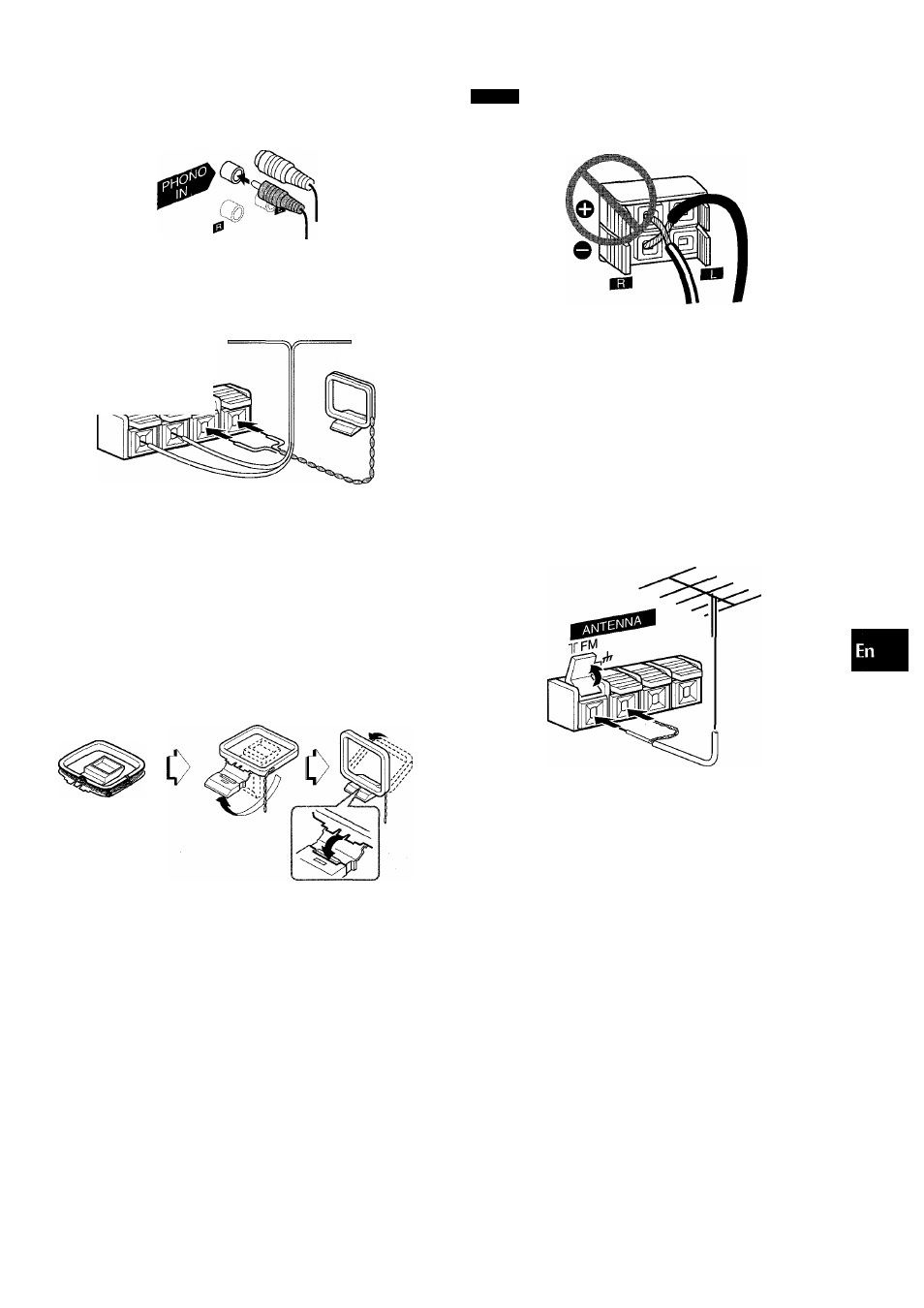

3 Connect the stereo turntable to the main unit.

Connect the red plug to PHONO IN R jack, and the white
plug to PHONO IN L jack.

NOTE

■ Be sure to connect the speaker cords correctly. Improper

connections can cause short circuits in SPEAKERS terminals.

4 Connect the supplied antennas.

Connect the FM antenna to FM 75 Q terminals and the AM
antenna to AM LOOP terminals.

irFM

7jQ-,th__/¿Ji!

FM antenna

AM antenna

5 Connect the AC cord to an AC outlet.

• The game Demo will begin when the AC cord is plugged

into an AC outlet. See page 8 “GAME DEMO” for details.

To position the antennas

FM feeder antenna:
Extend the antenna horizontally in a T-shape and fix its ends to

a wall.
AM loop antenna;

Position to find the best reception.

To stand the AM antenna on a surface

Fix the claw to the slot.

' Do not leave objects generating magnetism, such as credit

cards, near the speakers, as the objects may be damaged.

' Do not bring the FM antenna near metal objects or curtain rails.
■

Do not bring the AM antenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since

noise will be picked up.

■

Do not unwind the AM antenna wire.

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is

recommended.

Connect the outdoor antenna to FM 75 ii terminals.

To connect other optional equipment ^ page 27.
