Chapter 2
Detailed
Setup
Your* Pr*oxima
Before you begin, examine the components of the projector.
Oeakt;ctp
Projector

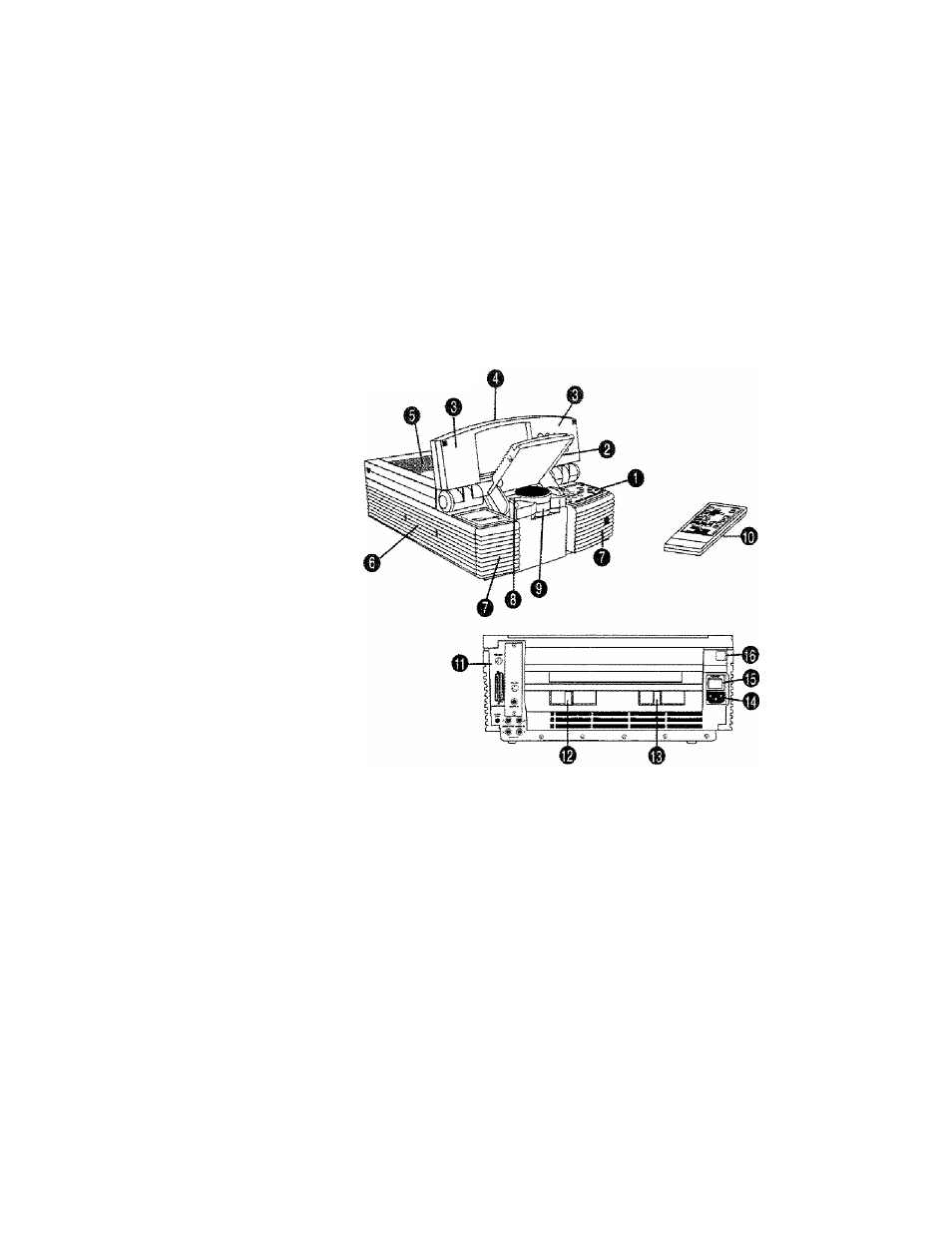

Figure 3
The Proxima Oeekcop Projector and Remote Contro!
(1) Control Panel
(2) Mirror Assembly
(3) Internal Speakers*
(4) Cover Assembly
(5) Top jAir Intake Filter
(6) Recessed Handle
(7) Front Air Intake Filters
(8) Cyclops Lens
* M
p
M DP2800 eni:
(9) Projection Lens Assembly
and Focus Ring
(10) Remote Control
(11) Connector Panel
(12) Lamp Selector
(13) Lamp Chamber Latch
(14) Power Cord Receptacle
(15) AC Power Switch
(16) Circuit Breaker Reset Button
V
User's Guide • 2-i
