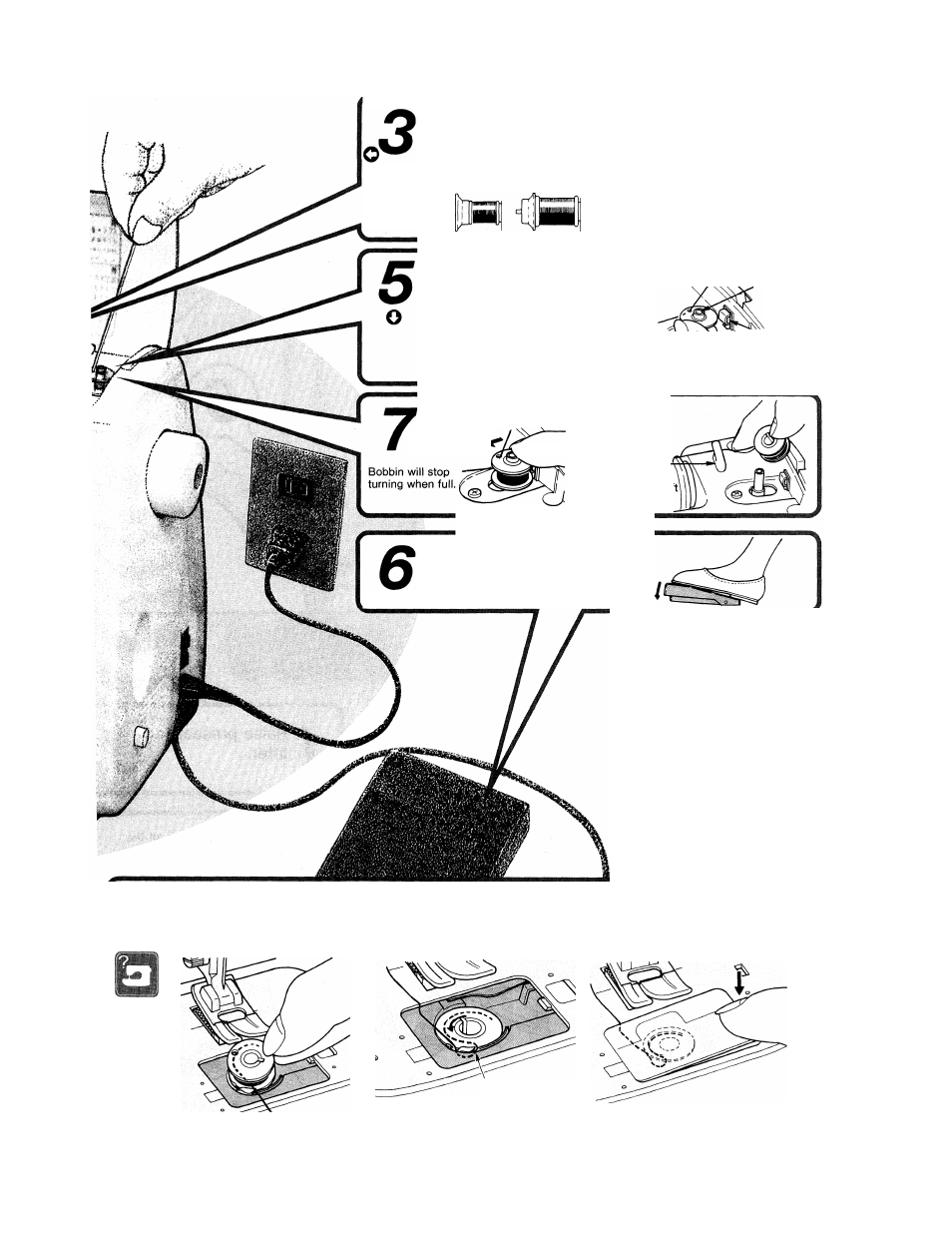

Place thread spool
and spool cap onto
spool pin.
(1) Be sure notch on spool is
on right side.
(2) Use cap to hold spool in
place.
oUhread For small spool For large spool
=c|^^5g|
thread do not deliver thread smoothly with
horizontal spool and spool cap. In this
case use vertical auxiliary spool pin.
Place bobbin on bobbin
Bobbin
winding shaft.
,
winding shaft
Lead thread through one
of the holes in bobbin
from inside out.
^"^\t!^wfnd‘^ng
• Press bobbin against winding regulator.
\
\ regulator
• Hold thread while winding and trim flush with top of bobbin.
Push bobbin back to left.
O
Bobbin thread
cutter
Take bobbin off shal
and cut thread.
Hold thread end, depress
speed controller to wind
Q bobbin.
9
Place bobbin In case
with thread pulling off
A.
as illustrated.
Pull thread into groove of
bobbin case and draw thread
B.
to rear of machine.
C.
Close bobbin case cover.
Threading
groove
NOTE;
ALWAYS USE SINGER BRAND 15 CLASS BOBBINS, OTHER BOBBINS MAY EFFECT PERFORMANCE.
