S I N G E R
Removing and
replacing the
bobbin case

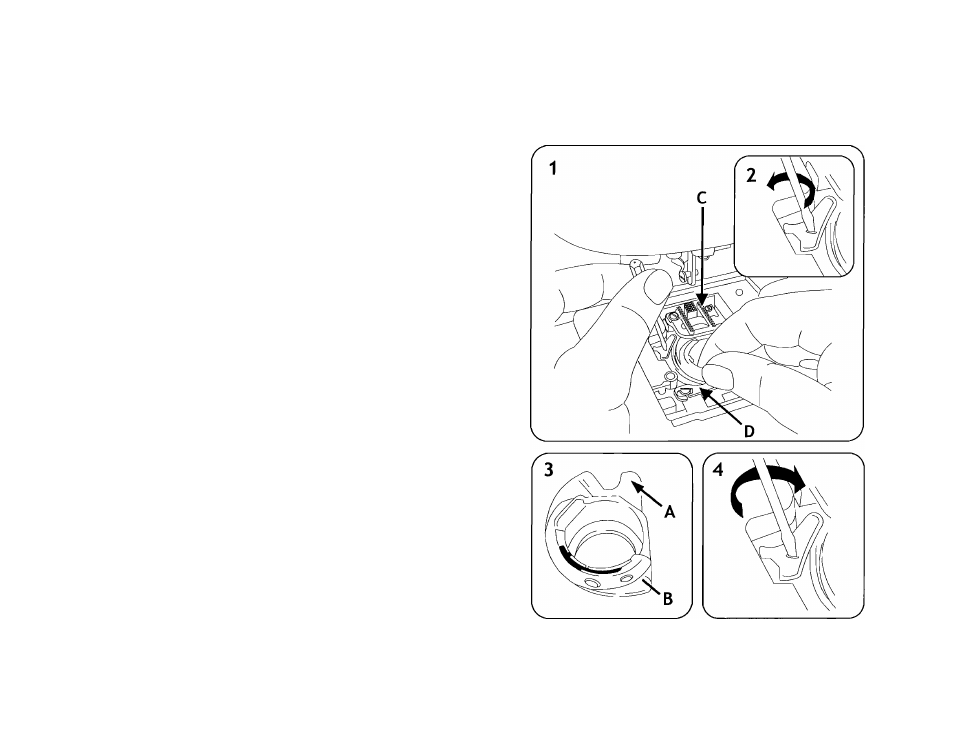

To remove bobbin case
1. Open slide plate and remove bobbin.
2.
With a small screv/driver, turn and take hold of the
bobbin case retaining plate to the rear as far as it will
go (illustration 2).
3. Lift the left side of the bobbin case and slide it out to
the left and out from the machine (illustration 1).
4. Loosen slightly the bobbin case retaining plate until its
initial position (illustration 4).
Replacing the bobbin case
■
1
.
2
.
3.
4.
5.
6
.
With a small screwdriver, turn and take hold of the
bobbin case retaining plate to the rear as far as it will
go (illustration 2).
Draw rim
(A)
of bobbin case under the feed
(C).
Draw rim
(B)
of bobbin case under position plate
(D).
Be sure bobbin case is freely seated on hook race.
Loosen slightly the bobbin case retaining plate until its
initial position (illustration 4).
Replace needle plate.
Insert bobbin and close the slide plate.
112
