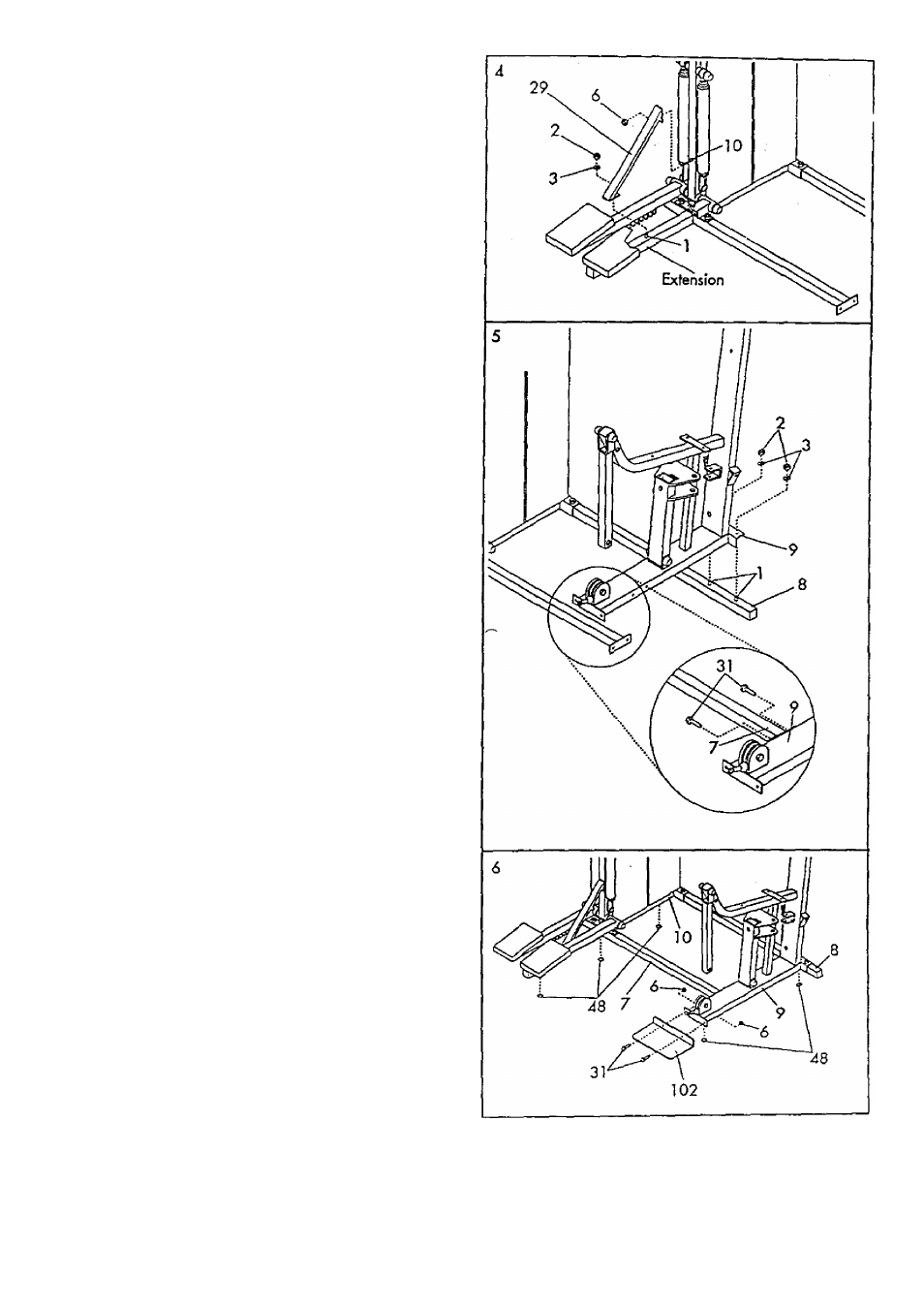

5.
5,iicie the Broce (29) onto the threaded bolt protrud­
ing from the Tower Frame (10). Thread a 3/8"
Nylock Nut (6) onto the threaded bolt. Do not tight­
en the Nylock Nut yet.
Place your foot on the extension and slightly raise
the front of the Tower Frame (10). Align the lower
end of the Brace (29) with the indicated 3/8" x
2 1/2" Carriage Bolt (1). Lower the Tower Frome so
the Brace slides onto the Corriage Bolt. Thread a
3/8* Nut (2) with a 3/8" Locicwasher (3) onto the
Carriage Bolt. Do not tighten the Nut yet.
With the help of a second person, lift the Upright (9)
ond lower it onto the two indicoted 3/8" x 2 1/2'
Corriage Bolts (1) in the Rear Base (8). Thread o
3/8" Nut (2) and 3/8' Locicwasher (3) onto each
Carriage Bolt. Do not tighten the Nuts yet.
Attach the Front Base (7) to the Upright (9) with two
3/8" X 3/4" Bolts (31).
Tighten the 3/8" Nylock Nut (6) attached in assem­
bly step 4, and the seven 3/8" Nuts (2) attached in
assembly steps 3 through 5.
6. Attoch the Foot Plate (102) to the Upright (9) with
two 3/8" X 3/4' Bolts (31) and 3/8' Nylock Nuts
{<5].
With the help of o second person, lift the Front Base
(7). Peel the backing off three Rubber Pads (48).
Press two onto the underside of the Front Bose in the
indicoted locotions, and one onto the underside of
the Upright (9). Lower the Front Bose.
Press two Rubber Pads (48) onto the Reor Bose (8)
in the some manner.
