3. SYMPTOM: THE STEPPER CONSOLE DOES NOT FUNCTION PROPERLY

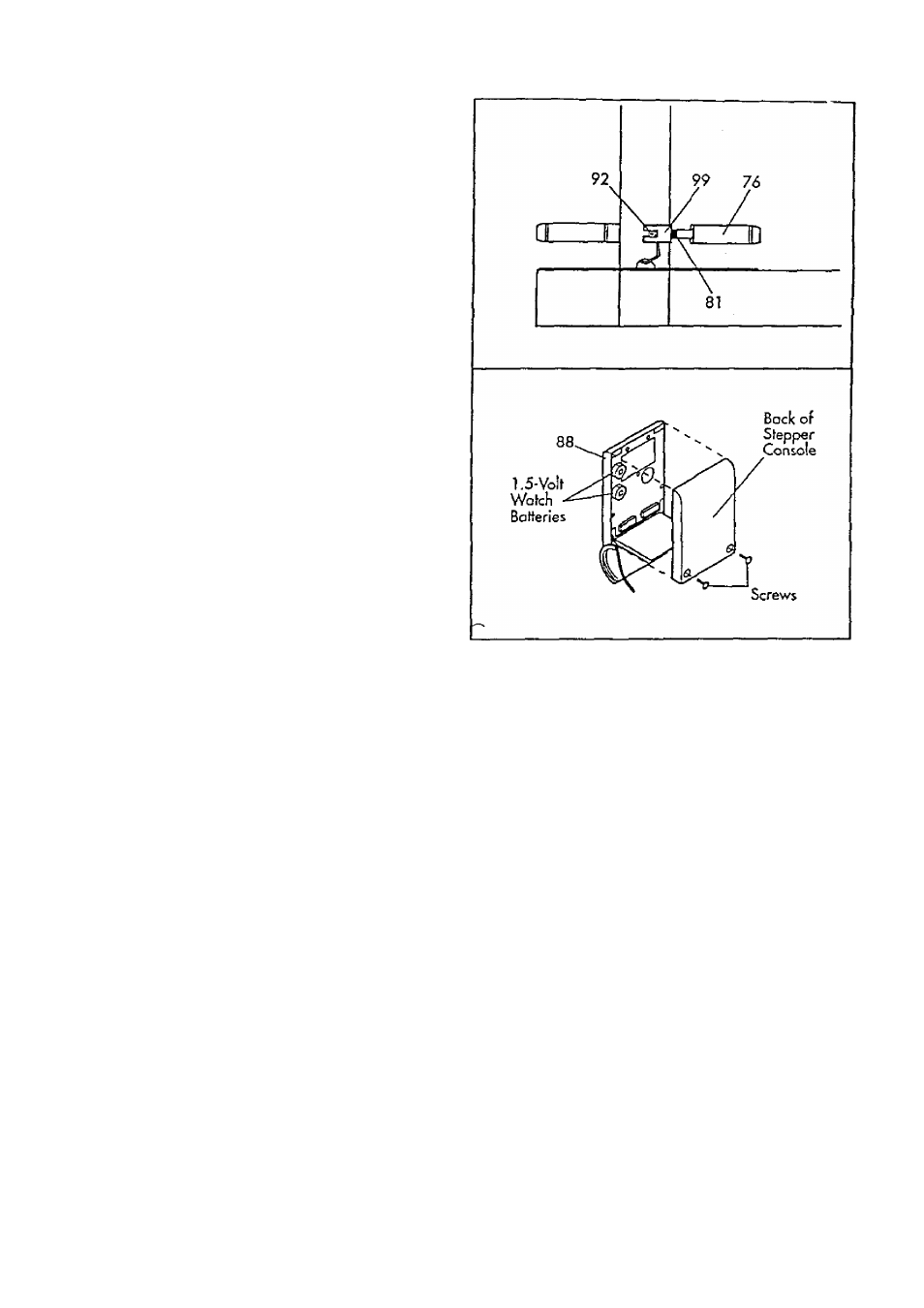

a. As you step, move ifie stepper pedols vertically
at least 8 inches. If your steps are too shallow,
the movement of the stepper pedals will not be
detected. If the stepper console still does not
Function properly, loosen the Reed Switch Screw
(92). Hold down the Right Pedal (76). Adjust the
position of the Reed Switch (99) so there is a
1/8" gap between the Reed Switch ond the
Mognet (81) on the Right Pedal. Tighten the Reed
Switch Screw,
b. If the LCD display becomes dim, the 1.5-volt
'• watch batteries in the Stepper Console (88)
should be replaced. Using a short phillips screw­
driver, remove the two screws attaching the bock
of the Stepper Console. Using the screwdriver,
carehilly push the two batteries out of the battery
clips; be careful to note which woy the batteries
are turned. Insert two new 1.5-volt watch batter­
ies into the bottery clips. Reaftoch the back of the
Stepper Console.
4. SYMPTOM: THE PERSONAL TRAINER COMPUTER DISPLAYS AN ERROR CODE ("EEE")
a. While the weight setting ¡s chonging, the motor will be heard ond the SETS and REPS displays will show a rapidly
rotating indicator. To prevent damoge to the weight system, do not put any pressure on the leg developer, orms
or cables while the weight setting is changing, if the lot bar or rower bor is attached to the high pulley station, rest
it in the rock neor the high pulley station. Wait for the sound of the motor to stop before you continue. If the com­
puter senses pressure on the weight system while the weight setting is chonging, the WEIGHT display will show
on error code ("EEE") for two seconds, and the weight setting will stop chonging. The WEIGHT display will then
show the current weight setting. Make sure that there is no pressure on the leg developer, arms or cables. Press
the increase or decrease button beneoth die WEIGHT display to change the weight setting as desired.
