62
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide Installation
➽ Note: Do not connect these cables to the Ring-In or Ring-Out port on a media
access unit (MAU), unless you use ports 19 and 20 on STS16-20R.
4. Connect the other end of the cable to a Token Ring port on the switch.
5. Label this cable.
6. If the switch is rack-mounted, dress the switch end of the cables through a cable
management bracket, if one is present on your rack.
7. To continue installing the switch, continue with “Applying Power”.

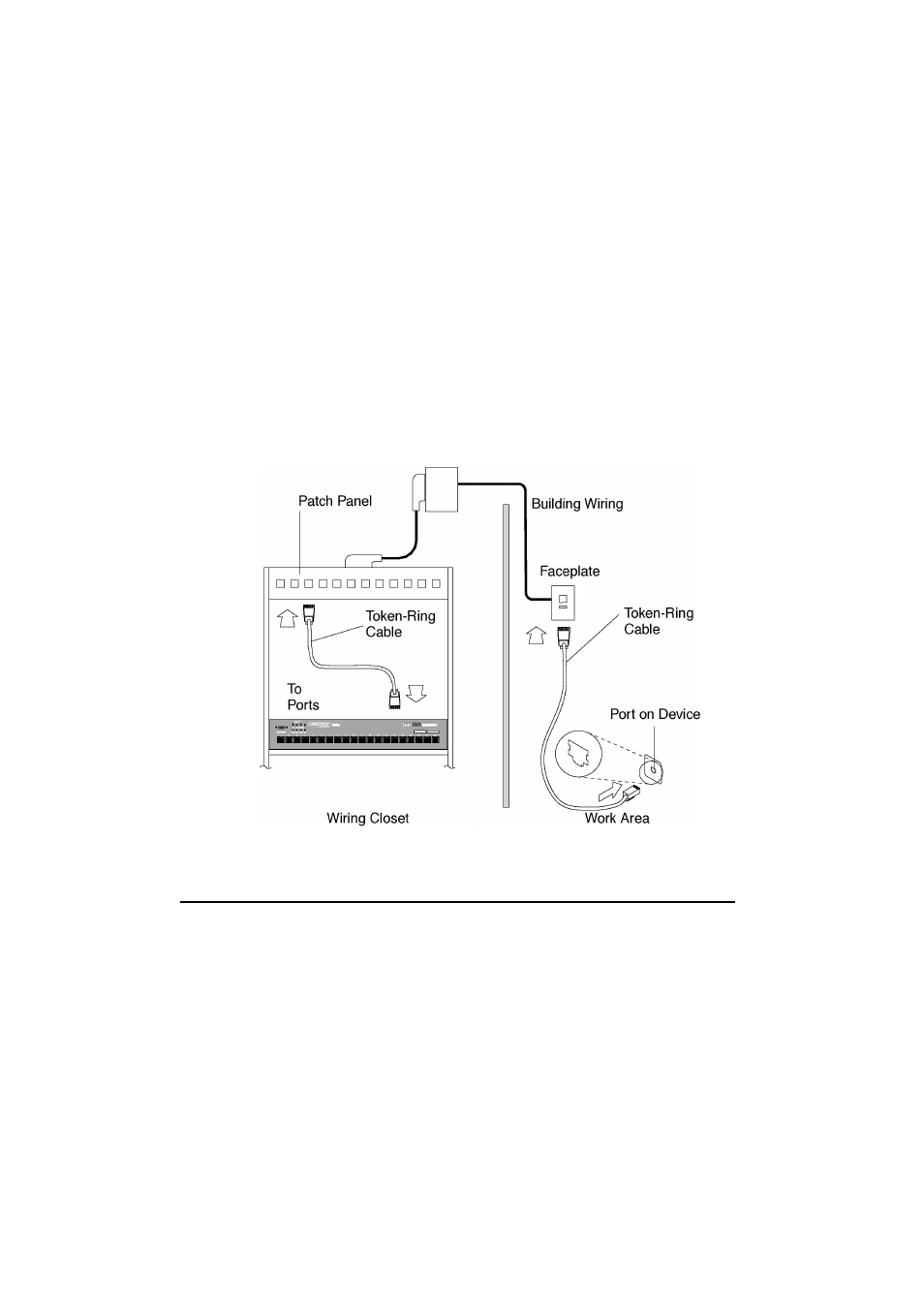

Figure 20. Connecting using Building Wiring
Checking the Installation
Before you apply power to the SmartStack STS16-20D/STS16-20R, inspect the
installation thoroughly. Verify that all cables are installed correctly. Check cable
routing, so a cable will not be damaged or create a safety hazard. Be sure all
equipment is mounted properly and securely.
