133
Switch Configuration SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide

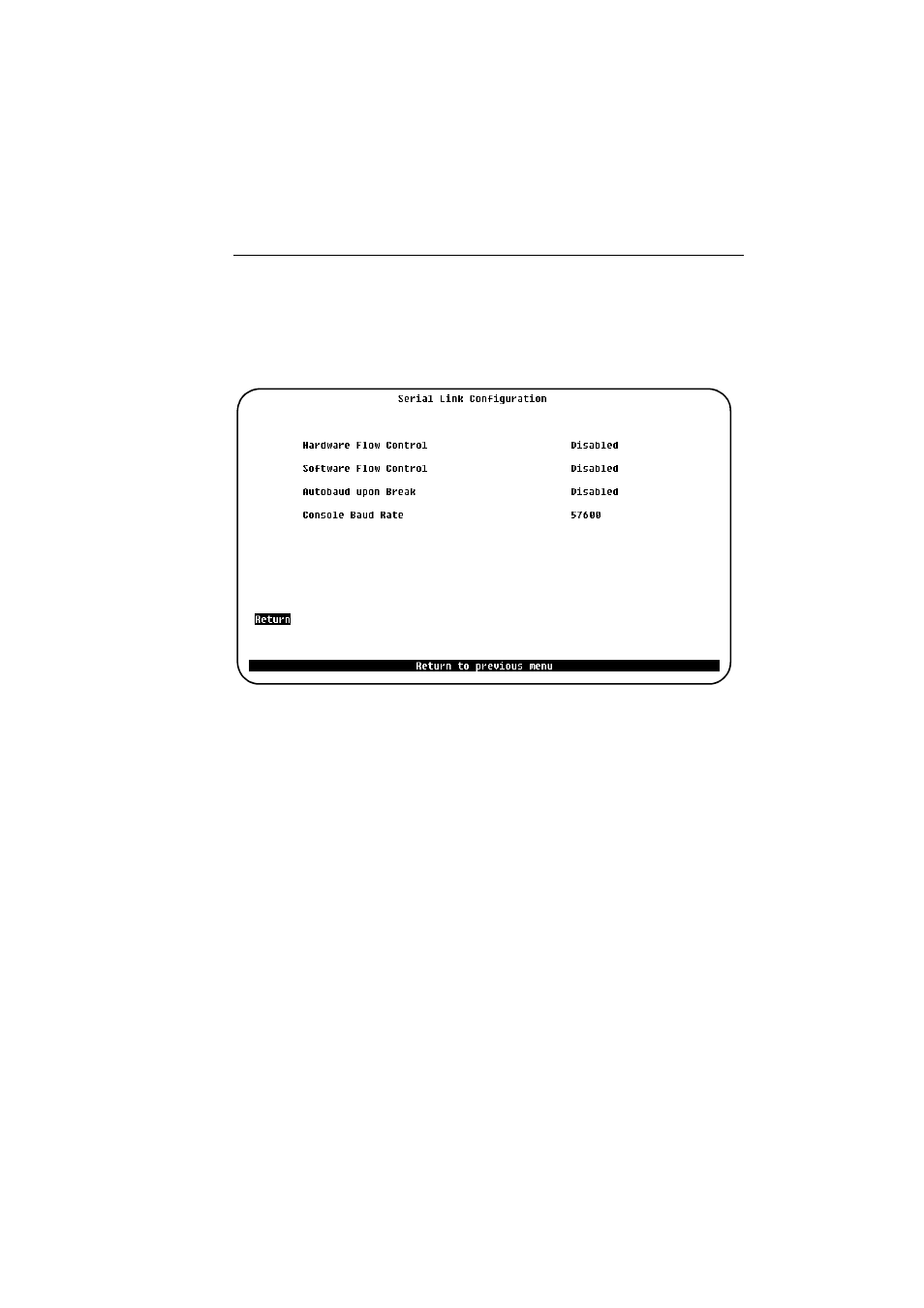

Serial Link Configuration Screen
Use the Serial Link Configuration screen to configure a SmartStack STS16-20D/
STS16-20R when using a modem to create a console session.
To open this screen from the main menu, select Configuration
→ → → →
Console
Configuration . Then select Serial Link Configuration.
Hardware Flow Control
Enables or disables RTS/CTS handshaking.
Default: Disabled
Software Flow Control
Enables the XON and XOFF characters, which are 11 and 13 hexadecimal,
respectively.
Default: Disabled
Autobaud Upon Break
Indicates whether the baud rate is reset when a Break key sequence (pressing
ENTER rapidly for five seconds) is sent or received. The default is Disabled. When
set to Enabled, a baud rate change can be accomplished by changing the baud rate
of the terminal emulator, disconnecting and reconnecting the TIA/EIA-232 cable,
and then pressing
ENTER until a screen appears.
Console Baud Rate
The baud rate of the TIA/EIA-232 port. Acceptable baud rates for the console are
