Switch Configuration SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
For each CRF of translational links connected to the same logical Ethernet segment,
a connection attribute must be assigned:
•
Primary connection—for a main connection to the Ethernet Cloud (default
value for each CRF). This connection is always forwarding if active.
•
Secondary1 —for a backup connection to the logical Ethernet segment. This
connection is always blocking if the primary is active.
•
Secondary2 —for a second backup connection to the logical Ethernet segment.
This connection is always blocking if Primary or Secondary1 are active.
Each CRF of the translational links connected to the same logical Ethernet segment
must have a different connection attribute.

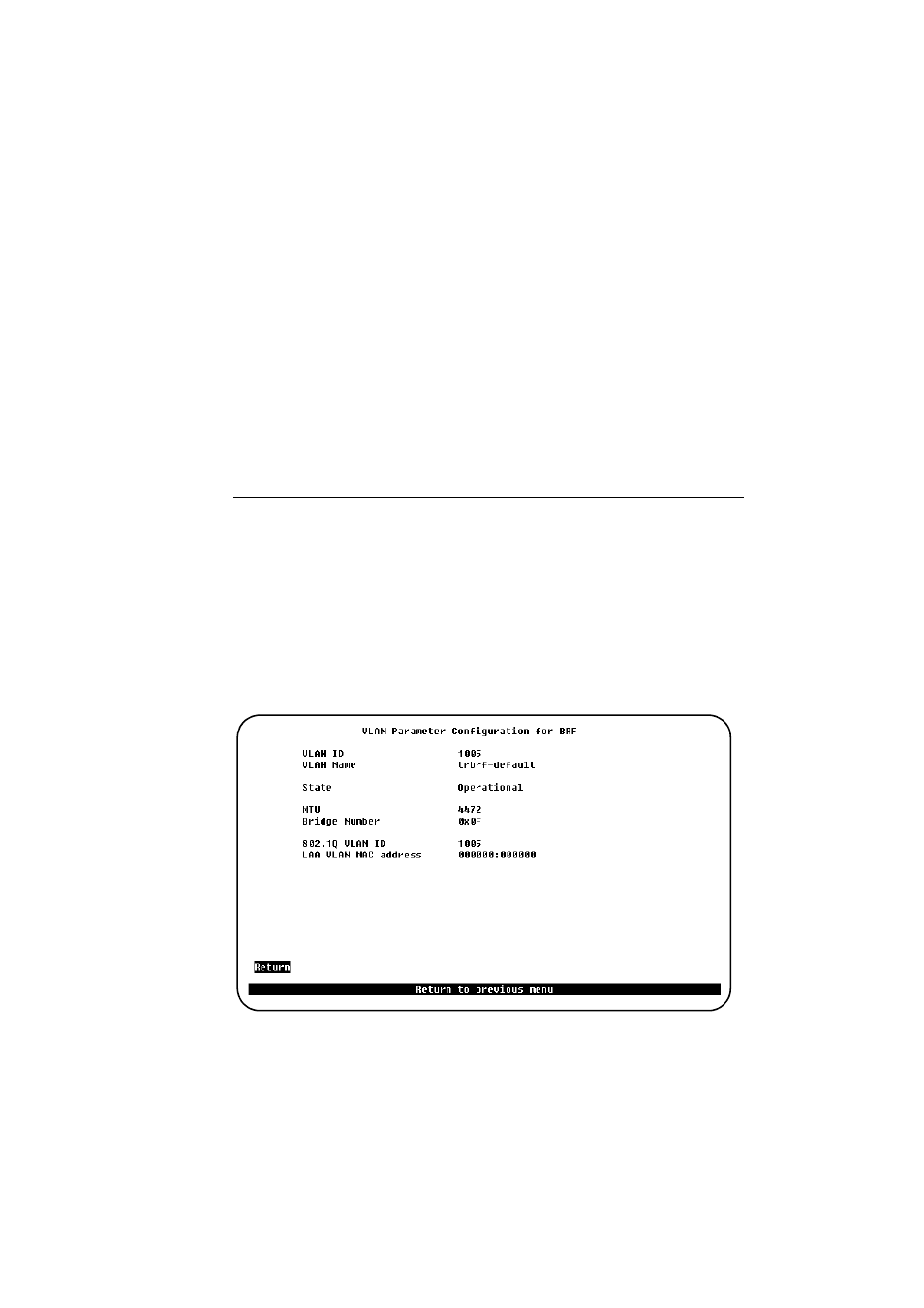

VLAN Parameter Configuration for BRF Screen
To open this screen, do the following:
1. From the main menu, select Configuration
→ → → →
VLAN Configuration
→ → → →
VLAN Configuration .
2. Select View..., Add... or Change...
3. When prompted, enter the VLAN ID for the BRF.
Use this screen to add or change a BRF. Note that the trbrf-default cannot be
deleted.
VLAN ID
Numeric ID of the BRF. Possible values are 1 through 1005. Values 1002 through
