89
Switch Configuration SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
View...
Zooms in a VLAN.
Add...
Prompts for a new ID and brings up the VLAN Parameter Configuration screen.
Change...
Prompts for a numeric ID of a BRF or CRF to change and brings up the VLAN
Parameter Configuration screen.
Delete
Lets you delete a BRF or CRF. You cannot delete a BRF if there are CRFs assigned
to it, or a CRF if there are ports assigned to it.

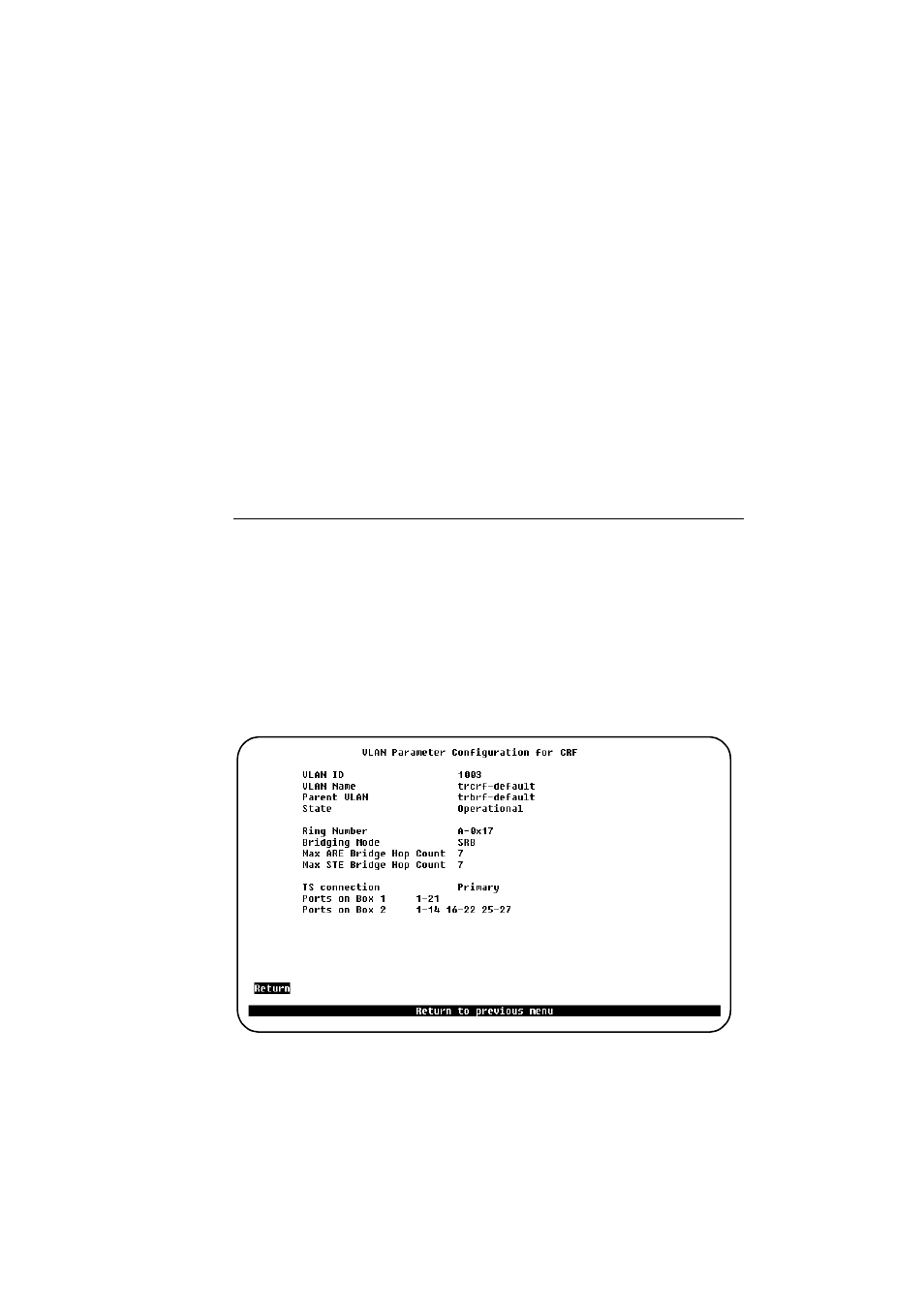

VLAN Parameter Configuration for CRF Screen
To open this screen, do the following:
1. From the main menu, select Configuration
→ → → →
VLAN Configuration
→ → → →
VLAN Configuration .
2. Select View..., Add..., or Change...
3. When prompted, enter the VLAN ID for the CRF.
Use this screen to add or change a CRF. Note that the trcrf-default cannot be
deleted. Also, the trcrf-default cannot be assigned to other BRFs.
The following information is displayed on this screen:
