87
Switch Configuration SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
•
IP. You may give each domain an IP address, subnet mask, and gateway
address definition.
•
Address filters. Domains have no effect on address filters. For example,
suppose you create two domains: one containing ports 1–8 and the other ports
9–16. If you add an address filter to ports 7, 8, 9, and 10, the filter will work
properly even though it applies to ports in other domains.
•
CrossLink. All ports in a single CrossLink must belong to the same CRF.
Therefore, the console software prevents you from defining a CrossLink
connection that includes ports in different CRFs. It also prevents you from
assigning the ports in an existing CrossLink to different CRFs. On SmartStack
STS16-20D only ports 17 to 20 allow CrossLink configuration.

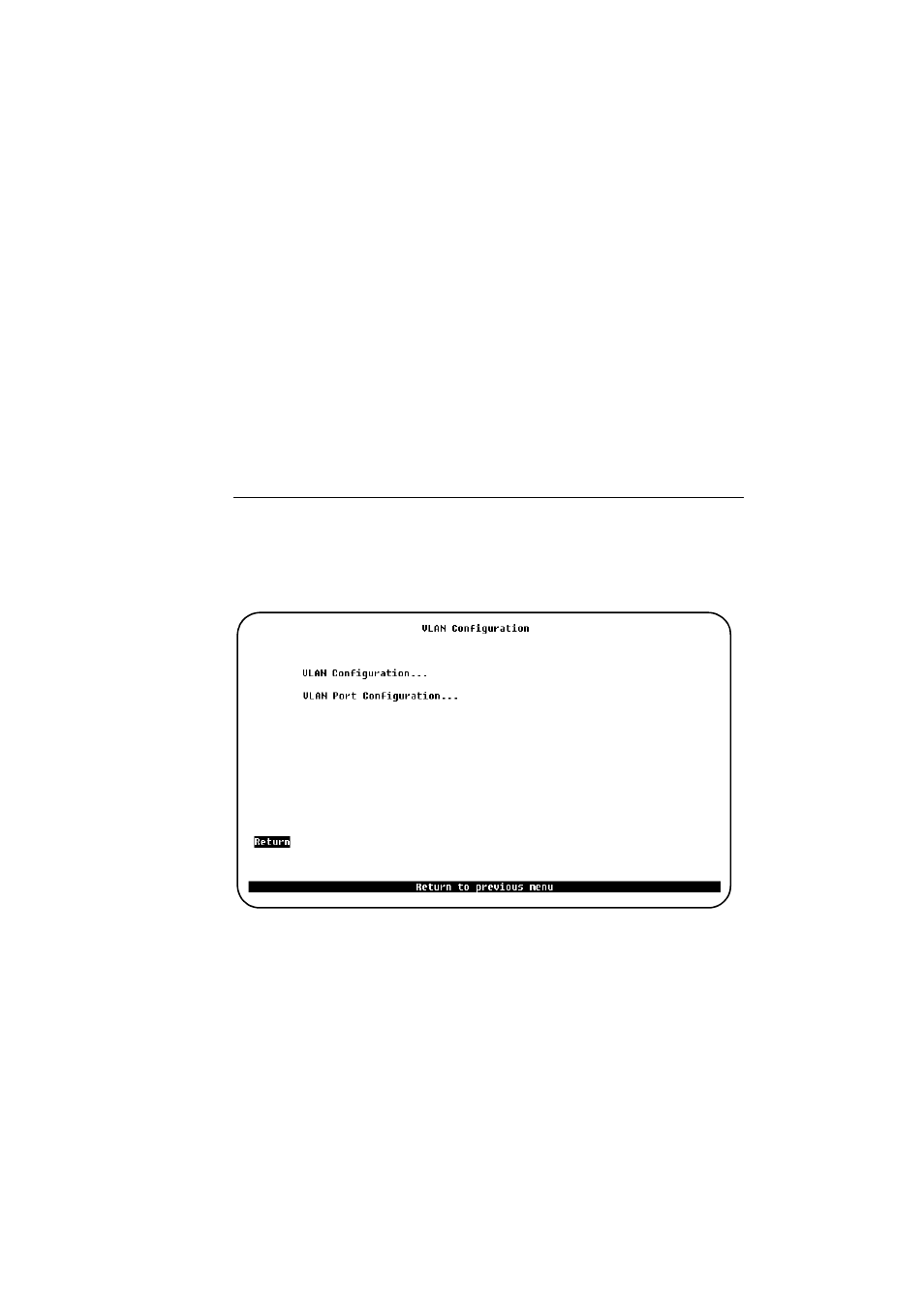

VLAN Configuration Menu
To open this screen from the main menu, select Configuration
→ → → →
VLAN
Configuration . See the section “VLAN Support” on page 31 for a discussion of
VLANs.
More information on the various submenus follows.
