View Port Filters Screen
To open this screen, do the following:
1. From the main menu, select Configuration
→ → → →
Filters & Port Security .
2. Select View Port Filters...
3. You will be prompted for a port number. Enter a Token-Ring port number, that
is, 1–20.

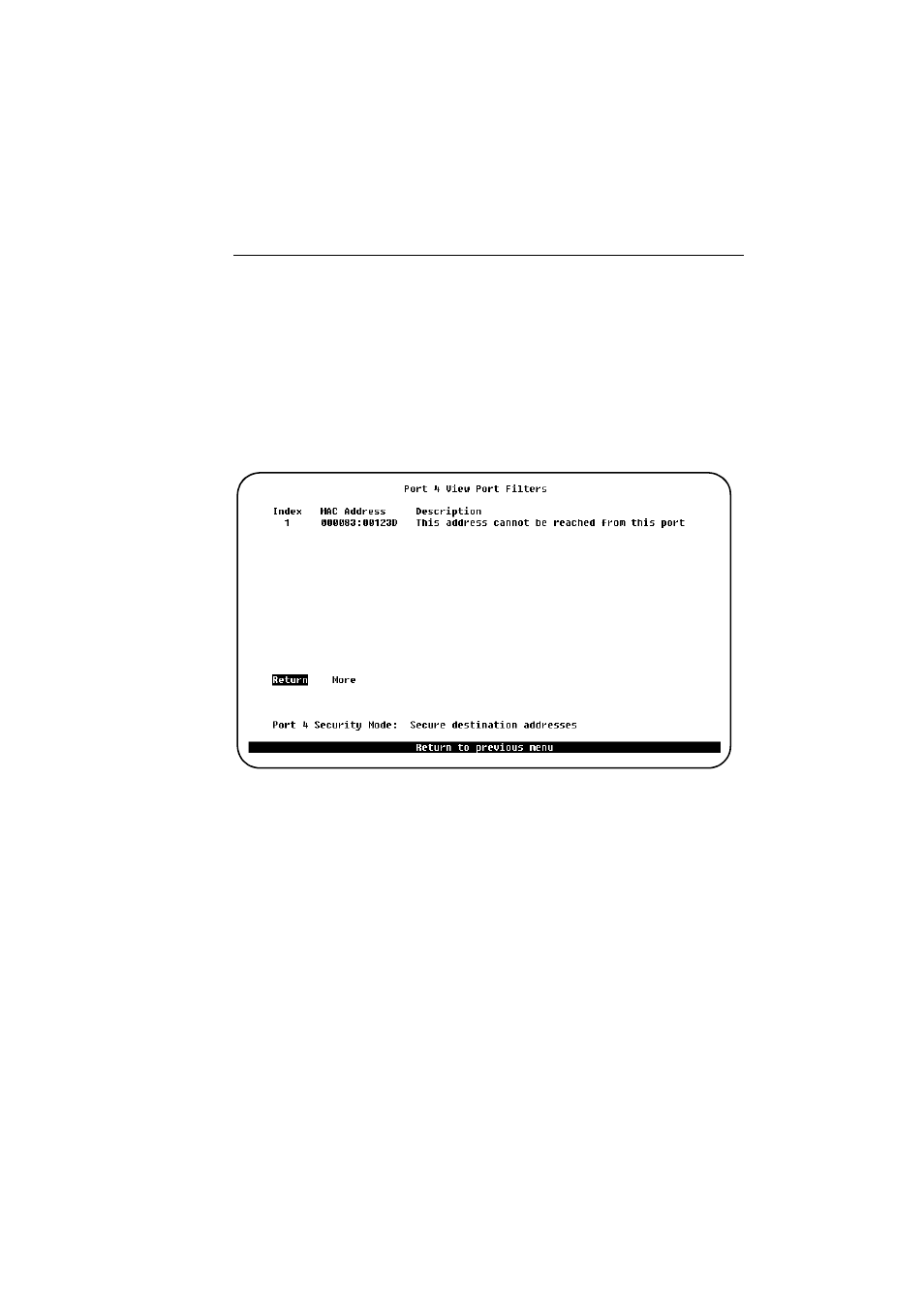

The following screen displays an example of a port using the MAC address filters
and port security.
Index
Numerical order of entries.
MAC Address
The specific MAC address the filter is applied to. See a detailed description of
MAC Addresses on page 81.
Description
List of descriptions of security modes as assigned at Configure Port Security
Mode
menu:
•
This address is blocked
•
This address is allowed to talk to ports (as specified)
•
This address cannot be reached from this port
